flange diaphragm liquid filled pressure gauge
- 1000 Piece / Pieces per Month
- Shanghai Ningbo Tianjin Guangzhou Qingdao Qinhuangdao Dalian Shenzhen Zhoushan Yingkou Erlianhaoteshi Huoerguosi Dandong Alashan
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | Yunyi | Model Number: | YTP-100 |
Packaging Details
diaphragm liquid filled pressure gauge
Standard packing(or according to the customer request)
Product Description

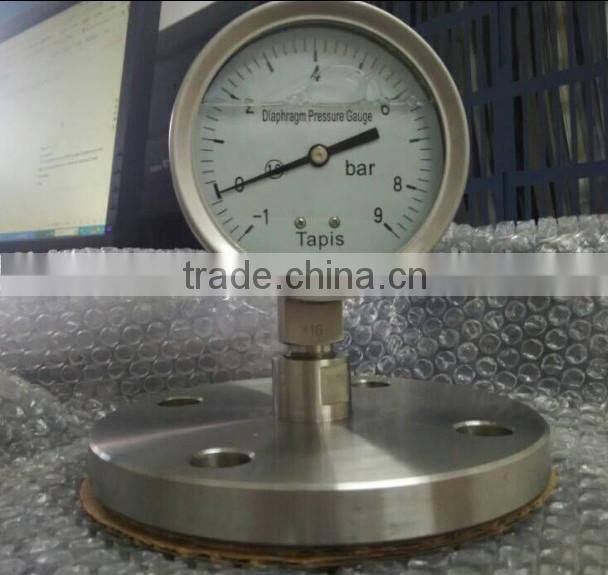

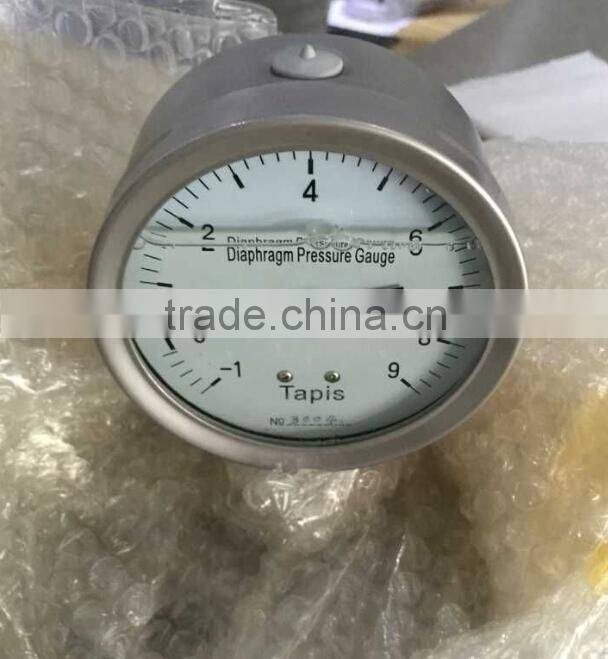

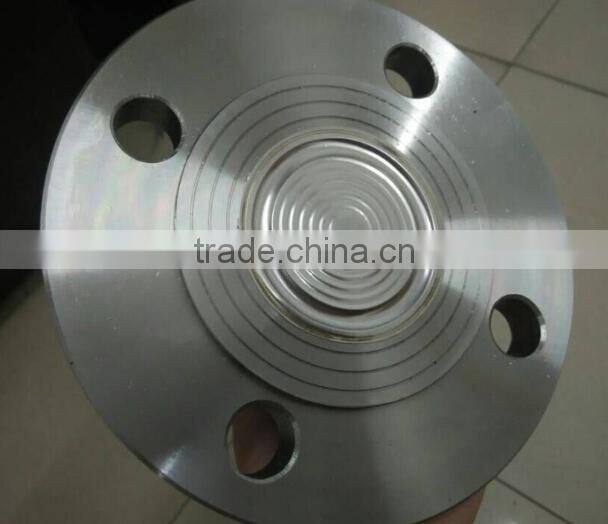

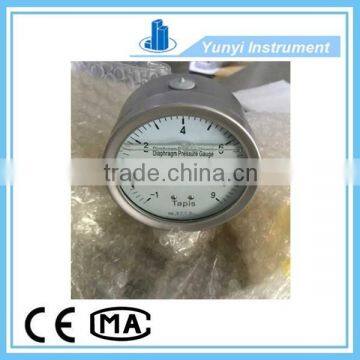

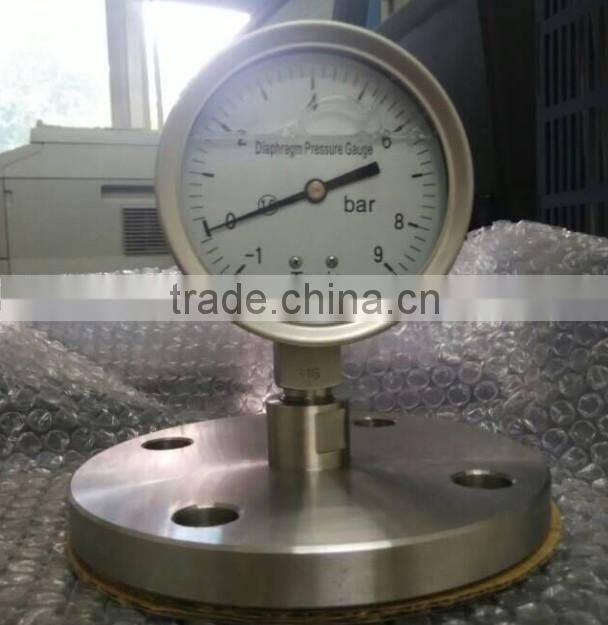

flange diaphragm liquid filled pressure gauge
Features of diaphragm liquid filled pressure gauge :
All the major parts of All Stainless Steel Pressure Gauge, including case, measuring system and drive mechanism, are made of high anti-corrosive stainless steel, which makes the gauge perfectly applicable to chemical industry as well as some other industries such as petroleum, synthetic fiber, dyeing and caustic soda production, etc.
Specifications of diaphragm liquid filled pressure gauge :
1.Type:YTP
2.Accuracy:Normal Grade 2.5 or 1.6
3.Diameter of outside: 60mm=2.5'',100mm=4'',150mm=6''.Otherwise,we can do special size you need.
4.Measure range:From -0.1 to 70 Mpa
5.Installation:Bottom connection, Back connection or Back connection with border.
6.Thread:BSP,NPT,BS,UNand other special specification
7.Temperature:-10~70°C
8.Shockproof if add Glycerine or Silicone oil
9.Compective price and durable in use
10.Certification:ISO9001:2008
11.Dial plate:Single and dual scale (psi, kpa, mpa, bar, kg/cm2) available
Material of diaphragm liquid filled pressure gauge :
Part | Case | Bourdon Tube | Movemnet | Thread | Point | Window |
Material | SUS304 stainless steel | SUS316L stainless steel | SUS316L stainless steel | SUS316L stianless steel |
Aluminum | PC lens, glass lens or acrylic lens |
Attention:In the measurement instruments, shall not exceed the load measurement limit 3/4
