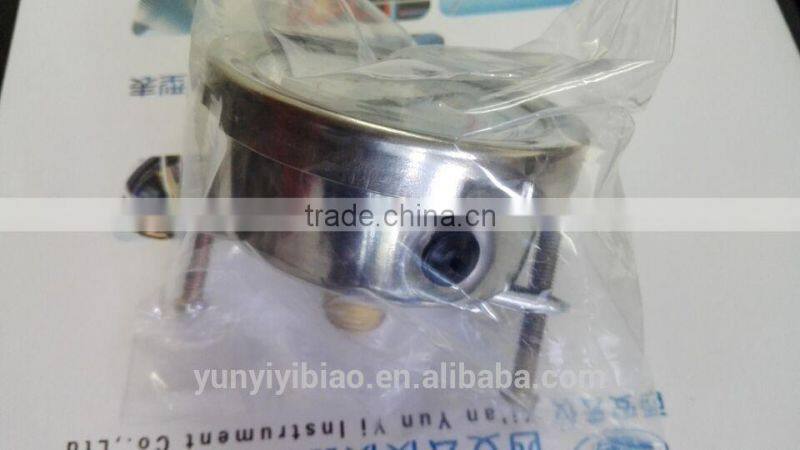

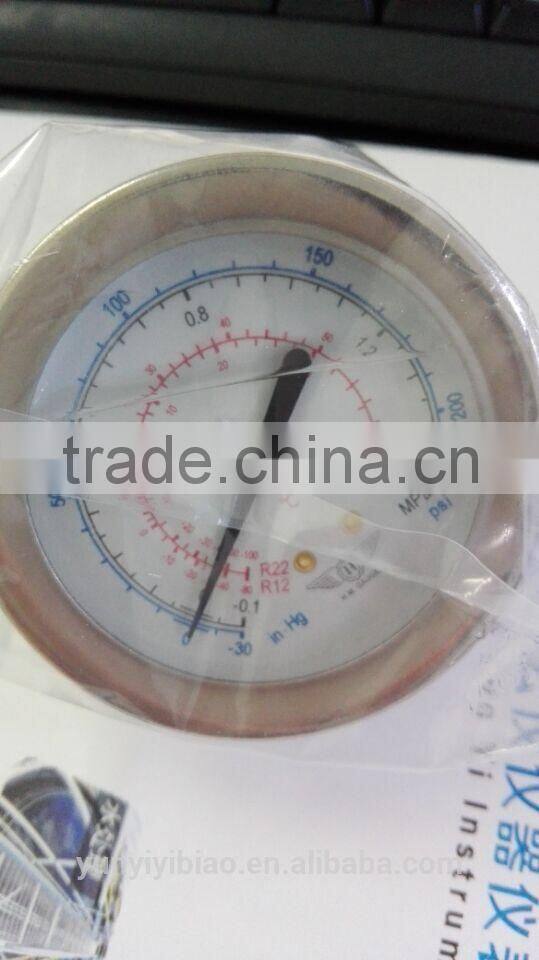

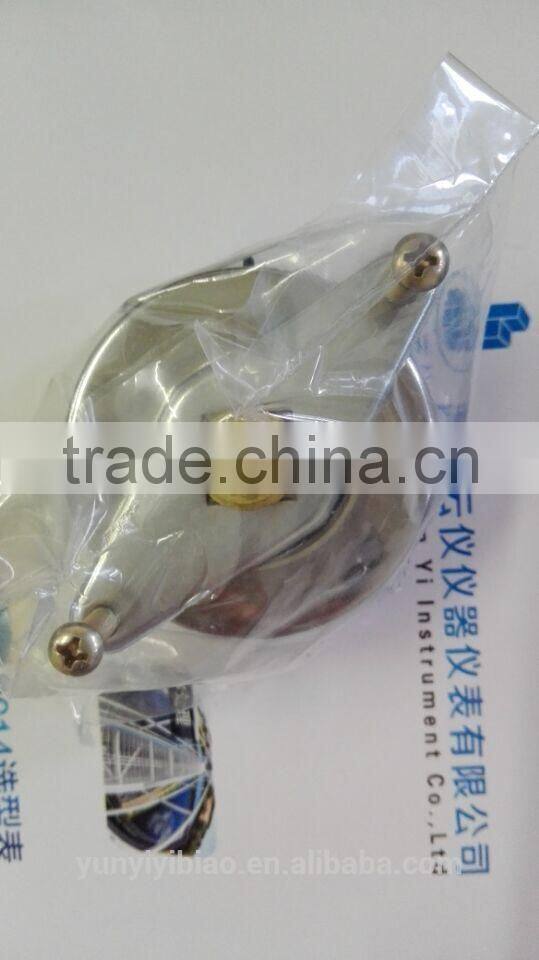

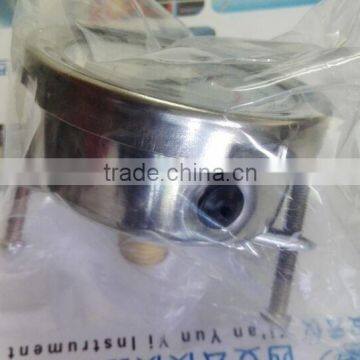

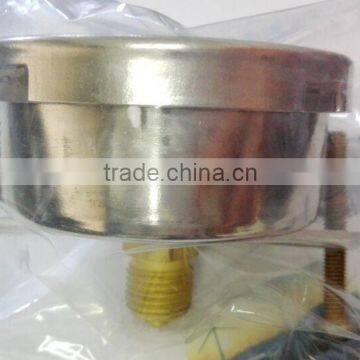

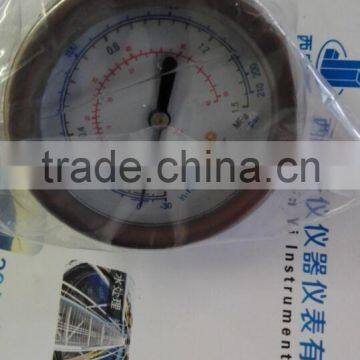

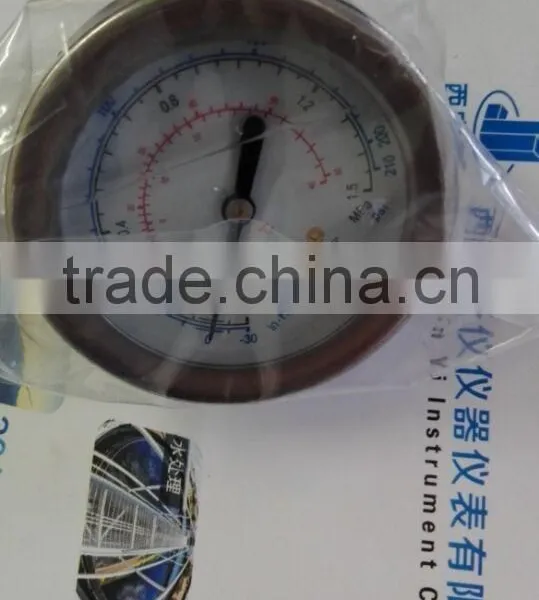

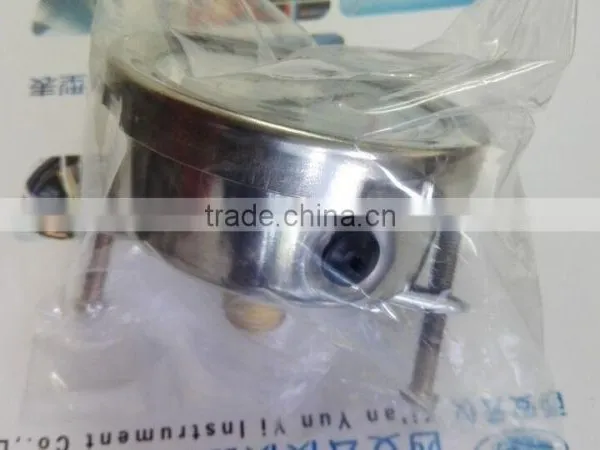

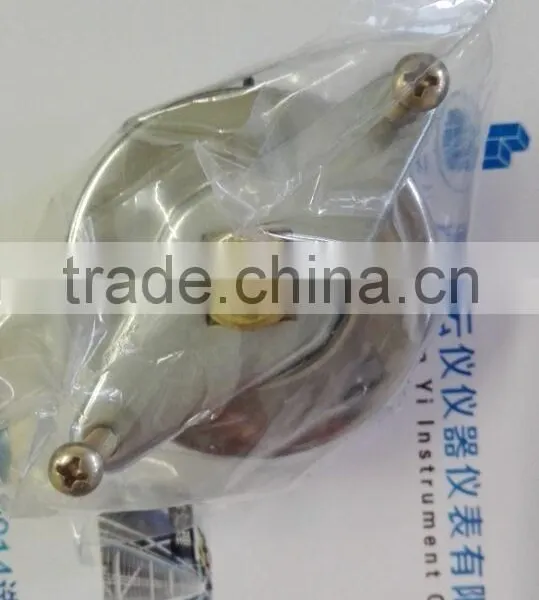

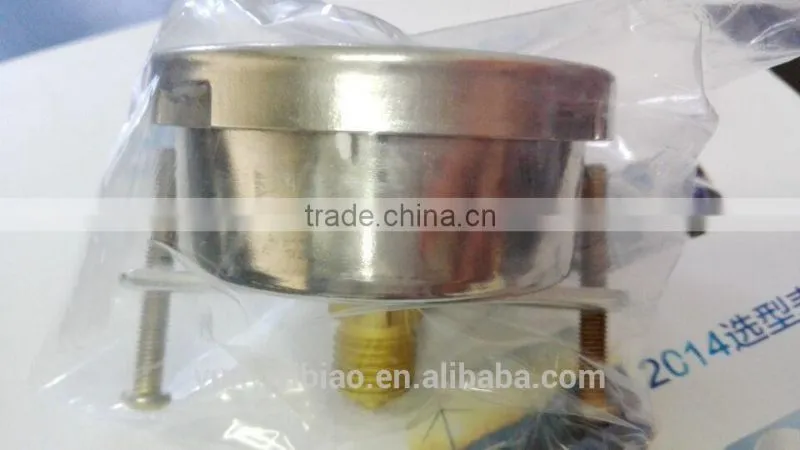

stainless steel Refrigerant gauge
Technical data of stainless steel Refrigerant gauge :
Meter diameter |
50mm(2inch) |
installing form |
Radial Install |
pressure range |
low pressure: 0~10Kg ,0~12Kg,0~15Kg -1~0~ 10Kg ,-1~0~ 15Kg high pressure: 0~35kg ,0~38kg ,0~40kg -1~0~35 Kg,-1~0~40 Kg |
joint thread |
50mm(2inch):M14*1.5orG1/4or1/4PT or7/16UNF 7/16UNF |
shell material |
Molded case, carbon steel of the lacquer that bake, iron shell plastic spraying and chrome plated iron shell, cast aluminum Stainless steel 1Cr18Ni9Ti,SUS304 |
level of protection |
IP64or as customer's requirement |
pointer material |
With molding with aluminium |
accuracy |
Under the condition of the meter : 50mm(2inch):2.5%f.s.or 1.6%f.s. 63mm(2.5inch):2.5%f.s.or 1.6%f.s. |
Sensitive element material |
Spring tube structure sensitive element material: Bronze, phosphor copper, stainless steel SUS304,SUS316,SUS316L |
||
machine core material |
Copper alloy, stainless steel SUS316 |
condition |
According to the instrument measurement medium, installation requirements |
joint material |
Copper alloy, stainless steel SUS316 |
||
scale base |
kgf/cm2,Mpa,Bar,kpa,Psi,cmHg, mmHg |
recognized |
GB1226-2000/ASME B40.1 |
dial material |
aluminium |
attached |
Certificate of approval, the directions for use |
Shield ring material |
Carbon steel of the lacquer that bake, shell plating chromium iron, stainless steel 1Cr18Ni9Ti(SUS304) |
relative humidity |
10%~80%(RH) |
mirrir material |
The force that press a gram, PC, glass, toughened glass, safety glass |
Filling medium (optional this spring tube structure only) |
Silicone oil (low viscosity) : general use -30~50°C Silicone oil (high viscosity) : high temperature use -20~60°C Glycerin (glycerin) : -10~50°C |
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this stainless steel Refrigerant gauge , please visit the website
