Home > Instruments & Meters > Meter for Liquid & Gas > Pressure Gauge > YS Piston Type Pressure Gauge

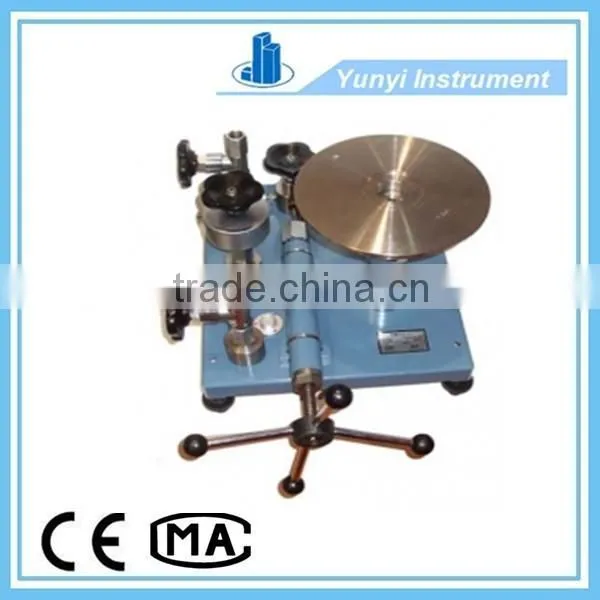

YS Piston Type Pressure Gauge

Name: YS Piston Type Pressure Gauge
Brand: Yunyi
SKU: 109088105

YS Piston Type Pressure Gauge thumbnail-1

US$ 1,000 - 2,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

Shaanxi, China

Brand Name:

Yunyi

Model Number:

KY series

Contact Supplier Request Quote Chat Now

Xi'an Yunyi Instrument Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

beijing shanghai tianijin shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shaanxi, China

Brand Name Yunyi

Model Number KY series

KY piston type pressure gauge

Description of KY piston type pressure gauge :

Piston type pressure gauge is produced on the basis of the principle of PASCAL's law and hydrostatic equilibrium of a kind of high accuracy, high repeatability and high reliability of standard pressure measuring instruments. The piston type pressure gauge is often referred to as "the piston pressure gauge and pressure gauge, also have called the pressure balance, it is mainly used for measuring room, laboratory and production or scientific experiment link used as a benchmark pressure device, will also have the piston type pressure gauge used in high reliability monitoring link directly to the local other vote monitoring instrument.

Performance feature of KY piston type pressure gauge :

1. The pistons and piston cylinder adopt high strength, high hardness, and low temperature linear expansion coefficient of the carbide tungsten carbide materials carefully made, grinding, wide working temperature stable performance of 20 + / - 5 ℃.

2. Load low center of gravity, weight through the hanging basket directly on the piston, piston smooth operation, little pressure fluctuation, the accurate value.

3. More than 25 mpa pressure transfer medium using viscosity small sebacate diisooctyl, thus ensuring pressure gauge with high sensitivity.

4. The pressure gauge used farmar all adopt the non-magnetic stainless steel making

5. The pistons work position with the displacement sensor monitoring, piston stroke up and down to + / - 1.5 mm, instrument display has the advantages of quick, eye-catching, accurate.

6. Wide range, the lower limit of 1 mpa, the fundamental error of plus or minus 0.02% or + / - 0.05%, a KY100 type pressure gauge, is worth at present domestic measurement limit 6, 60, 100 mpa three pressure gauge is used.

7. Pressure regulating light energy, even in the 100 mpa pressure can also be at ease.

Piston pressure gauge parameters

type				YS-6	YS-60		YS-250	YS-600
parameters		entity unit		measurement range
				0.04~0.6MPa	0.1~6MPa		0.5~25MPa	1~60MPa
Nominal limit		MPa		0.6	6		25	60
Nominal floor		MPa		0.04	0.1		0.5	1
upper range limit		MPa		0.6	6		60	60
lower limit		MPa		0.04	0.1		0.5	1
The piston area of nominal		CM 2		1	1		0.5	0.1
The chassis and the piston	pressure		MPa	0.04	0.5		0.5	1
	pressure		MPa	0.001:0.05	0.1;0.5		0.5:2.5	1;5
	quantity		piece	6;10	4;11		4;9	4;11
connector				M20 × 1.5	M20×1.5		M20 × 1.5	M20×1.5
weight		Kg		35	65		75	95
working liquid				Transformer oil or a combination of transformer oil and kerosene oil kinematic viscosity when 20 ℃ 9 ~ 12 mm pool acid value is not greater than 0.05 mg KOH/g		Sebacate kinematic viscosity during 20 ~ 25 mm pool, acid value is not greater than 0.05 mg KOH/g
