Place of Origin Shaanxi, China
Brand Name Yunyi
Model Number YU-6/60/600

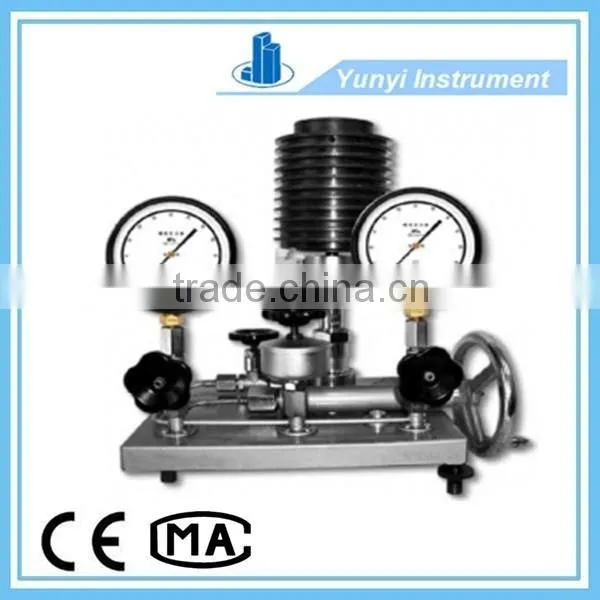

YU series piston type air compressor

Description of YU series piston type air compressor:

YU series piston type air compressor introduction: piston pressure gauge is a standard instrument, mainly is suitable for the precisio pressure gauge, check the accuracy of less than 0.25 on the Richter scale can be used to check the low level of piston manometer, all kinds of pressure gauges or other kinds of pressure measuring instruments used in industry.Pressure gauge is suitable for the ambient temperature is 20 + / - 5 ℃, relative humidity is not more than 80% under the working conditions.

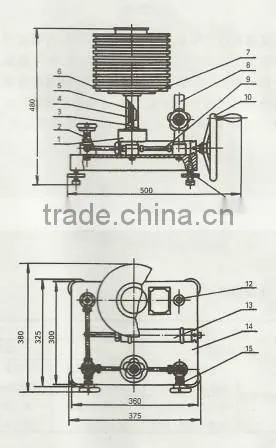

Structure principle of YU series piston type air compressor:

Measuring instrument of pressure gauge is the application of static pressure balance principle: namely the piston itself and in the special weight weight (G) on the piston effect on the piston area (S) produced by the pressure (P) and hydraulic pressure vessel pressure generated by the phase equilibrium, to determine the pressure of checking instrument size: P = G/S In type G = mg (m: method of code quality, G: acceleration of gravity) products factory use standard gravitational acceleration G value. When users are using g value shall be determined according to the local acceleration of gravity, and according to the calculated value correction weight g weight. Pressure gauge is by checking pump (pressure system) and the piston part (pressure) measurement system of two parts.

model



      pressure range

Farmar configuration

              remark

YU-6

0.04-0.6Mpa

0.01MPa  6

0.05MPa  10

Farmar can be made according to customer's special requirements

YU-60

0.1-6Mpa

0.1MPa 4

0.5MPa  11

YU-600

1-60Mpa

1MPa  4

5MPa  11





YU series piston type air compressorYU series piston type air compressor
