Specifications
YK-150F Drilling Mud Pump Pressure GaugeCE approved
Professional manufacturer

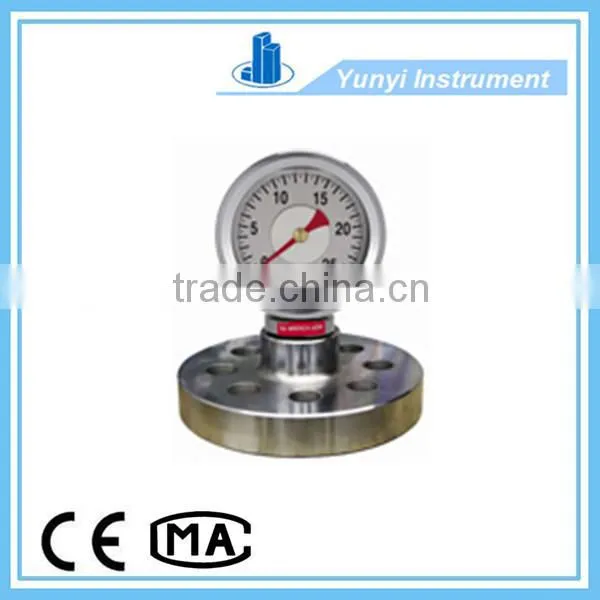

YK-150F Drilling Mud Pump Pressure Gauge
Description of YK-150F Drilling Mud Pump Pressure Gauge:
YK series shock-proof pressure gauge is mainly used to measure the pressure of the intense pulse, instantaneous pressure, and igh viscosity, particle size, easy to crystallization, easy solidified mediums. And widely used in petroleum, coal, geology, chemical industry, machinery and other industries, also suitable for measuring field static pressure.
Features of mud pump pressure gauge:
1. 6 inch dial and 8 inch dial protected by impact-resistant, clear polymer lens provides
fast, accurate readings at a glance.
2. Liquid filled gauge minimizes vibration and wear to gauge movement
3. Replaceable diaphragm rubber and field-repairable diaphragm make on-site service easy.
4. Rugged design enables accurate pressure measurements on cementing, acidizing, fracturing, and choke manifolds.
Specifications of YK-150F flange pressure gauge:
1. Models available for YK-100, YK-150, Type D and Unitized Pressure Gauge.
2. Bourdon tube and movements indicator gives highly accurate readings of mud pump.
3. Standard Capacities:0-7,000kPa, 0-21,000kPa, 0-35,000kPa, 0-40,000kPa, other pressure range are available in PSI, kg/cm, MPa, and Bar units of measure, dual scales are available in PSI/kg/cm², kPa/Psi, Bar/PSI
Measurement Range (MPa) |
0~16, 25, 40, 60, 80, 100,120 |
Accuracy |
2.5 class (≤25MPa) 1.6 class (≥40MPa) |
Temp. Range |
-25°C ~ +55°C |
Shock Demand |
GB4439 V.H.4 or V.H.5 |
Standard |
JB /T 6804 |
If you are interested in this Silicone oil filled pressure gauge, Please contact me:
Name: Sunny Zhang
Trademanager: cn1510580420
Skype: ontheway-sunny
Or you can view more products by
