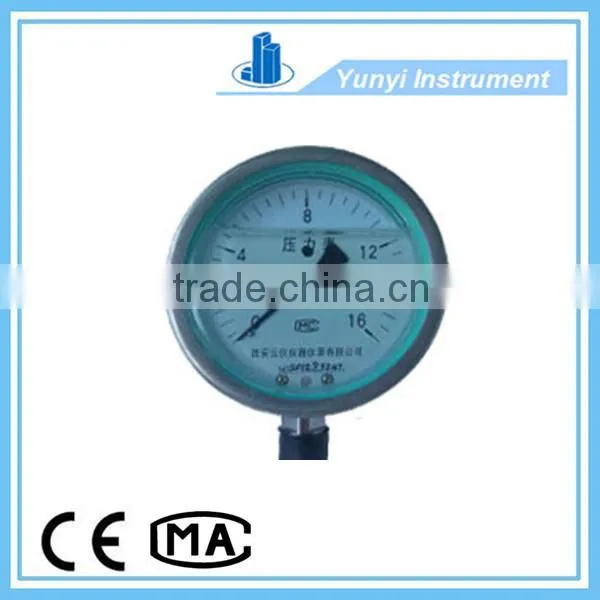

Bourdon-tube Connection Water Pressure Test Gauge

Type

Structure

Accuracy(%)

Range(MPa)

Environmental

YTN-60

diameter without brim

±2.5

0~0.16  0~0.25  0~0.4

0~0.6   0~1.0   0~1.6

0~2.5   0~4     0~6

0~10    0~16    0~25

0~40    0~60

Temperature of the surrounding

environment :

-5~55°C;-25~55°C.

Using work environment vibration

frequency No more than 25 hz,

amplitude is not more than 1 mm

YTN-60T

diameter with back brim

YTN-60Z

axle without brim

YTN-60ZT

axle with front  brim

YTN-100

diameter without brim

±1.6

±1.0

0~0.16  0~0.25  0~0.4

0~0.6   0~1.0   0~1.6;

0~2.5   0~4     0~6

0~10    0~16    0~25

0~40    0~60;

0~100   0~160;0~250

-0.1~0.5;-0.1~0.9;-0.1~1.5

-0.1~2.4

-0.1~0

YTN-100T

diameter with back brim

YTN-100Z

axle without brim

YTN-100ZT

axle with front  brim

YTN-150

diameter without brim

YTN-150T

diameter with back brim

YTN-150Z

axle without brim

YTN-150ZT

axle with front  brim
