Specifications
vibrating screen1) Stable structure
2) ISO CE CQC approved
3) Low noise pollution
4) Handy maintenance
vibrating screen vibrating screen price vibrating screen manufacturer for stone ore processing
I. Simple Introduction of vibrating screen vibrating screen price vibrating screen manufacturer for stone ore processing :
The circular vibratory screen is widely used to separate stone and sand, which is highly praised by customers in each industry. In the structure using tube-type eccentric shaft vibration exciter and partial block of conditioning amplitude, advanced frame structure assembled rivet connection of the equipment to improve service life and spring damping device reduces the impact on the base, is a multi-layer and efficient new shaker.
II. Features of vibrating screen vibrating screen price vibrating screen manufacturer for stone ore processing :
1. Ring groove rivet connections, advanced structure, strong and durable.
2. To deploy tire couplings, flexible connection, running smoothly.
3. To adopt a sieve and the sieve box beams using high strength bolts, simple structure, convenient maintenance.
4. Structure, advanced, using block eccentric as the excitation power, excitation and strong, with low power consumption, low noise.
III.Working principle of vibrating screen vibrating screen price vibrating screen manufacturer for stone ore processing
Motor make the exciter eccentric block produce high-speed rotation through the V-belt. Operation of the eccentric block produce large centrifugal force, to stimulate sieve boxes have a certain amplitude circle movement, the material on screen surface impulse by screen box generate continuous movement, on the process of materials and screen meet, the particles smaller than sieve screen can though to next screen, so that achieve classification.
IV. Main technical parameters of vibrating screen vibrating screen price vibrating screen manufacturer for stone ore processing :
Model |
Sieve Area (m2) |
Charge Granularity (mm) |
Capacity (t/h) |
Double Amplitude (mm) |
Motor Power (kw) |
Weight (kg) |
YK1236 |
4.3 |
≤200 |
240 |
8 |
7.5 |
3210 |
3YK1536 |
5.4 |
≤200 |
300 |
8 |
7.5 |
3630 |
2YK1542 |
6.3 |
≤200 |
360 |
8 |
11 |
4600 |
YK1548 |
7.2 |
≤200 |
400 |
8 |
11 |
4780 |
3YK1548 |
7.2 |
≤200 |
400 |
8 |
11 |
6600 |
YK2148 |
10 |
≤300 |
590 |
8 |
15 |
7150 |
2YK2148 |
10 |
≤300 |
590 |
8 |
15 |
8360 |
YK2160 |
12.6 |
≤300 |
750 |
8 |
18.5 |
8030 |
2YK2160 |
12.6 |
≤300 |
750 |
8 |
18.5 |
10120 |
3YK2160 |
12.6 |
≤300 |
750 |
8 |
18.5 |
10800 |
YK2448 |
11.5 |
≤300 |
620 |
8 |
22 |
8980 |
2YK2448 |
11.5 |
≤300 |
620 |
8 |
22 |
10700 |
YK2460 |
14.4 |
≤300 |
790 |
8 |
30 |
8800 |
2YK2460 |
14.4 |
≤300 |
790 |
8 |
30 |
12870 |
3YK2460 |
14.4 |
≤300 |
790 |
8 |
30 |
15600 |

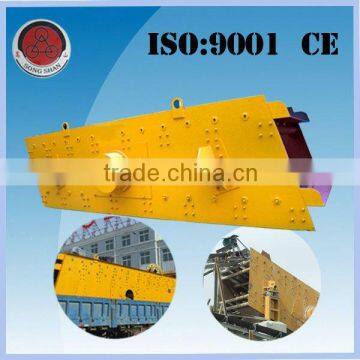

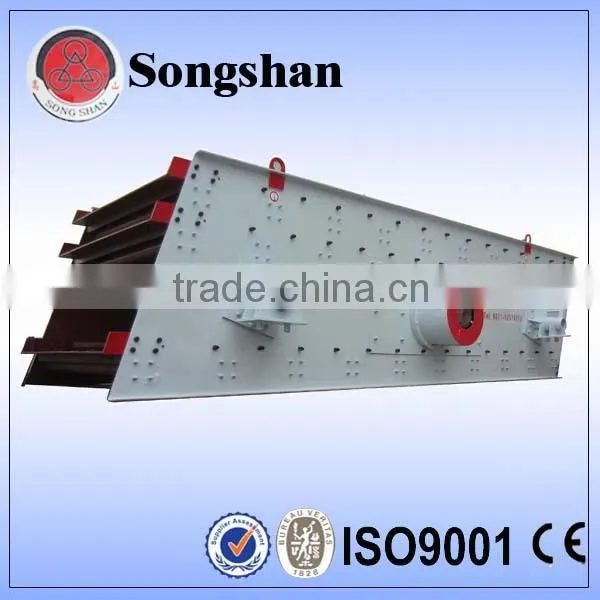

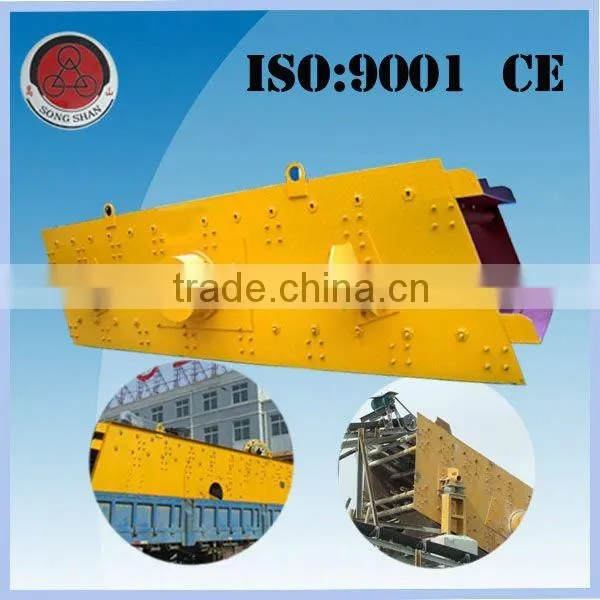

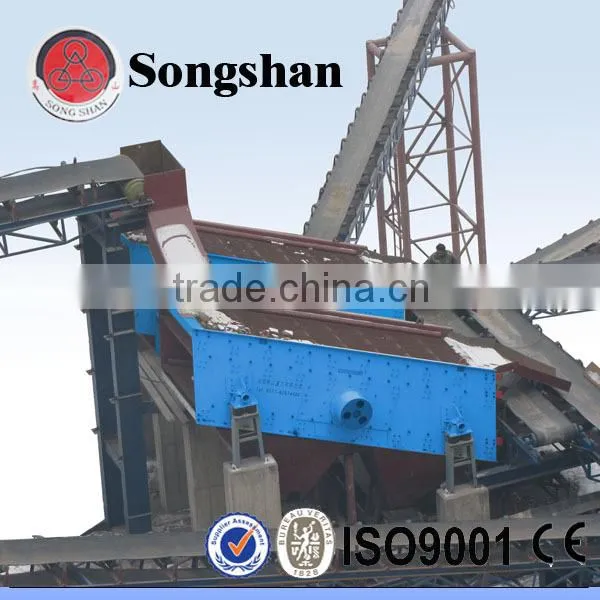

Product Image-- vibrating screen vibrating screen price vibrating screen manufacturer for stone ore processing
Our factory-- vibrating screen vibrating screen price vibrating screen manufacturer for stone ore processing
Before sales service:
Provide the program design and technological flow design; choose the most suitable equipment for customer;
design and manufacture products according to customer's demands; provide training of operational technicians
for customer.
Sales service:
Finish the equipment inspection with you; assist you in drawing out the construction scheme and detailed flow.
After sales service:
Send technicians to installation site for the guidance, equipment adjustment and training.
Please don’t hesitate to inform us:
1.What’s kind of your raw material?
2. Now your raw stone size?
3. What’s the capacity ? (T/H)
4. What’s the final stone size request?
5. Others?
