Specifications
YK vibrating screen mining machinery1. easy maintenance and safety operation
2. strong exciting force, high sieving efficienc

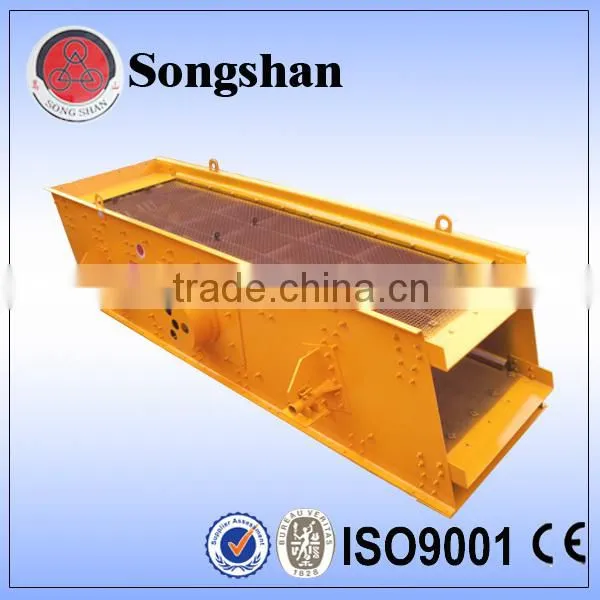

YK series vibrating screen mining machinery
1. Application |
Being high efficient sieving equipment, the vibrating screen is wildly used in mining, coal, metallurgy, building materials, refractory materials, light industry and chemistry industries.
The mesh hole and no. of layers can be customized.
2. Structure |
3. Operating Principle |
The vibrating exciter is installed in the side plate of sieving box. Together with motor, the exciter rotates through coupling or belt, which produces centrifugal inertia force. The sieving screen is the main easy-wear part. The perforated sieving plate and rubber sieving plate can be knitted by austenitic manganese steel, according to different raw materials and customers requirements. The sieving plate has the types of single layer and double-layers. The sieve obliquity can be adjusted by the height of the supporting seat of spring.
4. Technical Parameter |

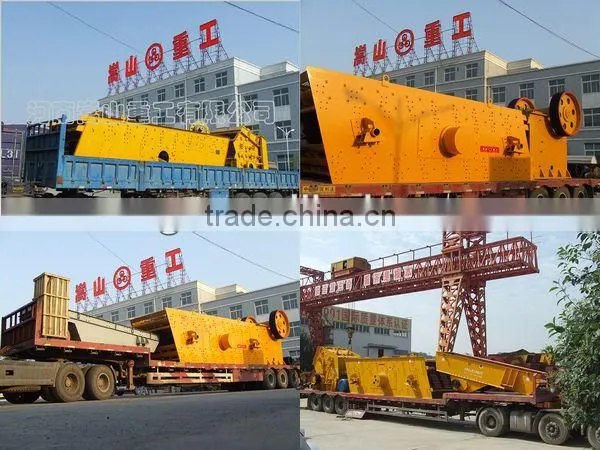

The main body is in nude, and the parts will be packaged in wooden or steel case.
Thanks for your interest in this product.
Pls inform us the required capacity, so that I can help to select model and quote.
Welcome to contact me for further information. |
