Specifications
Mineral washing equipment trommel screen:1) Q235 steel
2) High strength
3) High anti-wear
4) CE & ISO approved

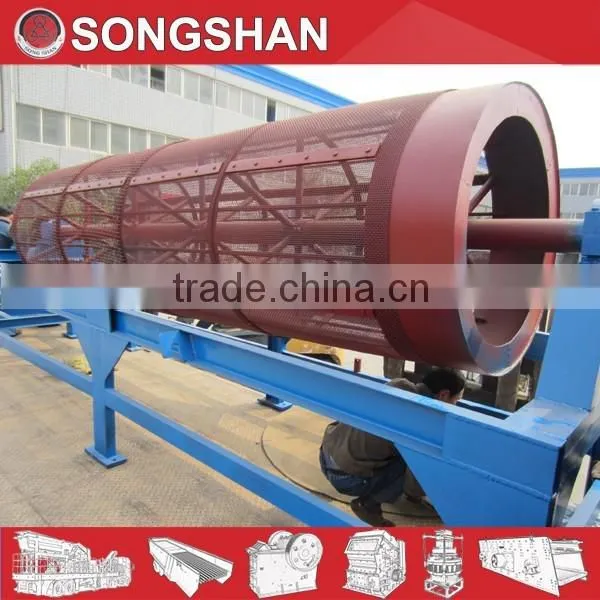

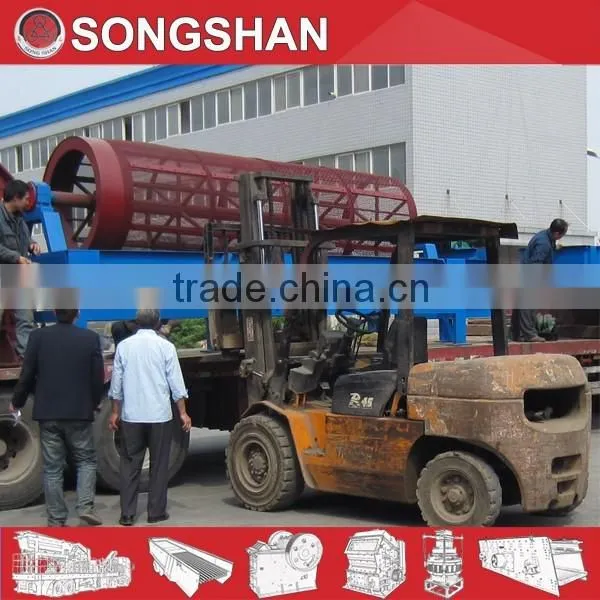

Mineral washing equipment trommel screen

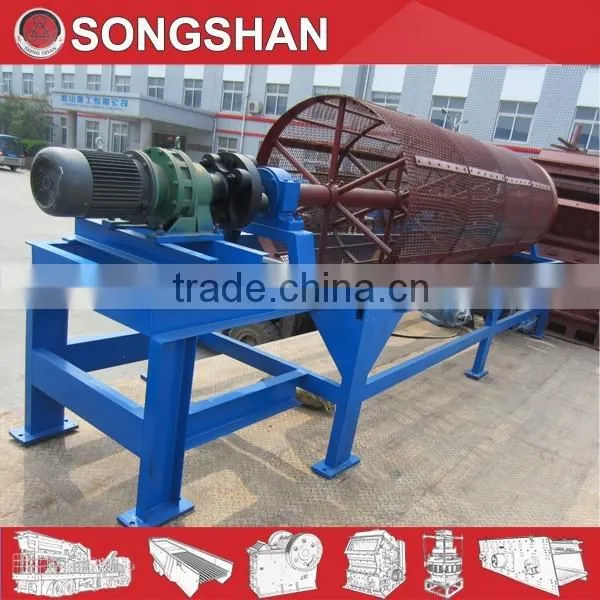

I. Structure of Mineral washing equipment trommel screen :
Motor, decelerator, rotordrive, chassis, seal cap, inlet and outlet.
II. Working principle of Mineral washing equipment trommel screen :
Material feeds into the drum, is lifted up by the rotation and aerated as it falls back down. This action is repeated with each revolution along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.

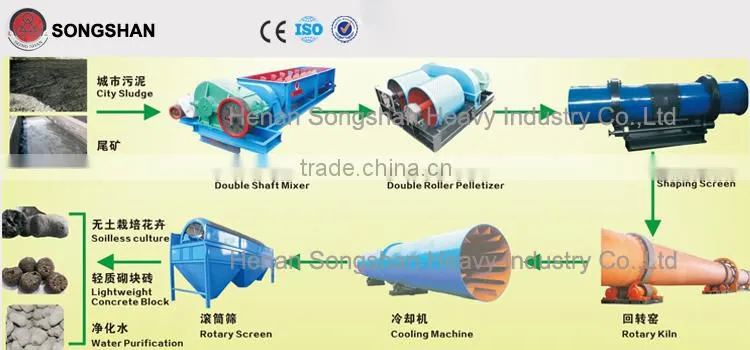

III. Application of Mineral washing equipment trommel screen
IV. Main technical parameter of Mineral washing equipment trommel screen :
| Model | GT1015 | GT1020 | GT1225 | GT1530 | GT1545 | GT1848 | GT1848 |
| Capacity t/h | 10-20 | 20-40 | 50-60 | 50-80 | 60-90 | 90-120 | 150-180 |
| Power kw | 4 | 5.5 | 7.5 | 11 | 15 | 22 | 30 |
| Diameter mm | 1000 | 1000 | 1200 | 1500 | 1500 | 1800 | 2000 |
| Length mm | 1500 | 2000 | 2500 | 3000 | 4500 | 4800 | 5500 |
| Dimension mm | 3000x1400 x2145 |
3460x1400 x2145 |
4146x1600 x2680 |
4460x1900 x2820 |
5960x1900 x3080 |
6500x2300 x4000 |
7500x2500 x4000 |
| Rated Voltage(V) | 380V | 380V | 380V | 380V | 380V | 380V | 380V |
| Rated Frequency(HZ) | 50HZ | 50HZ | 50HZ | 50HZ | 50HZ | 50HZ | 50HZ |

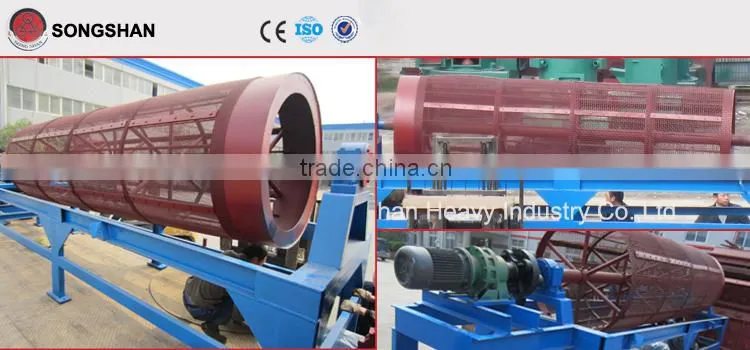

V. Details of Mineral washing equipment trommel screen :
| Company Profile | |
|
Henan Songshan Heavy Industry Co., Ltd., a state-designated manufacturer by National Construction Department, has a history of over 30 years in machine manufacturing. We mainly specialize in manufacturing beneficiating, crushing and milling machines, such as Jaw Crushers, Impact Crushers, Double Roll Crushers, Sand Making Machines, Raymond Mills, Superfine Mills, Ball Mills, Flotation Separators, Magnetic Separators, Shaking Tables, and Dryers.
|
|
| Certificate of honor | |||
| CE certificate |
|
ISO9001-2000 |
|
| BV certificate
|
|
China Top enterprises |
|
|
China credit example certificate |
|
||
Before sales service:
Provide the program design and technological flow design; choose the most suitable equipment for customer;
design and manufacture products according to customer's demands; provide training of operational technicians
for customer.
Sales service:
Finish the equipment inspection with you; assist you in drawing out the construction scheme and detailed flow.
After sales service:
Send technicians to installation site for the guidance, equipment adjustment and training.
1.What’s kind of your raw material?
2. What’s the capacity ? (T/H)
3. Others?
