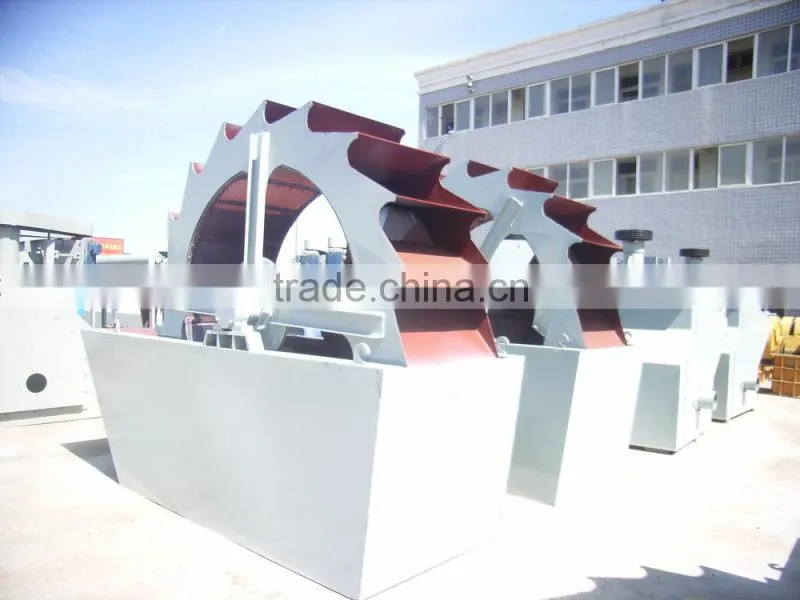

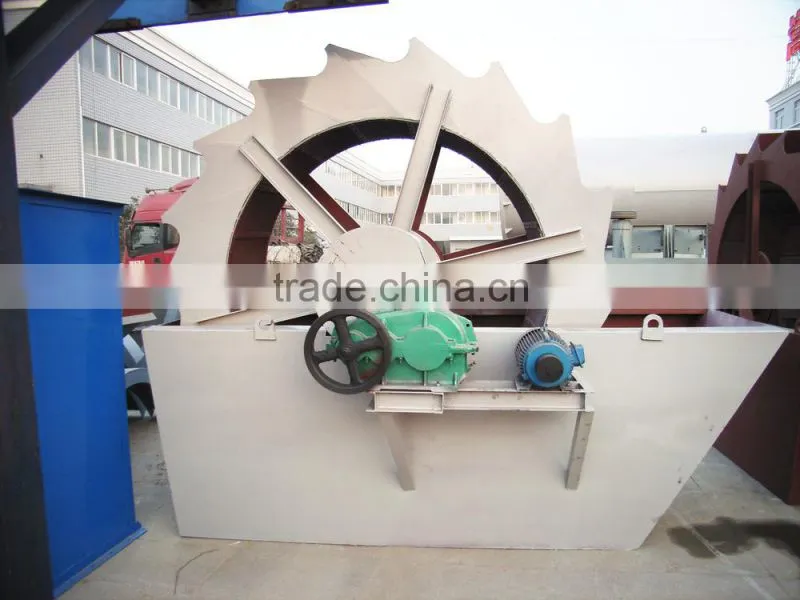

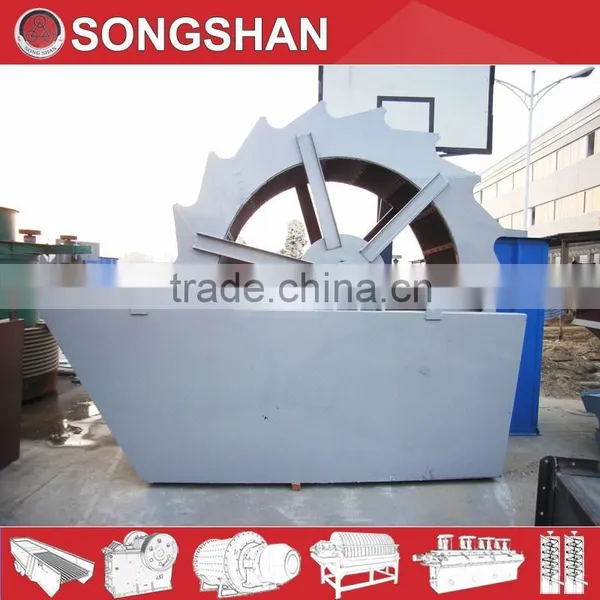

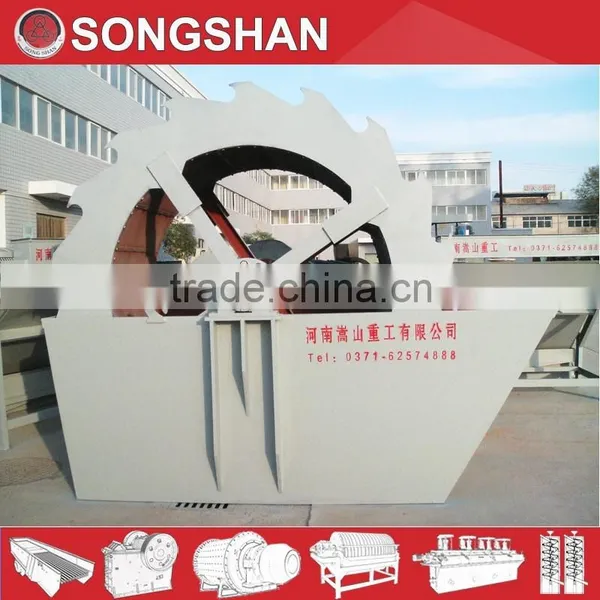

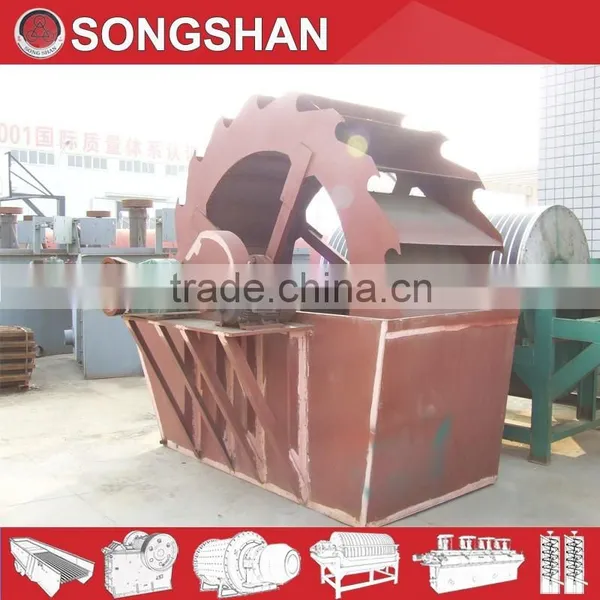

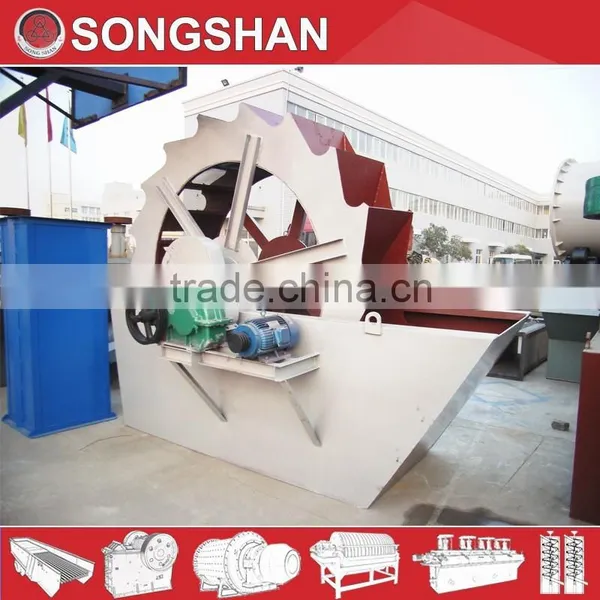

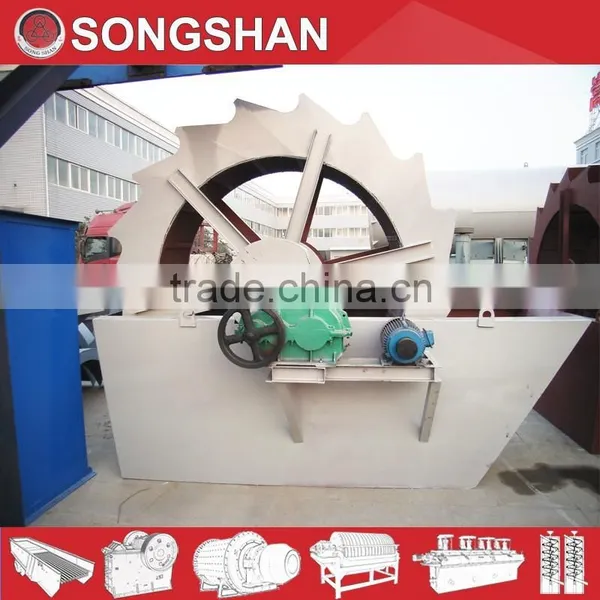

Sand washer bucket wheel sand washing machine price
1. Description of sand washer bucket wheel sand washing machine price

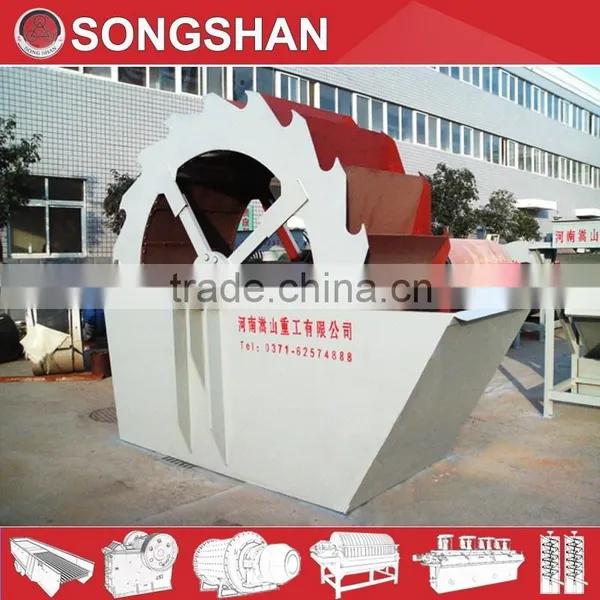

The XZD series sand washing machine is the wheel bucket type. The wheel bucket sand washing machine are
high efficient and mainly used for cleaning materials in the following industries: quarry, minerals,building materials,
transportation, chemical industry, water conservation and hydro-power, cement mixture station and so on.
2. Features of sand washer bucket wheel sand washing machine price
1.Simple structure. The bearing device of impeller drive is separated from water and materials with water, to
avoid in a large degree that the bearings are damaged by being soaked with water, sand or some polluted things.
2.Being used for cleaning sand in quarries, it has many advantages compared with traditional spiral sand washing
machine.
3.High efficiency,and little sand lose during washig.

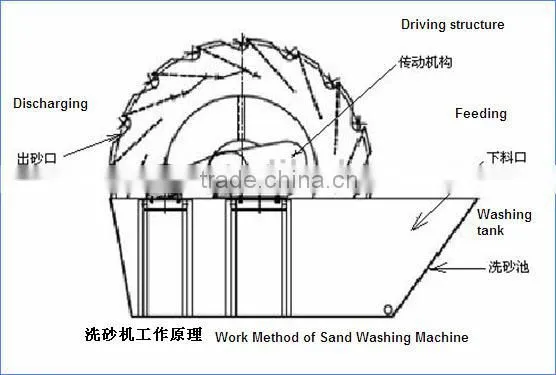

3.Working principles of sand washer bucket wheel sand washing machine price
The electric motor runs slowly with the impeller after decelerated by the belt, decelerator and gears wheel.
The sand and stone flow into washing launder from feeding launder, rolls with the impeller, and grinds each other.
The impurity covering the sand is washing away.
At the same time, add more water, the strong water flow will take away waste and some low-weight wastes
from washing launder. Through the above process, the washing function is finished. The clean sand and stone is
lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing
launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used.
Finally, the sand and stone goes to the out launder from the rotary impeller to finish the washing task.
4.Technical parameters of sand washer bucket wheel sand washing machine price
Type |
Wheel Bucket Diameter(mm) |
Rotation Speed(r/min) |
Capacity |
Motor Power(kw) |
Total Weight(kg) |
Dimension |
XS2200 |
2200 |
1-2 |
15-30 |
4 |
3300 |
3150*1910*2280 |
XS2600 |
2600 |
1-2 |
20-50 |
5.5 |
4600 |
3520*2390*2690 |
XS2900 |
2900 |
0.8-1.5 |
50-100 |
7.5 |
6100 |
3820*2640*3200 |
XS3500 |
3500 |
0.8-1.2 |
120-200 |
11 |
7900 |
4420*2930*3800 |
Pre-sales services
1.Guide customers to choose products which are best suitable for them.
2.Design and manufacture tailor-made products according to the specific needs of customers.
Sales services
1.Strict inspection before the delivery of equipment.
2.Arrange the delivering of goods in accordance with contract.
After sales services
1.Designate special after-sales service personnel to instruct customers to install equipment.
2.For the problems, our company guarantee to provide resolutions within 24 hours.
Henan Songshan Heavy Industry Co., Ltd., a state designated manufacturer by National Construction Department,has a history of over 30 years in machine manufacturing.
We mainly specialize in manufacturing beneficiating , crushing and milling machines,such as Jaw Crushers, Impact Crushers, Double Roll Crushers, Sand Making Machines,Raymond Mills, Superfine Mills, Ball Mills, Flotation Separators, Magnetic Separators,Shaking Tables, and Dryers.
Our products have received the ministerial and provincial honors. Due to the high quality and
perfect after sales service, our products have won trust and good comments from our customers
and taken the lead in the machinery fields.
Customer visiting
Please don’t hesitate to inform us:
1.What's kind of your raw material?
2.What's your raw stone size?
3.What's the capacity ? (T/H)
4.What's the final stone size request?

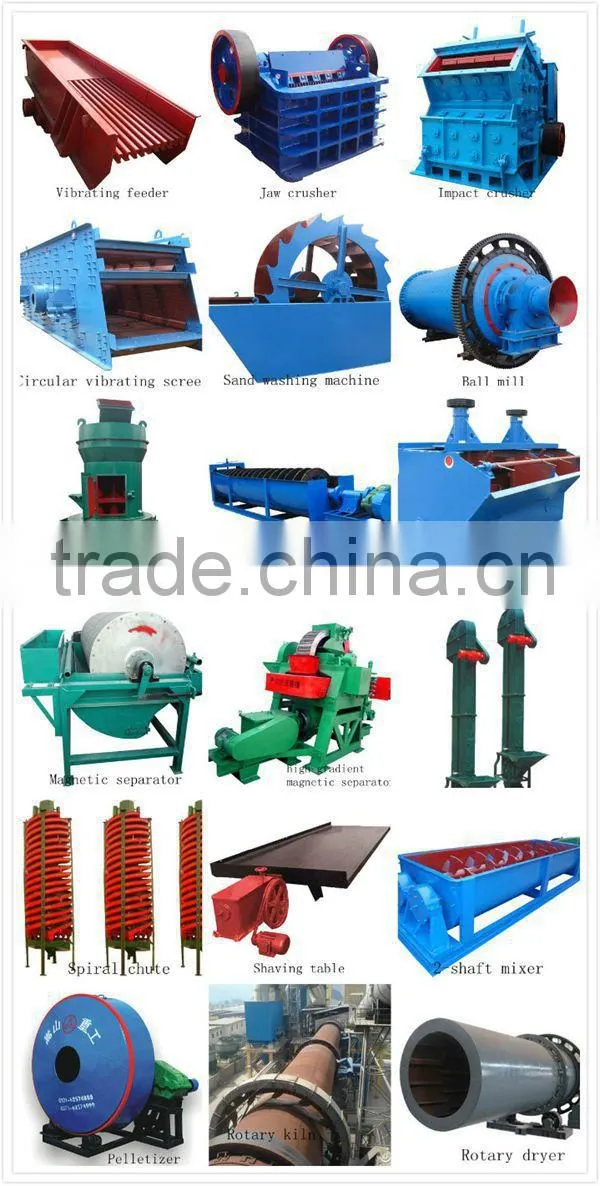

Our main products
