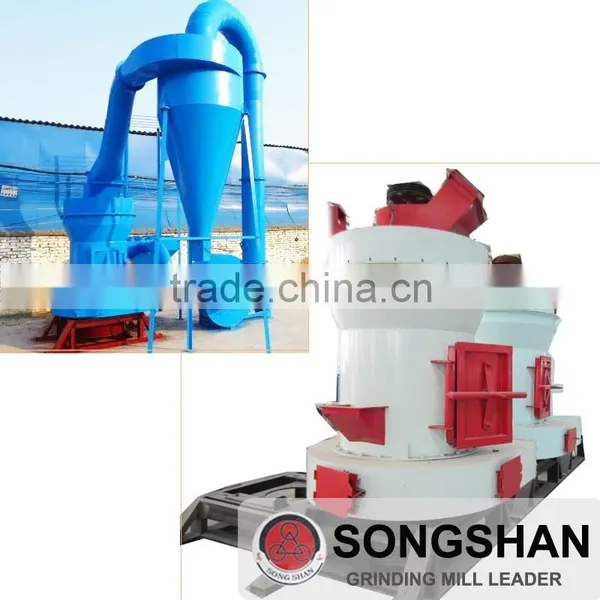

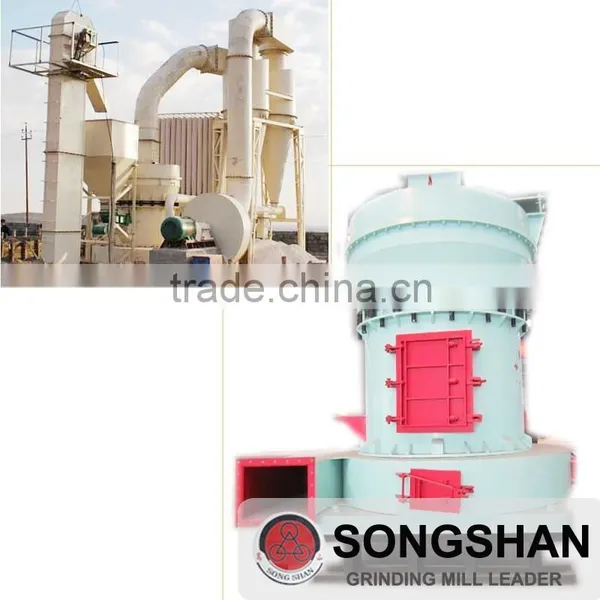

Gypsum powder grinding production line
1.Description of the gypsum powder grinding production line
Our company began to produce the high quality gypsum powder grinding production
line from 1993.
Gypsum powder grinding production line is designated for processing superfine
powder of over 300 non inflammable and non explosive materials with Mohs hardness below Grade
8 and water content below 6% in the field of mine ,chemical industry, building materials.
The finished products can be adjusted freely from 400 to 1350 meshes (max meshes of 2500 for
some materials).
2.Features of the gypsum powder grinding production line
1.Low cost and zero pollution.
2.It covers a small area.
3.High capacity and much more durable.
4.Easy adjustment of product fineness.
5.Large transmission capability.
3. Applications of the gypsum powder grinding production line
Gypsum powder grinding production line can be used in the field of mine,chemical
industry,building materials,such as barite,calcite, potash feldspar, steatite, marble, limestone,dolomite,
fluorite,lime, active carclazyte,active carbon,bentonite, kaolin, cement, phosphorus ore,gypsum,glass, manganese ore,titanium ore,copper,mine,chrome ore,refractory materials, heat preservation materials,
coal coke, coal fines,titanium white powder, quartz, carborundum , zircon sand and so on.
4.Operating principles of the gypsum powder grinding production line
The whole system of R series gypsum powder grinding production line consists of
main unit, classifier,air blower,cyclone collector,pine device, feeder, bug dust collector, power-
driven machine etc.
5. Spare parts of the gypsum powder grinding production line
|
|
Pre-sales services
1.Guide customers to choose products which are best suitable for them.
2.Design and manufacture tailor-made products according to the specific needs of customers.
Sales services
1.Strict inspection before the delivery of equipment.
2.Arrange the delivering of goods in accordance with contract.
After sales services
1.Designate special after-sales service personnel to instruct customers to install equipment.
2.For the problems, our company guarantee to provide resolutions within 24 hours.
Henan Songshan Heavy Industry Co., Ltd., a state designated manufacturer by Construction Department has a history of over 30 years in machine manufacturing.
We mainly specialize in manufacturing beneficiating , crushing and milling machines, such as Jaw Crushers, Impact Crushers, Double Roll Crushers, Sand Making Machines, Raymond Mills, Superfine Mills, Ball Mills, Flotation Separators, Magnetic Separators, Shaking Tables, and Dryers.
Our products have received the ministerial and provincial honors. Due to the high quality and perfect after sales service, our products have won trust and good comments from our customers and taken the lead in the machinery fields.
Company's certificate
Customer visiting
Spare parts of raymond mill:
Please don’t hesitate to inform us:
1.What's kind of your raw material?
2.What's your raw stone size?
3.What's the capacity ? (T/H)
4.What's the final stone size request?
5. Others?
Other types of Raymond mill specifications for your reference
Model |
3R1410 |
3R1815 |
3R2615 |
3R2715 |
4R2716 |
|
Max feeding size(mm) |
5-8 |
15 |
20 |
20 |
15-25 |
Discharge size(mm) |
0.044-0.125 |
0.044-0.125 |
0.044-0.125 |
0.044-0.125 |
0.044-0.125 |
|
Shift capacity (T) (different material) |
1-10 |
1-15 |
2-25 |
3-30 |
3-30 |
|
Center shaft speed (r/min) |
280 |
200 |
165 |
165 |
165 |
|
Inner diameter of the grinding ring (mm) |
405 |
550 |
780 |
830 |
830 |
|
Diameter of the grinder roller(mm) |
140 |
180 |
260 |
270 |
270 |
|
Height of the grinder roller(mm) |
100 |
150 |
150 |
150 |
160 |
Main motor(Kw) |
Y 160M -6-7.5 |
Y 180L -8-11 |
Y225S-8-18.5 |
Y 225M -8-18.5 |
Y 225M -8-22 |
Blower motor(Kw) |
Y132S-4-5.5 |
Y 132M -4-7.5 |
Y 160L -4-15 |
Y 180M -4-18.5 |
Y 180M -4-18.5 |
Classifier motor(Kw) |
Y 190L -6-1.1 |
Y 100L -6-1.5 |
Y 112M -6-2.2 |
Y 112M -6-2.2 |
Y 112M -6-2.2 |
|
Dimension (mm) |
3400*2161* 3246 |
4200*3900* 4300 |
5970*4000* 5000 |
5970*4000* 5200 |
5970*4000* 5200 |
Weight (kg) |
2500 |
2950 |
3800 |
4000 |
4000 |
