Home > Products > grinding machine > Carbon black milling machine
Carbon black milling machine
- 60 Set / Sets per Month
- Qingdao Shanghai or Tianjin
- T/T
Product Details
Condition: | New | Type: | Raymond Mill | Motor Type: | AC Motor |
Power(W): | 42.7kw | Capacity(t/h): | 3-30 | Place of Origin: | Henan, China |
Brand Name: | Songshan | Model Number: | 4R2716 | Dimension(L*W*H): | 5970*4000* 5200mm |
Weight: | 4000kg | Certification: | CE & ISO & CCC & BV | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Carbon black milling machine
1.Description of the carbon black milling machine
Our company began to produce the high quality carbon black milling machine from 1993.
Carbon black milling machine is designated for processing superfine powder of over
300 non inflammable and non explosive materials with Mohs hardness below Grade 8 and water content
below 6% in the field of mine ,chemical industry, building materials
The finished products can be adjusted freely from 400 to 1350 meshes (max meshes of 2500 for
some materials).
2.Features of the carbon black milling machine
1.Low cost and zero pollution.
2.It covers a small area.
3.High capacity and much more durable.
4.Easy adjustment of product fineness.
5.Large transmission capability.
3. Applications of the carbon black milling machine
Carbon black milling machine can be used in the field of mine,chemical industry,building
materials,such as barite,calcite, potash feldspar, steatite, marble, limestone,dolomite,fluorite,lime,
active carckazyte,active carbon,bentonite, kaolin, cement , phosphorus ore,gypsum,glass,manganese
ore,titanium ore,copper,mine,chrome ore,refractory materials, heat preservation materials,coal coke,
coal fines,titanium white powder, quartz,carborundum , zircon sand and so on.
4.Operating principles of the carbon black milling machine

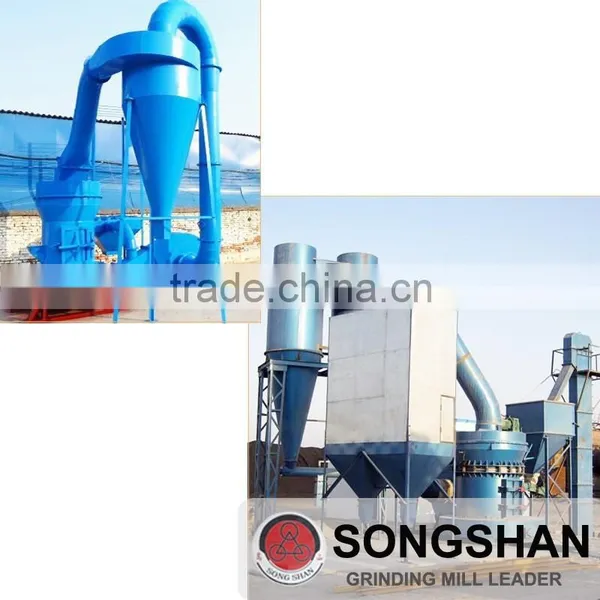

The whole system of R series carbon black milling machine consists of main unit,classifier, air blower,cyclone collector,pine device, feeder, bug dust collector,power-driven machine etc.
5. Spare parts of the carbon black milling machine
|
Pre-sales services
1.Guide customers to choose products which are best suitable for them.
2.Design and manufacture tailor-made products according to the specific needs of customers.
Sales services
1.Strict inspection before the delivery of equipment.
2.Arrange the delivering of goods in accordance with contract.
After sales services
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators on site.
4. Examine the equipment regularly.
5. Take initiative to eliminate the troubles rapidly at site.
6. Distribute the guarantee fittings door-to-door.
7. Provide perfect service.
8. Provide technical exchanging.
Henan Songshan Heavy Industry Co., Ltd., a state designated manufacturer by Construction Department
has a history of over 30 years in machine manufacturing.
We mainly specialize in manufacturing beneficiating , crushing and milling machines, such
as Jaw Crushers, Impact Crushers, Cone Crushers,Double Roller Crushers, Raymond Mills,
Ultrafine Mills,Ball Mills, Flotation Separators, Magnetic Separators, Rotary kilns,Rotary
Dryers, Shaking Tables and Sand Making Machines.
Our products have received the ministerial and provincial honors. Due to the high quality and perfect
after sales service, our products have won trust and good comments from our customers and taken the
lead in the machinery fields.
Company's certificate
Customer visiting
Spare parts of raymond mill:
Please don’t hesitate to inform us:
1.What's kind of your raw material?
2.What's your raw stone size?
3.What's the capacity ? (T/H)
4.What's the final stone size request?
5. Others?
Other types of Raymond mill specifications for your reference
Model | 3R1410 | 3R1815 | 3R2615 | 3R2715 | 4R2716 |
Max feeding size(mm) | 5-8 | 15 | 20 | 20 | 15-25 |
Discharge size(mm) | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 |
Shift capacity (T) (different material) | 1-10 | 1-15 | 2-25 | 3-30 | 3-30 |
Center shaft speed (r/min) | 280 | 200 | 165 | 165 | 165 |
Inner diameter of the grinding ring (mm) | 405 | 550 | 780 | 830 | 830 |
Diameter of the grinder roller(mm) | 140 | 180 | 260 | 270 | 270 |
Height of the grinder roller(mm) | 100 | 150 | 150 | 150 | 160 |
Main motor(Kw) | Y 160M -6-7.5 | Y 180L -8-11 | Y225S-8-18.5 | Y 225M -8-18.5 | Y 225M -8-22 |
Blower motor(Kw) | Y132S-4-5.5 | Y 132M -4-7.5 | Y 160L -4-15 | Y 180M -4-18.5 | Y 180M -4-18.5 |
Classifier motor(Kw) | Y 190L -6-1.1 | Y 100L -6-1.5 | Y 112M -6-2.2 | Y 112M -6-2.2 | Y 112M -6-2.2 |
Dimension (mm) | 3400*2161* 3246 | 4200*3900* 4300 | 5970*4000* 5000 | 5970*4000* 5200 | 5970*4000* 5200 |
Weight (kg) | 2500 | 2950 | 3800 | 4000 | 4000 |
