Stone production line manufacturer

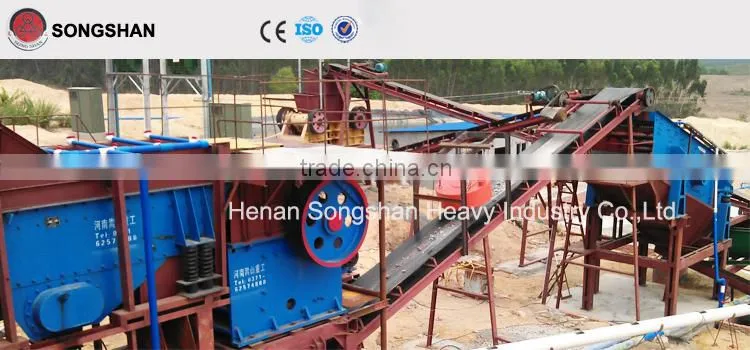

1. Description of the stone production line manufacturer

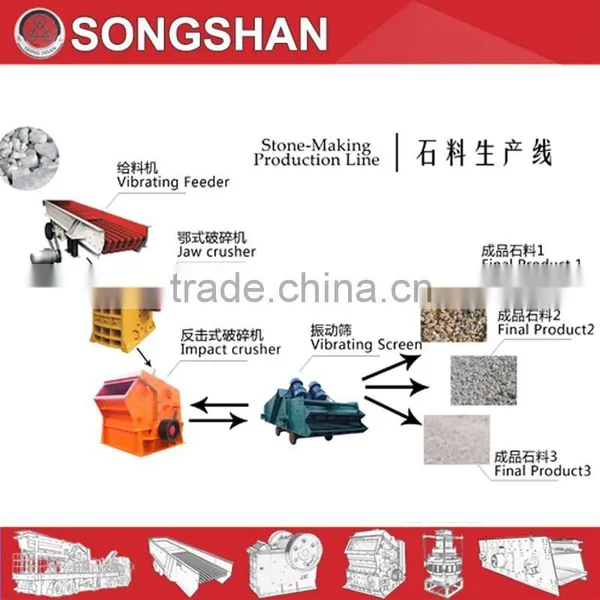

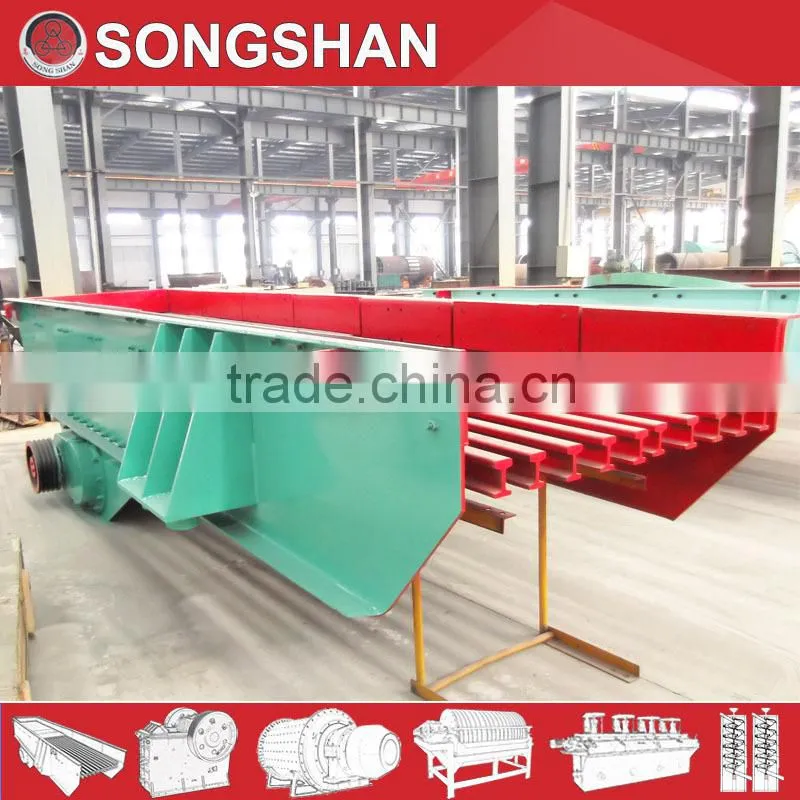

First ,the raw materials are regularly conveyed into the elementary crushing machine by the
vibrating feeder, and then the belt conveyor transfers the elementary products to impact crusher
for secondary crush.
The secondary products will be separated into stone of different sizes by the vibrating screen.
The parts not satisfying the needs will be returned to the impact crusher for further crush.

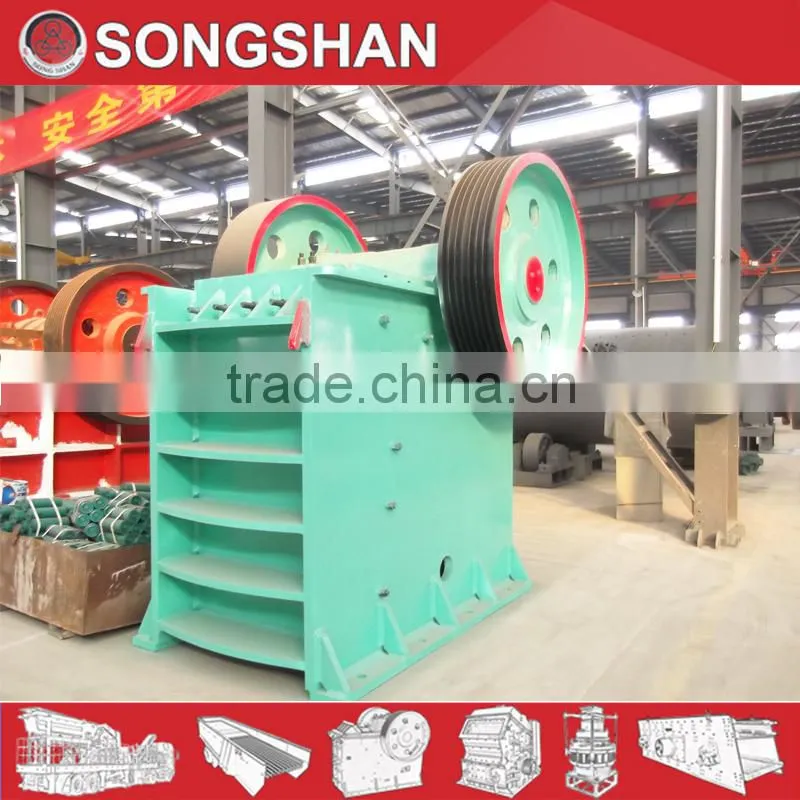

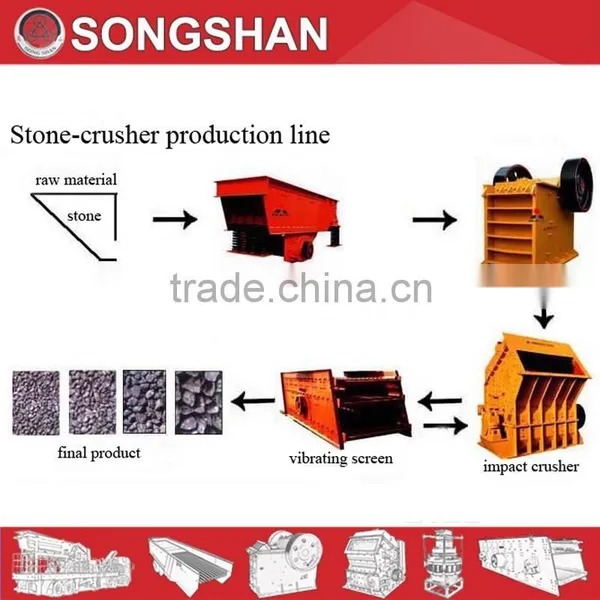

The stone materials are delivered into the jaw crusher for preliminary crush by the feeder. Then,
the crushed rough stone materials are transported into the impact crusher for further crush by the
belt conveyor.

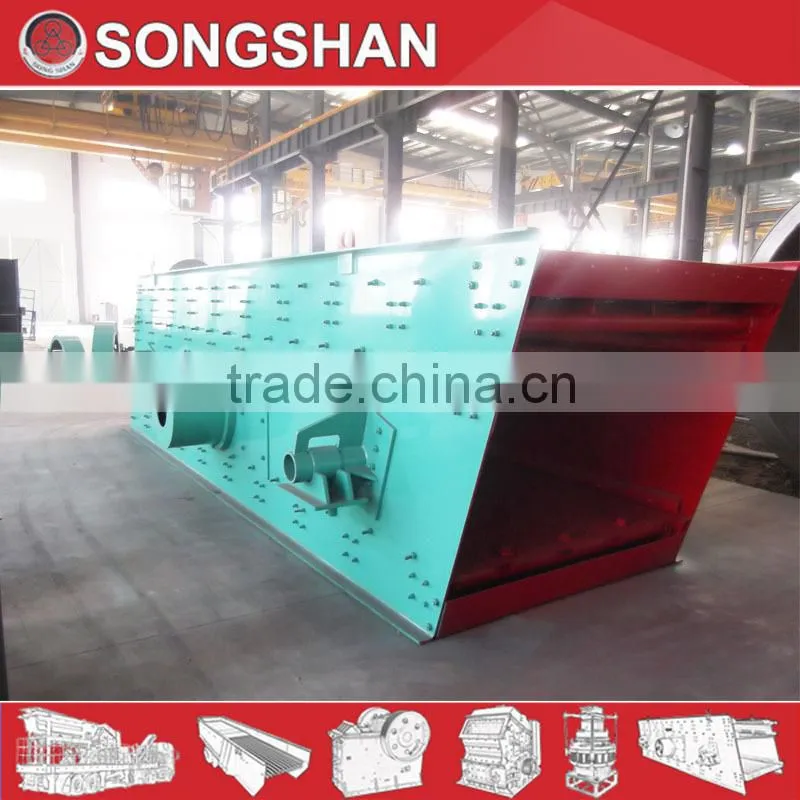

Then, the stone materials are separated into different size by the vibrating screen, and the
stone, which does not satisfy the required granularity, will return to the impact crusher for crush
once again.
2.Features of the stone production line manufacturer
1.High automation, adjustable size of discharged granularity
2.High broken ratio, low energy consumption, large output
3.High uniform granularity and good shape of the products
4.Stone production line is suitable for various engineering project constructions

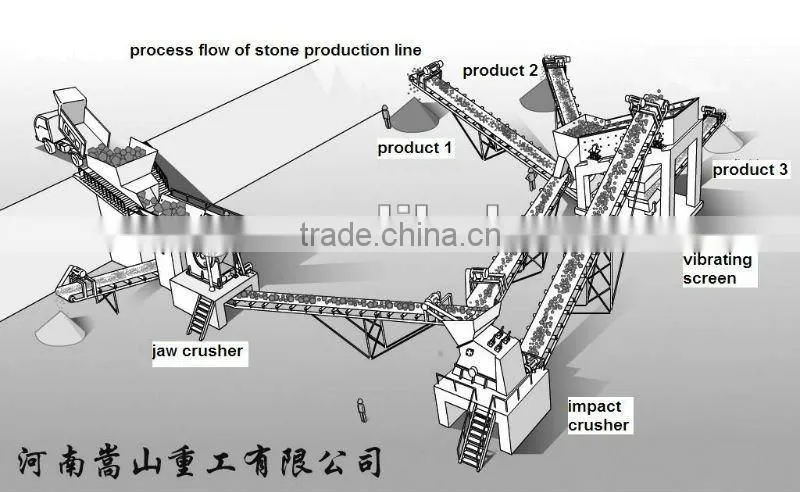

3.Working Principles of the stone production line manufacturer

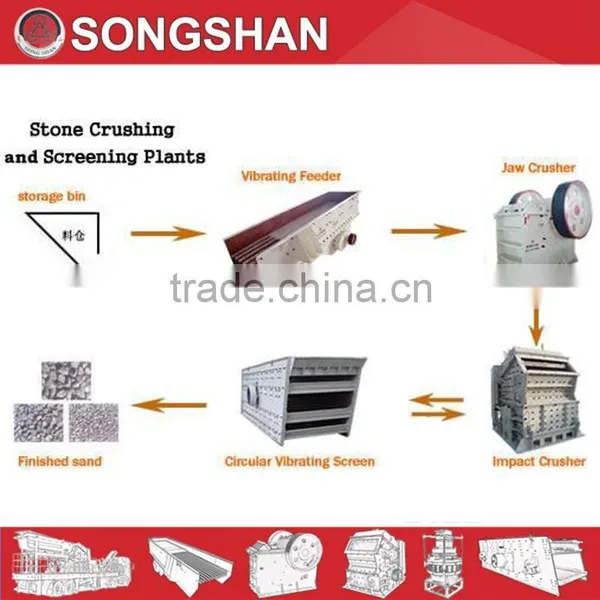

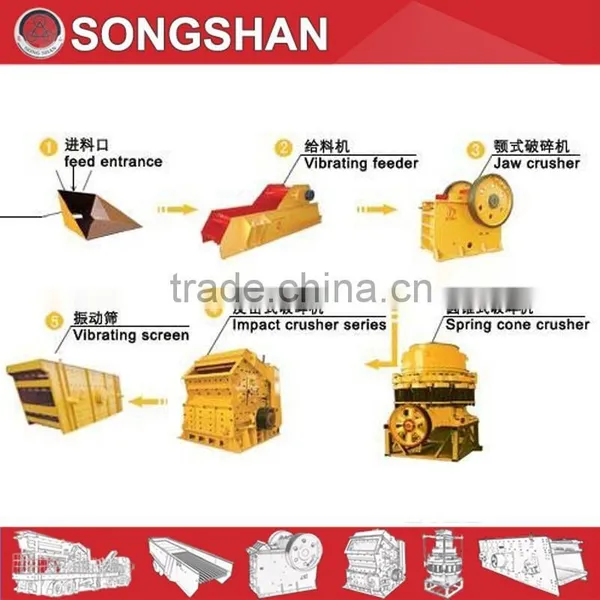

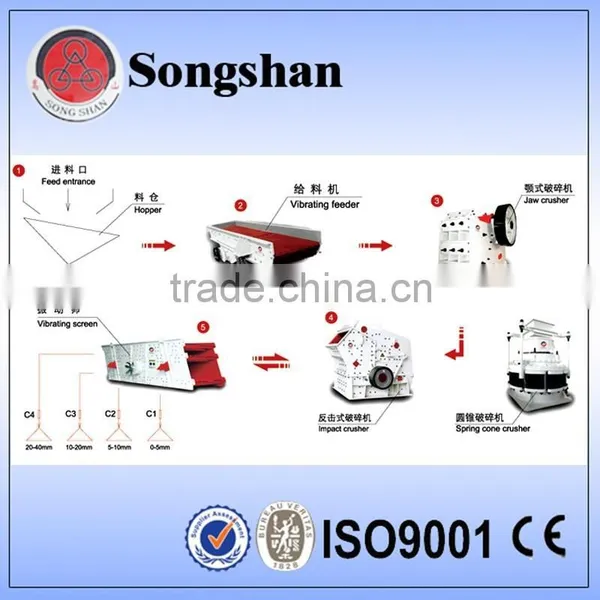

The material is fed into the jaw crusher by the vibrating feeder for primary crushing, after crushing; the
material will be fed into cone crusher by belt conveyor for secondary crushing. The fine materials with
belt conveyor are sent to the circle vibrating screen for screening different specifications of finished
product stone, but not qualified stone will return to the cone crusher.
4.Technical parameters of the stone production line
Model |
PSJ-40(t/h) |
PSJ-80(t/h) |
PSJ-90(t/h)(I) |
Charge granularity |
<350 |
<425 |
<210 |
|
Machines collocation |
hopper |
hopper |
hopper |
ZFK150×85vibrating feeder |
ZFK180×90vibrating feeder |
CG750×1650 trough vibrating feeder |
|
PE400×600 jaw crusher |
PE500×750 jaw crusher |
YK1536 vibrating screen |
|
PEX250×1000 jaw crusher |
YK1536 vibrating screen |
PEX250×1000 jaw crusher |
|
ZYK1236 vibrating screen |
PF1007 impact crusher |
ZYK1536 vibrating screen |
|
|
ZYK1536 vibrating screen |
|
|
Optional machines |
5a:PF1007 impact crusher |
5a:PEX250×1200 impact crusher |
5a:PF1010 impact crusher |
|
5b:PYB900 cone crusher |
|
|
Belt conveyor |
90-120 |
120-240 |
120-140 |
Motor power |
110-150 |
180-260 |
140-200 |
Pre-sales services
1.Guide customers to choose products which are best suitable for them.
2.Design and manufacture tailor-made products according to the specific needs of customers.
Sales services
1.Strict inspection before the delivery of equipment.
2.Arrange the delivering of goods in accordance with contract.
After sales services
1.Designate special after-sales service personnel to instruct customers to install equipment.
2.For the problems, our company guarantee to provide resolutions within 24 hours.
Henan Songshan Heavy Industry Co., Ltd., a state designated manufacturer by National Construction Department,has a history of over 30 years in machine manufacturing.
We mainly specialize in manufacturing beneficiating , crushing and milling machines,such as Jaw Crushers, Impact Crushers, Double Roll Crushers, Sand Making Machines,Raymond Mills, Superfine Mills, Ball Mills, Flotation Separators, Magnetic Separators,Shaking Tables, and Dryers.
Our products have received the ministerial and provincial honors. Due to the high quality and
perfect after sales service, our products have won trust and good comments from our customers
and taken the lead in the machinery fields.
Customer visiting
Please don’t hesitate to inform us:
1.What's kind of your raw material?
2.What's your raw stone size?
3.What's the capacity ? (T/H)
4.What's the final stone size request?
