Specifications
YK series vibrating screen1.Moves on a circular motion
2.Widely used in mine, construction,etc
3.Durability & low noise
Introduction of sand vibrating screen
The YK series of vibration screen moves on a circular motion. It is a multi-layer and high efficient vibrating screen.
Advantages of sand vibrating screen
Stable structure, strong exciting force, high efficiency, low noise pollution, easy to maintain and durability.
Circular vibrating screen has been widely used in mine, construction, transportation, energy and chemical industries.
Characteristics of sand vibrating screen
1) stable structure and strong exciting force
2) high efficiency and little noise pollution
3) handy maintenance and durability
4) Materials blocked in meshes can be automatically out;
5) Simple structure and easy to disassemble and replace;
6) Less electricity power consumption
Technical parameters of sand vibrating screen
| Model | Sieve layer | Sieve area(m2) | Mesh size(mm) | Max. feeding size(mm) | Processing capacity(m3/h) | Vibrating power(r/min) | Double amplitude(mm) | Motor power(kw) | Sieve obliquity(°) | Sieve specification(mm) | Dimensions(l*w*h)(mm) |
| 2YK1225 | 2 | 6 | 4-50 | 400 | 8-60 | 800-970 | 8 | 5.5 | 20 | 1200*2500 | 2930*1860*870 |
| 2YK1230 | 2 | 7.2 | 4-50 | 400 | 12-78 | 800-970 | 8 | 7.5 | 20 | 1200*3000 | 3430*1860*870 |
| 2YK1237 | 2 | 8.88 | 4-50 | 400 | 15-86 | 800-970 | 8 | 7.5 | 20 | 1200*3700 | 4050*1860*870 |
| 3YK1237 | 3 | 13.22 | 4-50 | 400 | 16-90 | 800-970 | 8 | 7.5 | 20 | 1200*3700 | 4270*1860*1210 |
| 2YK1535 | 2 | 10.5 | 5-50 | 400 | 20-125 | 800-970 | 8 | 11 | 20 | 1500*3500 | 4120*2210*1230 |
| 3YK1535 | 3 | 15.75 | 5-50 | 400 | 21-125 | 800-970 | 8 | 11 | 20 | 1500*3500 | 4360*2210*1610 |
| 2YK1545 | 2 | 13.5 | 5-50 | 400 | 22-150 | 800-970 | 8 | 15 | 20 | 1500*4500 | 5120*2210*1230 |
| 4YK1545 | 4 | 27 | 5-50 | 400 | 22-155 | 800-970 | 8 | 18.5 | 20 | 1500*4500 | 5930*2210*2060 |
| 3YK1548 | 3 | 21.6 | 5-50 | 400 | 22.5-162 | 800-970 | 11 | 15 | 20 | 1500*4800 | 5660*2210*1610 |
| 4YK1548 | 4 | 28.8 | 5-50 | 400 | 22.5-162 | 800-970 | 8 | 18.5 | 20 | 1500*4800 | 6230*2210*2060 |
| 2YK1848 | 2 | 17.28 | 5-80 | 400 | 25-206 | 750 | 8 | 15 | 20 | 1800*4800 | 5420*2550*1420 |
| 4YK1848 | 4 | 34.54 | 5-80 | 400 | 32-285 | 750 | 8 | 22 | 20 | 1800*4800 | 6290*2550*2160 |
| 3YK1854 | 3 | 29.16 | 5-80 | 400 | 32-312 | 800-970 | 8 | 22 | 20 | 1800*5400 | 6260*2550*1780 |
| 4YK1854 | 4 | 38.88 | 5-80 | 400 | 32-336 | 800-970 | 8 | 30 | 20 | 1800*5400 | 6830*2550*2160 |
| 2YK2160 | 2 | 25.2 | 5-100 | 400 | 50-475 | 970 | 8 | 30 | 20 | 2100*6000 | 6720*2840*1530 |
| 4YK2160 | 4 | 50.4 | 5-100 | 400 | 50-497 | 970 | 8 | 37 | 20 | 2100*6000 | 7300*2840*2380 |
| 2YK2460 | 2 | 28.8 | 5-100 | 400 | 65-550 | 970 | 8 | 37 | 20 | 2400*6000 | 7020*3140*1530 |
| 3YK2460 | 3 | 43.2 | 5-100 | 400 | 70-620 | 970 | 8 | 37 | 20 | 2400*6000 | 7300*3140*1910 |
| 4YK2460 | 4 | 57.6 | 5-100 | 400 | 80-680 | 970 | 8 | 45 | 20 | 2400*6000 |

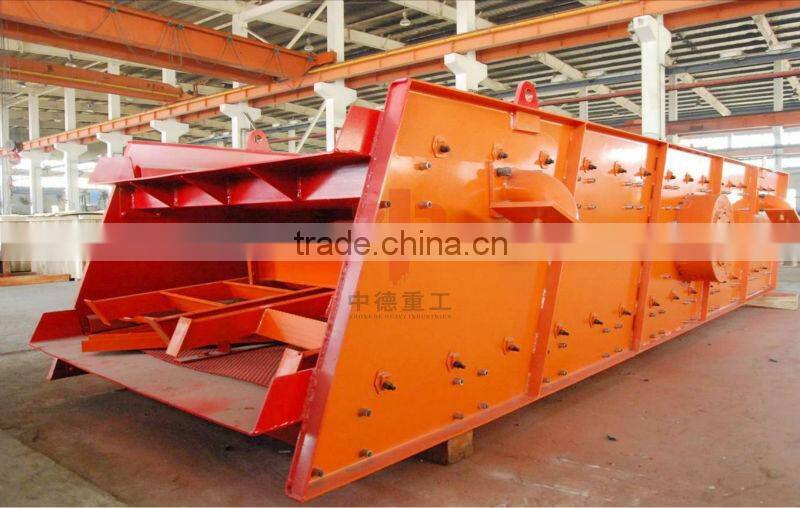

Pictures of sand vibrating screen
Services about sand vibrating screen
a. Installation and adjustment: Should the installation service is needed, technicist will be provided by supplier for buyer to assist the work such as welding connection of shell body.
b. Quality Guarantee: Three-guarantees of product and warranty period is one year.
c. Technical support is provided from the beginning to the end.
d. Spare parts are serviced for sale in the whole year

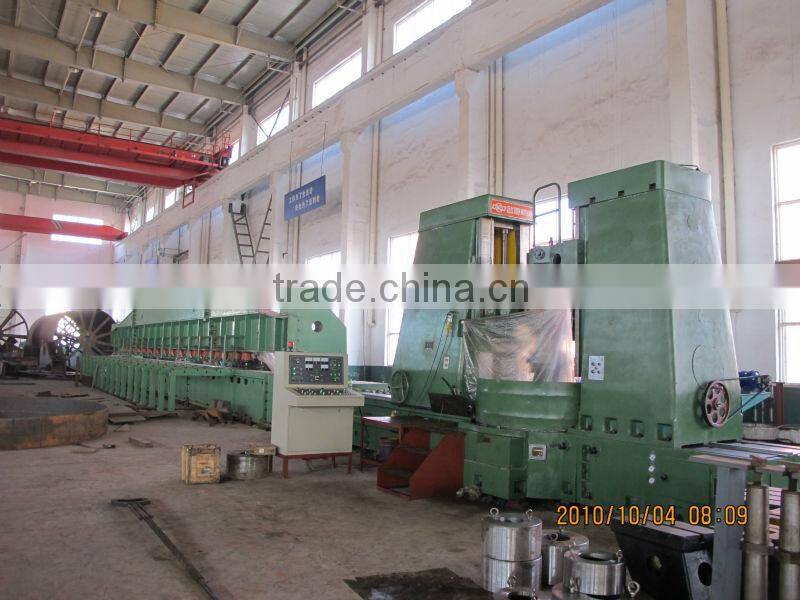

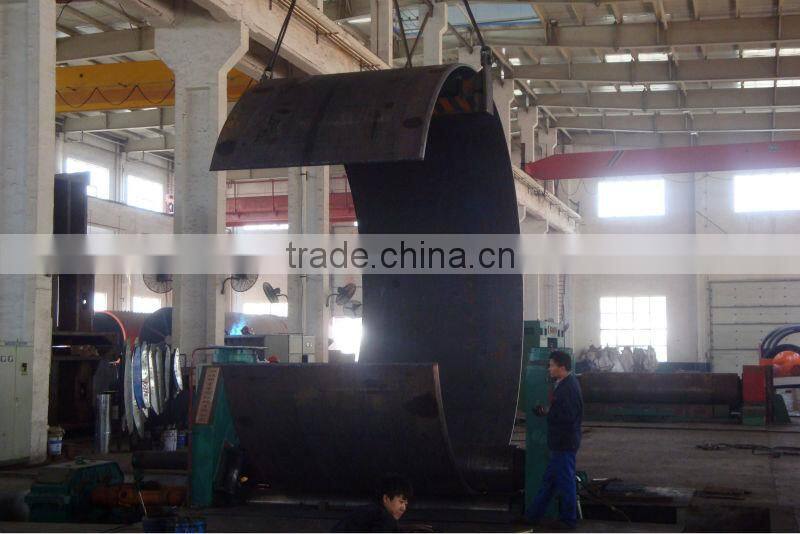

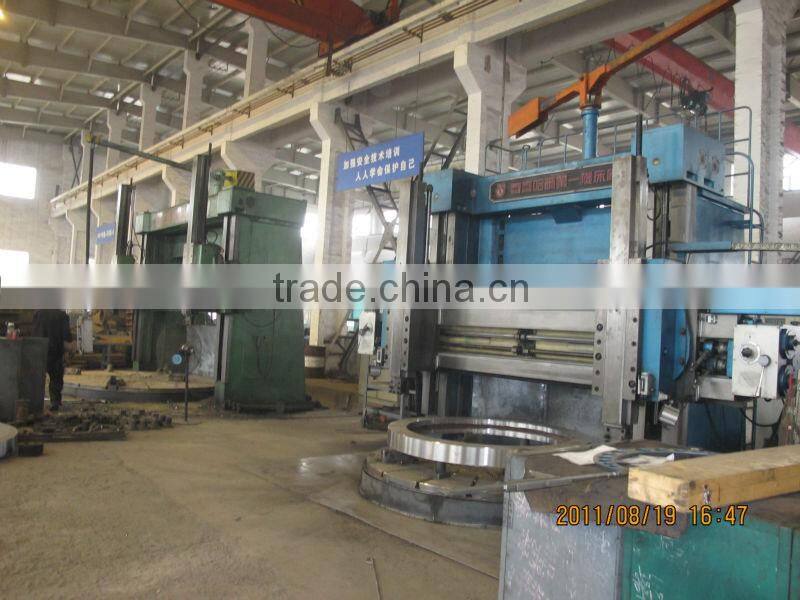

Company Introduction
Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959. Over the past fifty years, it has made significant contribution to the economic development in China. In 1995, it took the lead in changing into the joint stock company, which brought rapid development to the company .In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park.
Superiority of Zhongde
- World's leading service capability
- The best device management and practice guidances
- Fast, easy and convenient routine maintenance can reduce the downtime
- World's most advanced technology can customize high quality equipment for you
