Home > Products > Vibrating screen > linear vibrating screen for classifiting the different sizes of ores
linear vibrating screen for classifiting the different sizes of ores
- 200 Set / Sets per Month
- tianjin qingdao port
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Circular | Application: | Ore |
Place of Origin: | Henan, China | Brand Name: | ZHONGDE | Model Number: | 2YK1230 |
Voltage: | 380V | Power(W): | 7500 | Dimension(L*W*H): | 3430*1860*870mm |
Weight: | - | Certification: | ISO,BV,CE,TUV certificate | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Introduction of linear vibrating screen
The YK series of vibration screen moves on a circular motion. It is a multi-layer and high efficient vibrating screen.
Advantages of linear vibrating screen
Stable structure, strong exciting force, high efficiency, low noise pollution, easy to maintain and durability.
Circular vibrating screen has been widely used in mine, construction, transportation, energy and chemical industries.
Characteristics of linear vibrating screen
1) stable structure and strong exciting force
2) high efficiency and little noise pollution
3) handy maintenance and durability
4) Materials blocked in meshes can be automatically out;
5) Simple structure and easy to disassemble and replace;
6) Less electricity power consumption
Technical parameters of linear vibrating screen
Model | Sieve layer | Sieve area(m2) | Mesh size(mm) | Max. feeding size(mm) | Processing capacity(m3/h) | Vibrating power(r/min) | Motor power(kw) | Sieve obliquity(°) | Dimensions(l*w*h)(mm) |
2YK1225 | 2 | 6 | 4-50 | 400 | 8-60 | 800-970 | 5.5 | 20 | 2930*1860*870 |
2YK1230 | 2 | 7.2 | 4-50 | 400 | 12-78 | 800-970 | 7.5 | 20 | 3430*1860*870 |
2YK1237 | 2 | 8.88 | 4-50 | 400 | 15-86 | 800-970 | 7.5 | 20 | 4050*1860*870 |
3YK1237 | 3 | 13.22 | 4-50 | 400 | 16-90 | 800-970 | 7.5 | 20 | 4270*1860*1210 |
2YK1535 | 2 | 10.5 | 5-50 | 400 | 20-125 | 800-970 | 11 | 20 | 4120*2210*1230 |
3YK1535 | 3 | 15.75 | 5-50 | 400 | 21-125 | 800-970 | 11 | 20 | 4360*2210*1610 |
2YK1545 | 2 | 13.5 | 5-50 | 400 | 22-150 | 800-970 | 15 | 20 | 5120*2210*1230 |
4YK1545 | 4 | 27 | 5-50 | 400 | 22-155 | 800-970 | 18.5 | 20 | 5930*2210*2060 |
3YK1548 | 3 | 21.6 | 5-50 | 400 | 22.5-162 | 800-970 | 15 | 20 | 5660*2210*1610 |
4YK1548 | 4 | 28.8 | 5-50 | 400 | 22.5-162 | 800-970 | 18.5 | 20 | 6230*2210*2060 |
2YK1848 | 2 | 17.28 | 5-80 | 400 | 25-206 | 750 | 15 | 20 | 5420*2550*1420 |
4YK1848 | 4 | 34.54 | 5-80 | 400 | 32-285 | 750 | 22 | 20 | 6290*2550*2160 |
3YK1854 | 3 | 29.16 | 5-80 | 400 | 32-312 | 800-970 | 22 | 20 | 6260*2550*1780 |
4YK1854 | 4 | 38.88 | 5-80 | 400 | 32-336 | 800-970 | 30 | 20 | 6830*2550*2160 |
2YK2160 | 2 | 25.2 | 5-100 | 400 | 50-475 | 970 | 30 | 20 | 6720*2840*1530 |
4YK2160 | 4 | 50.4 | 5-100 | 400 | 50-497 | 970 | 37 | 20 | 7300*2840*2380 |
2YK2460 | 2 | 28.8 | 5-100 | 400 | 65-550 | 970 | 37 | 20 | 7020*3140*1530 |
3YK2460 | 3 | 43.2 | 5-100 | 400 | 70-620 | 970 | 37 | 20 | 7300*3140*1910 |
4YK2460 | 4 | 57.6 | 5-100 | 400 | 80-680 | 970 | 45 | 20 |

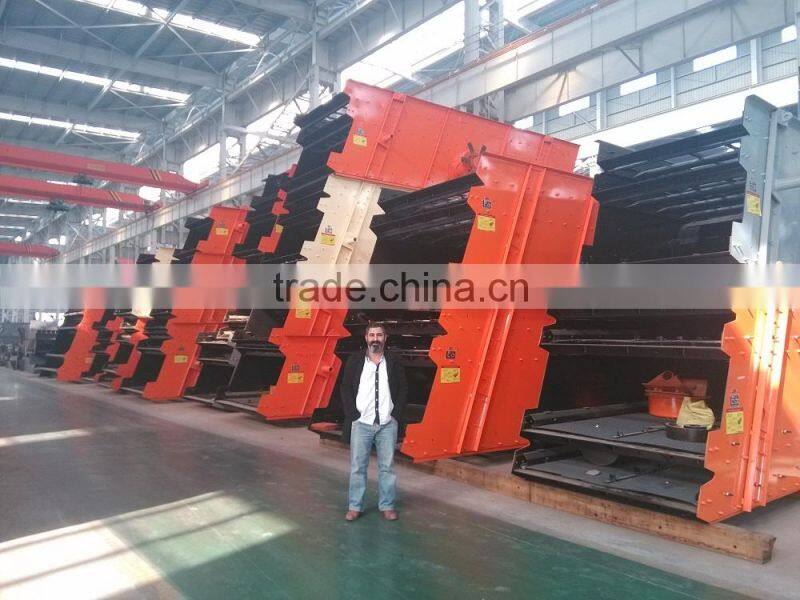

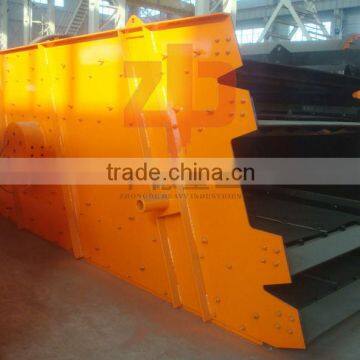

Pictures of linear vibrating screen
Services about linear vibrating screen
a. Installation and adjustment: Should the installation service is needed, technicist will be provided by supplier for buyer to assist the work such as welding connection of shell body.
b. Quality Guarantee: Three-guarantees of product and warranty period is one year.
c. Technical support is provided from the beginning to the end.
d. Spare parts are serviced for sale in the whole year
Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959. Over the past 50 years, Zhongde has made significant contribution to the economic development in China. In 1995, it took the lead in changing into the joint stock company, which had brought a rapid development to the company. In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park, Luoyang city, the middle of China.
We are a professional manufacturer of mining equipments, such as crusher, mining mill, tube mill, rotary kiln, cooler, rotary dryer, magnetic separator, flotation machine, thickener, etc. Our machines are widely used in the fields of mine, smelting, chemicals, building materials, coal, refractory materials, ceramics, etc. Moreover, technological designs on program, process flow, standard& non-standard parts are also provided from the beginning to the end for clients.
The total area of the three standard heavy-duty industrial workshops covers 70000 square meters. More than 500 sets advanced processing equipments, including 300 sets of high-precision digital control machine tools, large-sized processing equipment and special processing, riveting& installing machines, are introduced to guarantee for product qualityand company development.
In 2010, we have accessed the ISO9001:2008 certification, and in 2012 we have acquired the BVQI certificate. To establish the business with credit and honesty is our management belief all the time.
Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Superiority of Zhongde
- World's leading service capability
- The best device management and practice guidances
- Fast, easy and convenient routine maintenance can reduce the downtime
- World's most advanced technology can customize high quality equipment for you
Contact Us
- Luoyang Zhongde Heavy Industries Co., Ltd.
- Contact namePeter Li
- Phone86-379-67308060
- AddressLuoxin Industrial Park Luoyang,Henan
