Gold chrome concentrate table for sale
1. Description of gold chrome concentrate table for sale
Shaking table is one of the major gravity ore dressing machines, in some aspect it is the most important gravity
ore dressing machine. It was designed to concentrate the fine-grinding or micro- grinding rare metal & precious material. The shaking table separate the mineral granular based on the gravity differences between the different
materials inside the pulp.
2. Features of gold chrome concentrate table for sale
1.High recovery ratio
2.High concentration ratio
3.Easy installation
4.Simple operation
5. Long working life
6. Adjustable stroke length

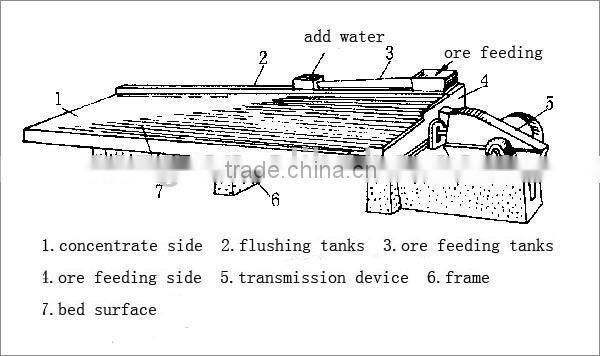

3.Working principles of gold chrome concentrate table for sale
The working principle of shaking table is to use the combined action of the specific gravity difference of sorted
minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to
allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
Pre-sales services
1.Guide customers to choose products which are best suitable for them.
2.Design and manufacture tailor-made products according to the specific needs of customers.
Sales services
1.Strict inspection before the delivery of equipment.
2.Arrange the delivering of goods in accordance with contract.
After sales services
1.Designate special after-sales service personnel to instruct customers to install equipment.
2.For the problems, our company guarantee to provide resolutions within 24 hours.
Henan Songshan Heavy Industry Co., Ltd., a state designated manufacturer by Construction Department
has a history of over 30 years in machine manufacturing.
We mainly specialize in manufacturing beneficiating, crushing and milling machines, such as Jaw Crushers, Impact Crushers, Double Roll Crushers, Sand Making Machines, Raymond Mills,
Superfine Mills, Ball Mills, Flotation Separators, Magnetic Separators, Shaking Tables, and Dryers.
Our products have received the ministerial and provincial honors. Due to the high quality and perfect after sales service, our products have won trust and good comments from our customers and taken the lead in the machinery fields.
Please don’t hesitate to inform us:
1.What's kind of your raw material?
2.What's your raw stone size?
3.What's the capacity ? (T/H)
4.What's the final ore concentrate grade request?
5. Others?
Other types of shaking table for your reference
Model |
Coarse sand shaking table |
Fine sand shaking table |
Slime shaking table |
Fine mud shaking table |
|
Feeding Size (mm) |
2~0.5 |
0.5~0.074 |
0.07~0.019 |
0.019~0.0037 |
|
Capacity(tin ore) (t/h) |
20~35 |
10~20 |
3~10 |
5~15 |
|
Table surface size (mm) |
4395*1825 |
4395*1825 |
4395*1825 |
4395*1825 |
|
Table surface area (m2) |
7.4 |
7.4 |
7.4 |
7.4 |
Stroke(mm) |
16~22 |
11~16 |
8~11 |
5~7 |
|
Frequency of stroke (min-1) |
270~290 |
290~320 |
320~360 |
480~520 |
|
Table surface transverse slope(°) |
2.5~4.5 |
1.5~3.5 |
1~2 |
1~1.15 |
Power(kw) |
1.1 |
1.1 |
1.1 |
1.1 |
|
Overall dimension (mm) |
5446*1825*1212 |
5446*1825*1227 |
5446*1825*1203 |
5446*2338*1203 |
Total weight (kg) |
1015 |
1030 |
1065 |
1065 |
