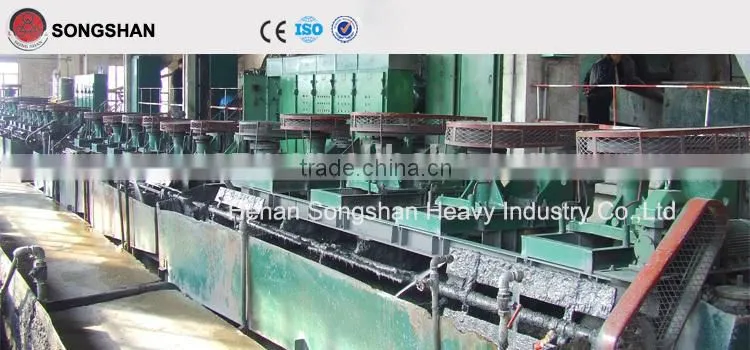

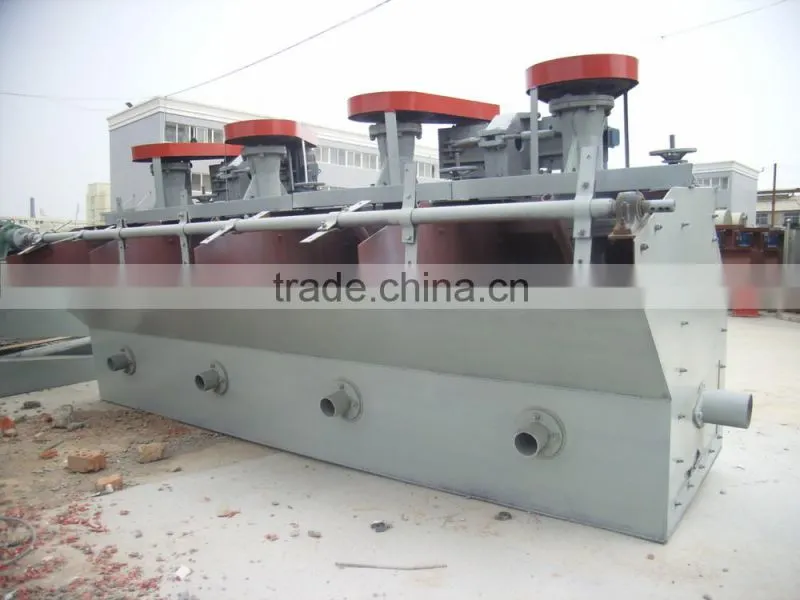

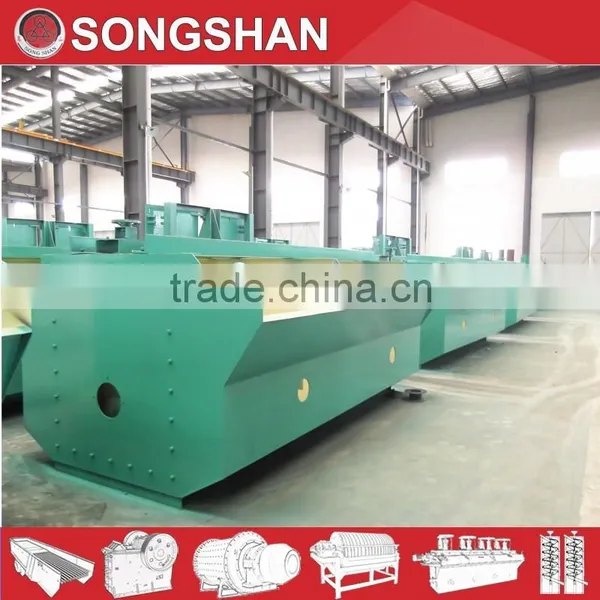

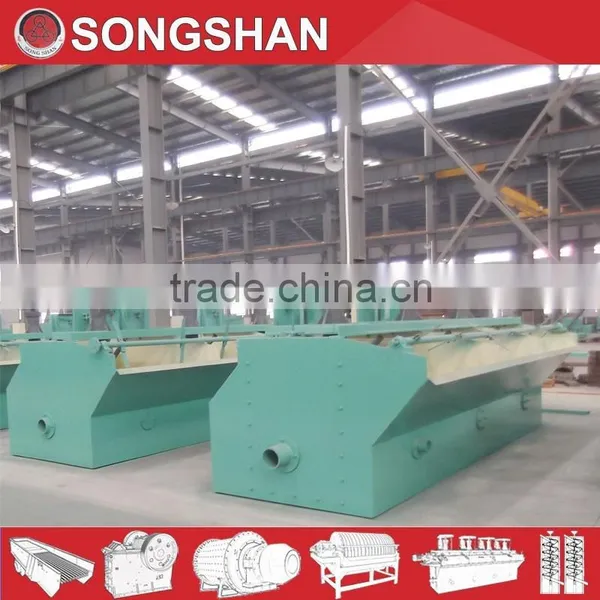

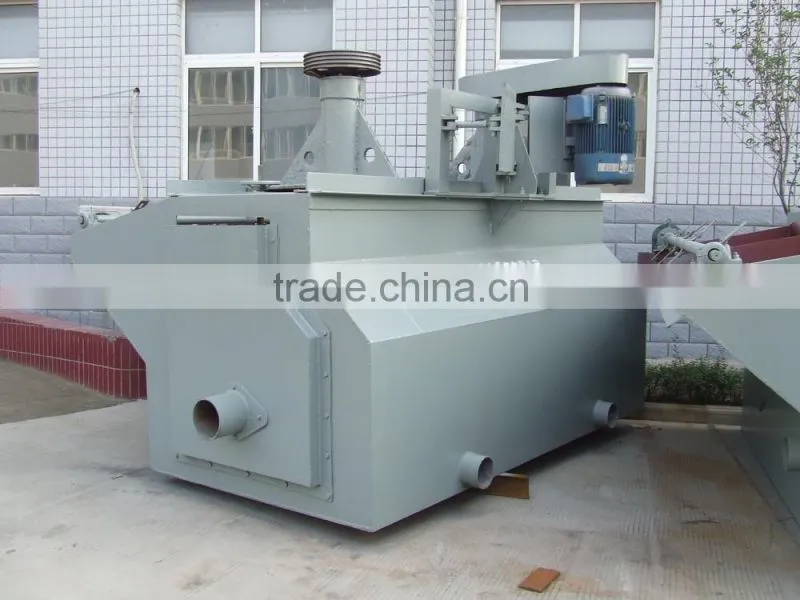

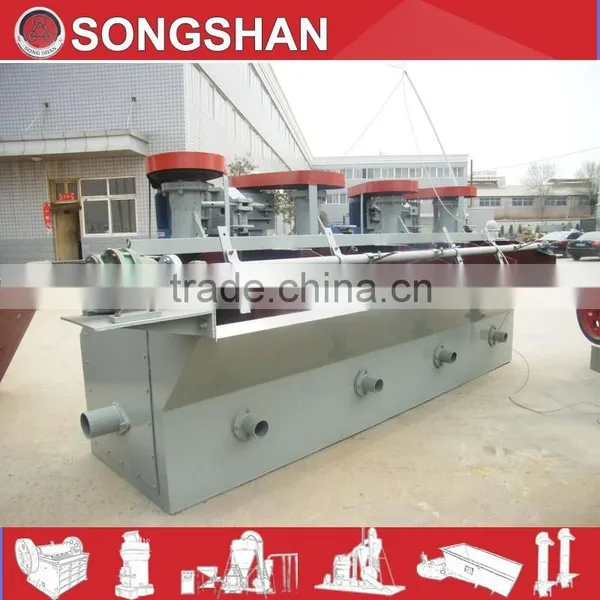

Gold ore dressing flotation separator
1. Description of the gold ore dressing flotation separator
Gold ore dressing flotation separator can be used to separate nonferrous metal, ferrous metal,
heavy metal, nonmetallic mine,chemical material and recycling minerals. Each chute can inhale gas, sink
magma,separate. No assisting equipment are required, and flotation machine must be installed horizontally.

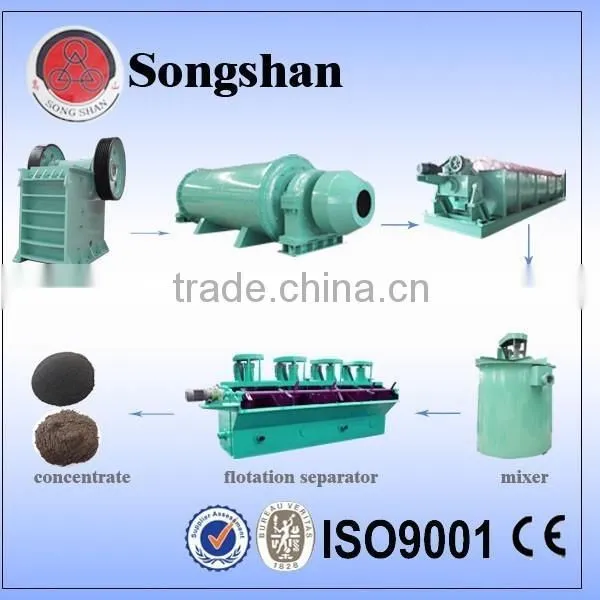

Gold ore dressing flotation separator is easy to change the flow chart.The cycling way of magma is
very reasonable.
2. Features of the gold ore dressing flotation separator
1. Large air absorption capacity.
2. Low energy consumption.
3. The circulation of mineral slurry is reasonable.

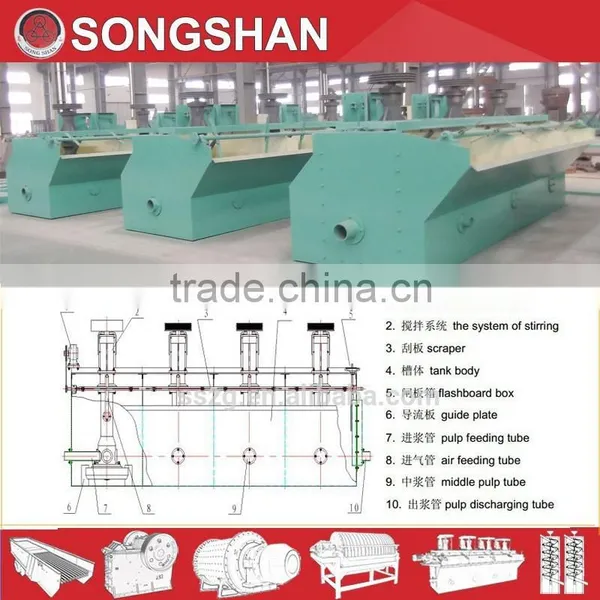

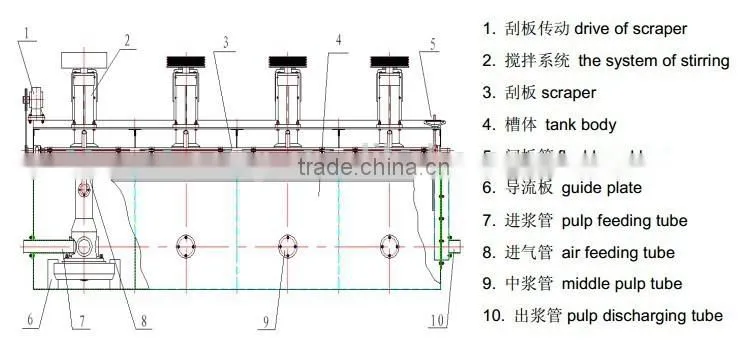

3.Operating principles of the gold ore dressing flotation separator
Gold ore dressing flotation separator utilizes the vertical circulation of mineral slurry and low-
pressure blower to force air into the machine, which can improve flotation efficiency.
The low pressure air forced by blower is evenly distributed in the whole flotation trough through
impeller and cover board vane. The mineralized froth lifts up with the vertical circulating flow and enters
the separation layer of the upside of the flotation trough, so it is separated from the non-floating gangue.
Pre-sales services
1.Guide customers to choose products which are best suitable for them.
2.Design and manufacture tailor-made products according to the specific needs of customers.
Sales services
1.Strict inspection before the delivery of equipment.

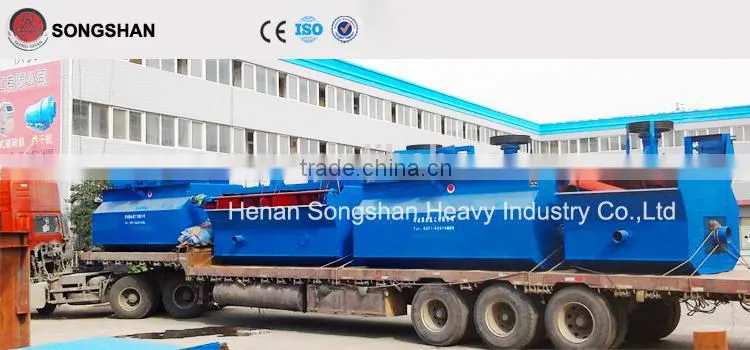

2.Arrange the delivering of goods in accordance with contract.
After sales services
1.Designate special after-sales service personnel to instruct customers to install equipment.
2.For the problems, our company guarantee to provide resolutions within 24 hours.
Henan Songshan Heavy Industry Co., Ltd., a state designated manufacturer by National Construction
Department has a history of over 30 years in machine manufacturing.
We mainly specialize in manufacturing beneficiating , crushing and milling machines, such
as Jaw Crushers, Impact Crushers, Cone Crushers,Double Roller Crushers, Raymond Mills,
Ultrafine Mills,Ball Mills, Flotation Separators, Magnetic Separators, Rotary kilns,Rotary
Dryers, Shaking Tables and Sand Making Machines.
Our products have received the ministerial and provincial honors. Due to the high quality and perfect
after sales service, our products have won trust and good comments from our customers and taken the
lead in the machinery fields.
Company's certificate
Customer visiting
Please don’t hesitate to inform us:
1.What's kind of your raw material?
2.Is there any ore test report ?
3.What's the capacity of the machine do you need? (T/H)
4.What's the final ore concentrade grade do you need?
5.What is the input size of the material?
6.What is the output size of the product?
Other types of flotation machine for your reference
Model |
Effective cubage (m³) |
Capacity (t/h) |
Spindle power (KW) |
Spindle rotary speed(r/min) |
Scraper rotary speed (r/min) |
Scraper power (KW) |
Trough size (mm) |
Unit Weight per trough (kg) |
SF-0.37 |
0.37 |
0.2~0.4 |
1.5 |
386 |
17 |
0.55 |
700*700*750 |
468 |
SF-0.7 |
0.7 |
0.3~0.9 |
3 |
400 |
16 |
0.55 |
820*900*950 |
805 |
SF-1.2 |
1.2 |
0.6~1.2 |
5.5 |
340 |
16 |
1.1 |
1100*1100*1100 |
1373 |
SF-2 |
2 |
0.8~2 |
7.5 |
340 |
16 |
1.1 |
1400*1400*1150 |
1750 |
SF-2.8 |
2.8 |
1.0~3.0 |
11 |
268 |
16 |
1.5 |
1700*1600*1150 |
2138 |
SF-4 |
4 |
1.0~3.0 |
15 |
226 |
16 |
1.5 |
1850*2050*1200 |
2583 |
SF-8 |
8 |
4.0~8.0 |
30 |
191 |
16 |
1.5 |
2200*2900*1400 |
4129 |
SF-10 |
10 |
5.0~10 |
30 |
191 |
16 |
1.5 |
2200*2900*1700 |
4129 |
|
XJK-0.13 (1A) |
0.13 |
0.05~0.16 |
1.5 |
593 |
17.5 |
0.55 |
500*500*550 |
320 |
|
XJK-0.23 (2A) |
0.23 |
0.12~0.28 |
1.5 |
504 |
17.5 |
0.55 |
600*600*650 |
390 |
|
XJK-0.35 (3A) |
0.35 |
0.12~0.28 |
1.5 |
483 |
17.5 |
0.55 |
700*700*710 |
430 |
|
XJK-0.62 (4A) |
0.62 |
0.12~0.28 |
3 |
400 |
16 |
1.1 |
900*820*850 |
860 |
|
XJK-1.1 (5A) |
1.1 |
0.6~1.6 |
5.5 |
330 |
16 |
1.1 |
1100*1000*1000 |
1390 |
|
XJK-2.8 (6A) |
2.8 |
1.5~3.5 |
11 |
280 |
16 |
1.1 |
1750*1600*1100 |
2430 |
|
XJK-5.8 (7A) |
5.8 |
5.0~7.0 |
11 |
240 |
16 |
1.1 |
2200*2200*1200 |
3533 |
