Specifications
portable ultrasonic flow meter price1 professional manufacturer
2 quick shipment
3 CEcertification
[ Feature ]
l High Accuracy measuring
Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%
l Non-intrusive measuring
Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
l Wide measuring range
Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm
l Chinese & English menu
Chinese & English display, easy to operate.
l Built-in printer
Built-in mini thermal printer with instant and timing print function
l Built-in data logger
Uplink over 20 measuring data to computer or SD card, convenient for the data processing and applications
l Multi-signal input &output
l Multiple signal interface easy for input and output signals
l Optional Transducer

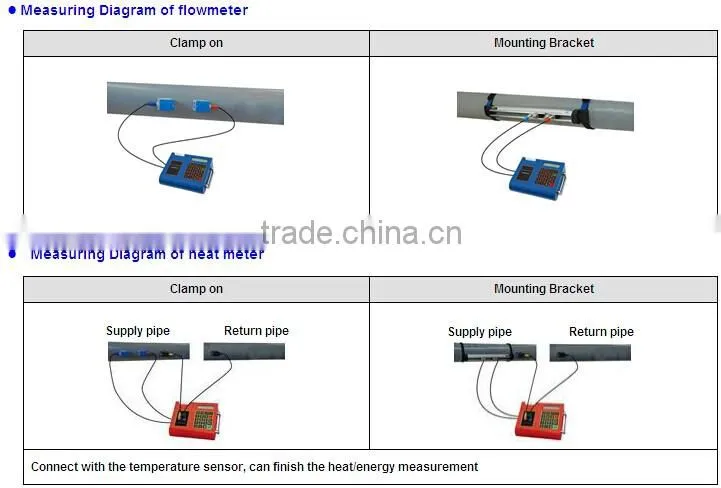

Clamp on Transducer |
Clamp on sensor with the magnet, you can install the transducer very easily when measuring the carbon steel pipes and iron pipes,no need cut off water and no pressure loss |
|
Mounting Bracket Transducer |
The fixtures and slides adopt full aluminum material,with the feature of light weight and firm structure.The Metric/British system scale can improve installation accuracy. |
l Optional Temperature Transducer
|
Clamp on temperature transducer PT100 |
No need to cut off water, no pressure loss, easy for installation
|
[ Main Feature ]
Items |
Specifications |
Main unit |
2 line x 20 character LCD with backlight Working temperature: -25--60°C Mini thermal printer with 24 line character output 4x4+2 pushbutton keypad RS-485 interface for networking |
Signal input & output |
1 channel 4-20mA output 1channel OCT output 1channel relay output 3 channel 4-20mA input |
Medium |
Water (hot water, chilled water, city water, sea water, waste water, etc.); Sewage with small particle content; Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.); Chemicals (alcohol, acids, etc.); Plant effluent; Beverage, liquid food; Ultra-pure liquids; Solvents and other liquids |
Flow rate Range |
0~±10m/s |
Accuracy |
Better than ±1% |
Battery |
Built-in rechargeable Ni-MH rechargeable battery, provide over 20 hours of continuous operation |
Power Consumption |
1.5W |
Power supply |
Built-in rechargeable Ni-MH battery (for 20 hours operation) or AC 220V |
Weight & Dimensions |
2.5kg ; 225*180*67mm: |
Remarks |
With a high strength carrying case suitable for normal and harsh environment |
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this Handheld Ultrasonic Flowmeter , please visit the website
