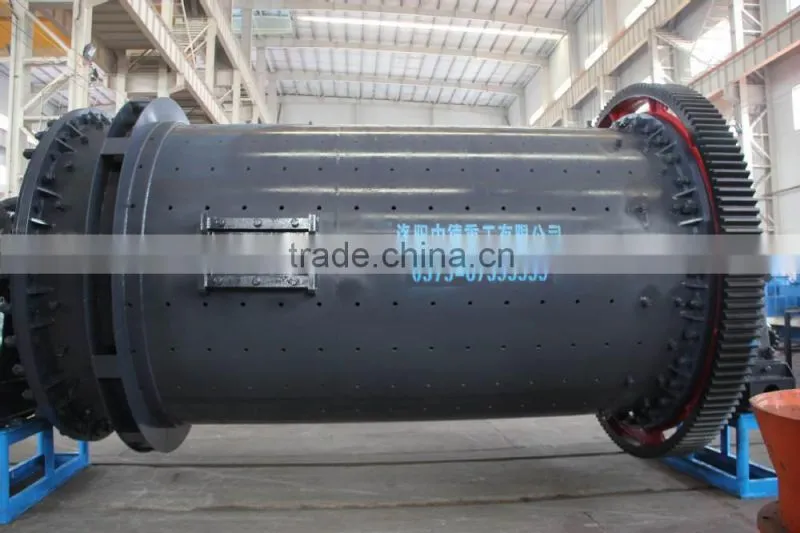

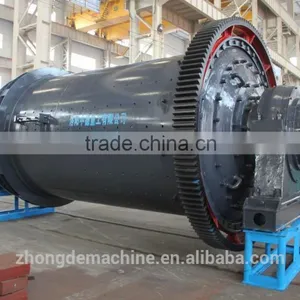

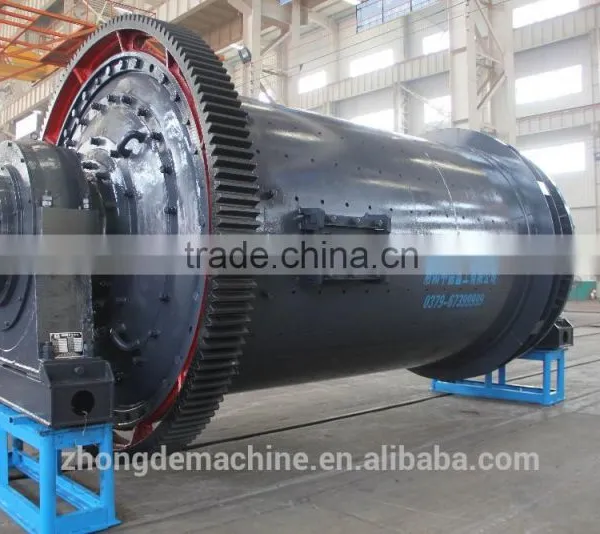

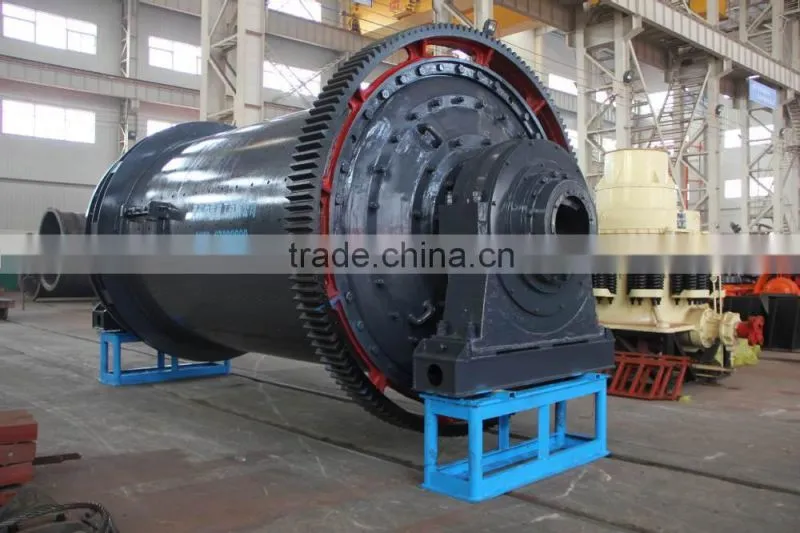

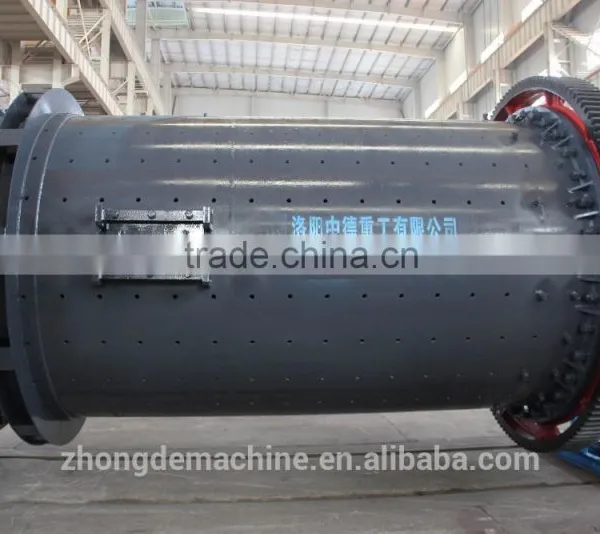

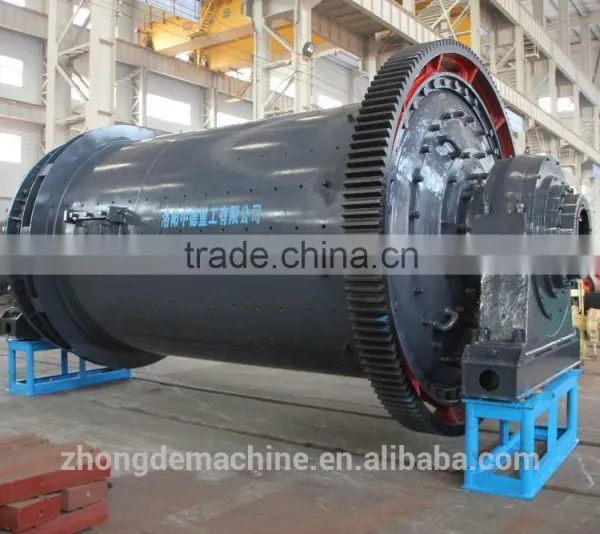

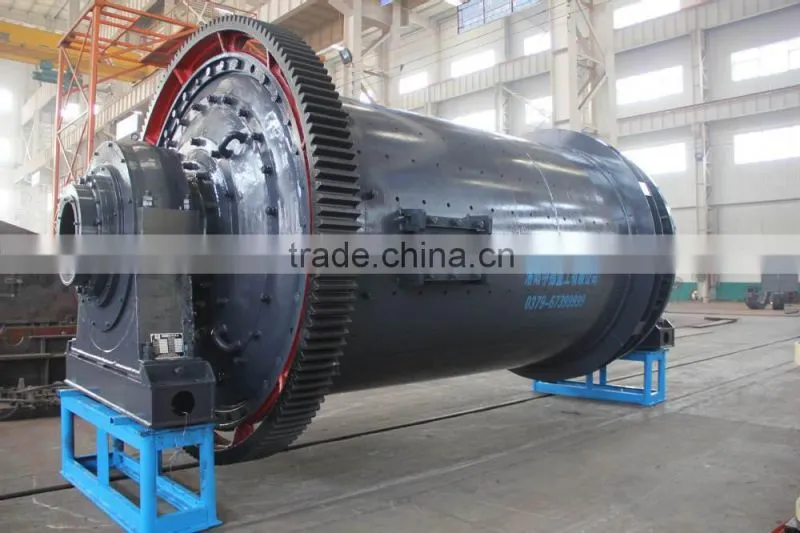

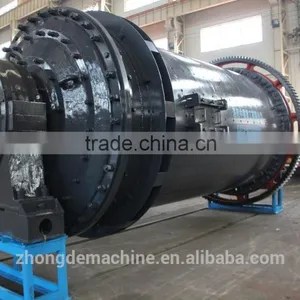

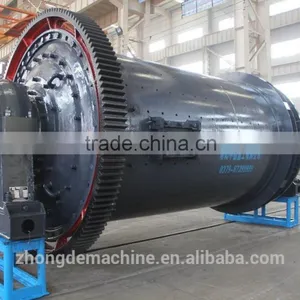

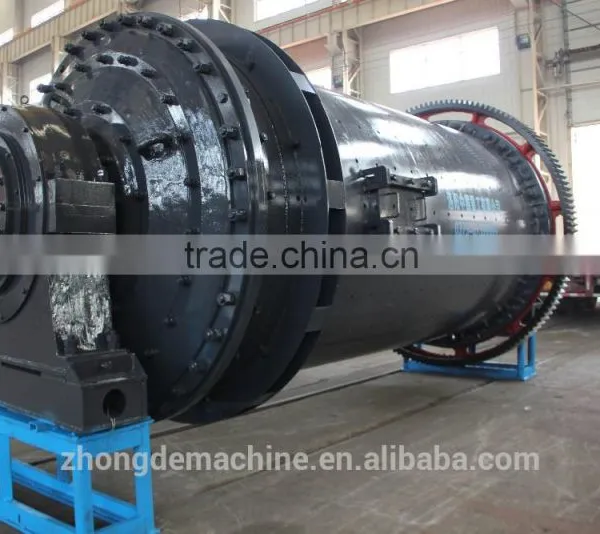

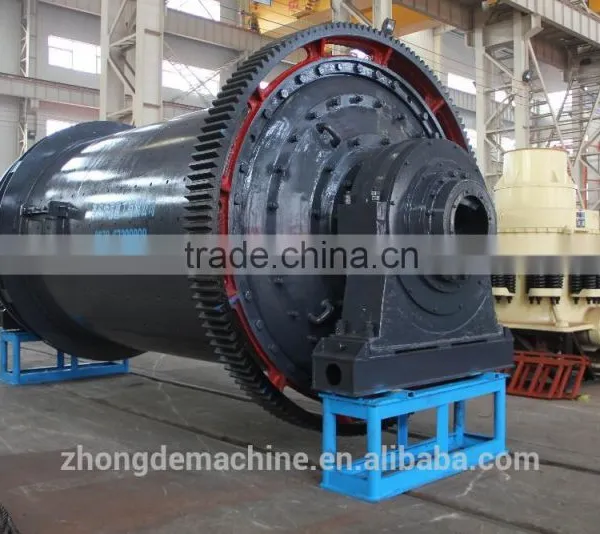

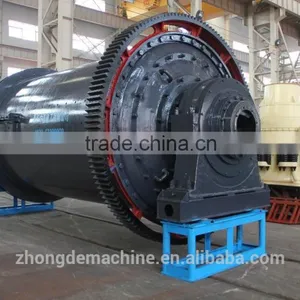

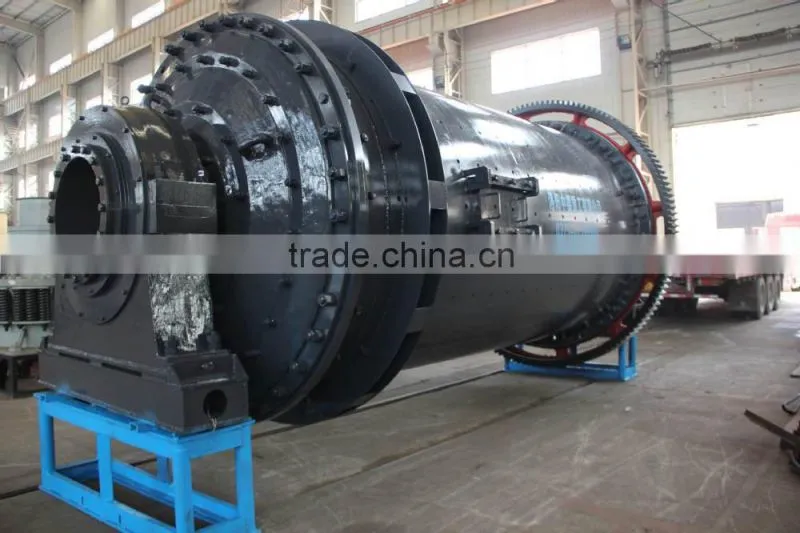

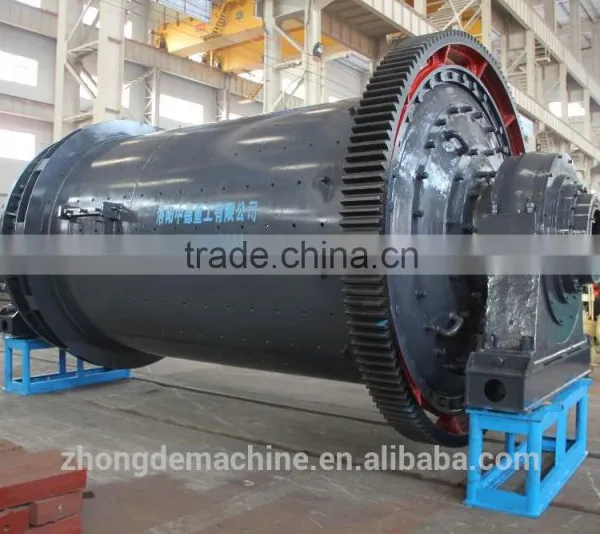

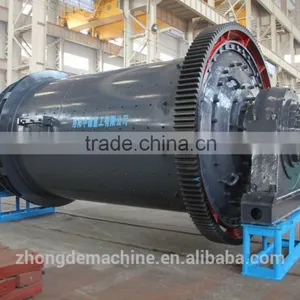

Help CenterMBS(Y)-3230 ROD MILL
Related Products
-
MBS(Y)-3245 ROD MILLUS$ 1,000 - 9,999MOQ: 1 Set -
MBS(Y)-3650 ROD MILLUS$ 1,000 - 9,999MOQ: 1 Set
-
MBS(Y)-3660 ROD MILLUS$ 1,000 - 9,999MOQ: 1 Set
-
High Quality Rod Mill for Metal Rock /albite/potash FeldsparUS$ 9,999 - 99,999MOQ: 1 Set
-
Grinding Machine Price in IndiaUS$ 1,000 - 9,999MOQ: 1 Set
Introduction:
Rod Mill has two types to choose, dry and wet .Users could choose one of them depending on the requirement.
Application:
1) The company uses the advanced output controllable technology, combining the milling material to set the suitable miller.
2) It changes the traditional surface contact into line contact, to make the output granularity evener, high product more efficiently.
3) It also can be widely used in chemical industry, metallurgy, glasses industry which has rigid requirement of the evenness for milling after milling, sand making of building sand in recent years.
Technical Parameter Table of Rod Mill
Model |
Cylinder |
Effective volume (m3) |
Max rod loading (t) |
Speed (r/min) |
Capacity (t/h) |
Discharging size (mm) |
Main Motor (KW) |
Total weight ( t ) |
||
Diameter(mm) |
Length (mm) |
|||||||||
MBS(Y)-1530 |
1500 |
3000 |
4.5 |
8 |
27 |
15~6 |
2.0~0.15 |
90 |
18 |
|
MBS(Y)-1532 |
1500 |
3200 |
4.8 |
8.5 |
27 |
16~6.5 |
2.0~0.15 |
90 |
19 |
|
MBS(Y)-1830 |
1830 |
3000 |
6.7 |
14 |
23.7 |
20~9 |
2.0~0.15 |
155 |
34.5 |
|
MBS(Y)-1832 |
1830 |
3200 |
7.2 |
15 |
23.7 |
22~10 |
2.0~0.15 |
155~180 |
36 |
|
MBS(Y)-2130 |
2100 |
3000 |
8.8 |
18 |
21.4 |
30~12 |
2.0~0.15 |
210 |
45 |
|
MBS(Y)-2132 |
2100 |
3200 |
9.6 |
20 |
21.4 |
32~12.8 |
2.0~0.15 |
210 |
47 |
|
MBS(Y)-2136 |
2100 |
3600 |
11 |
23 |
21.4 |
35~14 |
2.0~0.15 |
245 |
48.5 |
|
MBS(Y)-2230 |
2200 |
3000 |
10 |
21 |
19 |
34~13 |
2.0~0.15 |
245 |
50 |
|
MBS(Y)-2236 |
2200 |
3600 |
12 |
25 |
19 |
40~16 |
2.0~0.15 |
245 |
52 |
|
MBS(Y)-2430 |
2400 |
3000 |
12 |
25 |
19 |
40~17 |
2.0~0.15 |
280 |
53.5 |
|
MBS(Y)-2436 |
2400 |
3600 |
14 |
29 |
19 |
47~19 |
2.0~0.15 |
320 |
61 |
|
MBS(Y)-2730 |
2700 |
3000 |
15.5 |
32.5 |
18.4 |
55~21 |
2.0~0.15 |
355 |
72 |
|
MBS(Y)-2736 |
2700 |
3600 |
18 |
38 |
18.4 |
65~24 |
2.0~0.15 |
400 |
89 |
|
MBS(Y)-2740 |
2700 |
4000 |
20.6 |
43 |
18.4 |
80~28 |
2.0~0.15 |
480 |
95 |
|
MBS(Y)-3040 |
3000 |
4000 |
25.7 |
54 |
17 |
90~34 |
2.0~0.15 |
630 |
114 |
|
MBS(Y)-3230 |
3200 |
3000 |
21 |
44 |
16.4 |
73~28 |
2.0~0.15 |
500 |
116 |
|
MBS(Y)-3245 |
3200 |
4500 |
32 |
67 |
16.4 |
110~44 |
2.0~0.15 |
800 |
132 |
|
MBS(Y)-3642 |
3600 |
4200 |
38 |
79.5 |
15.8 |
120~50 |
2.0~0.15 |
1000 |
153 |
|
MBS(Y)-3645 |
3600 |
4500 |
40.8 |
85 |
15.8 |
140~56 |
2.0~0.15 |
1000~1250 |
168 |
|
MBS(Y)-3650 |
3600 |
5000 |
46 |
96 |
15.8 |
155~65 |
2.0~0.15 |
1250 |
176 |
|
MBS(Y)-3660 |
3600 |
6000 |
54 |
113 |
15.8 |
190~80 |
2.0~0.15 |
1400 |
198 |
|
