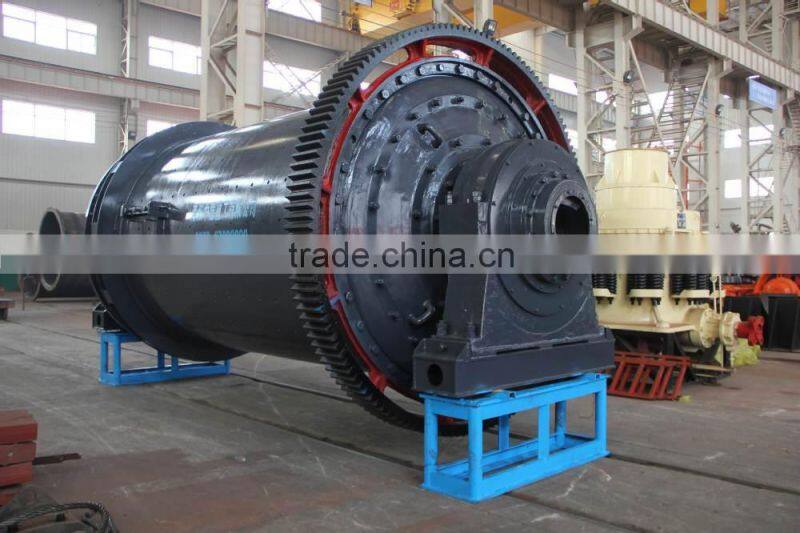

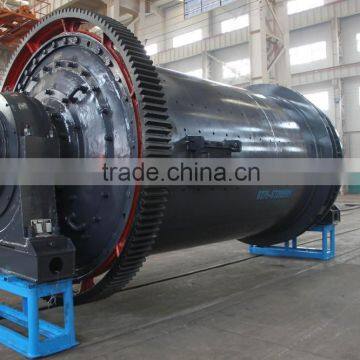

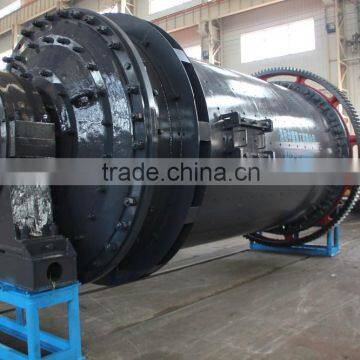

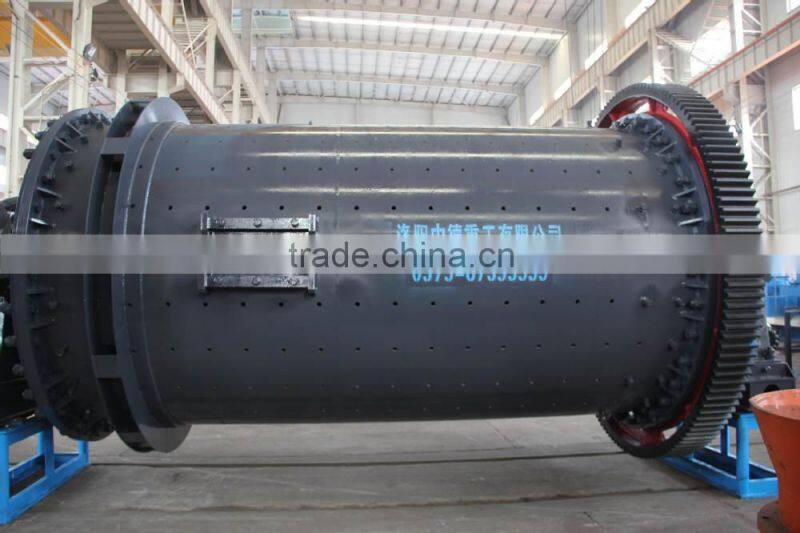

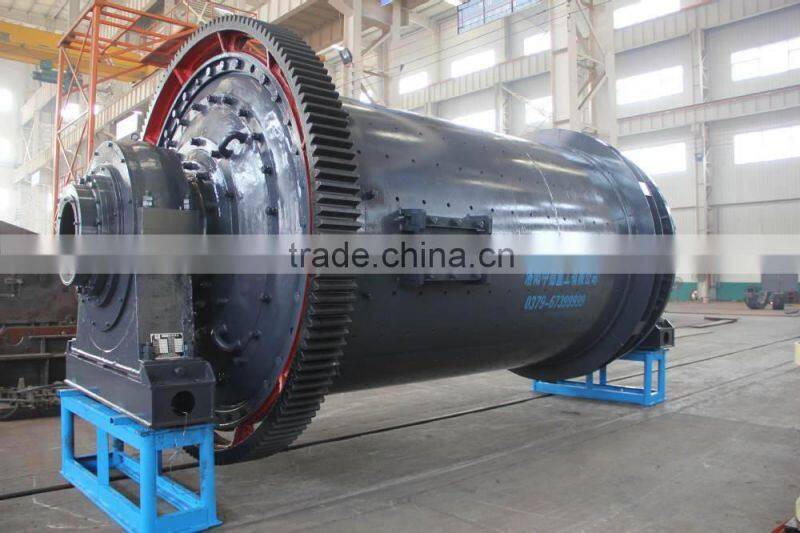

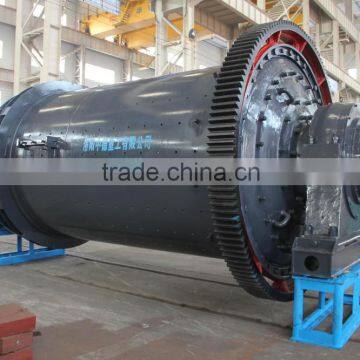

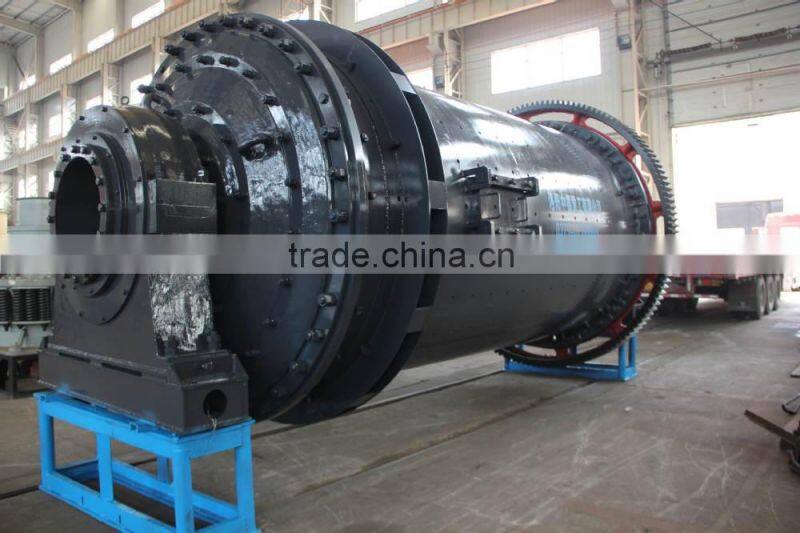

MBS(Y)-1530 ROD MILL

MBS(Y)-1530 ROD MILL thumbnail-1
MBS(Y)-1530 ROD MILL thumbnail-2
MBS(Y)-1530 ROD MILL thumbnail-3
MBS(Y)-1530 ROD MILL thumbnail-4
MBS(Y)-1530 ROD MILL thumbnail-5
MBS(Y)-1530 ROD MILL thumbnail-6
MBS(Y)-1530 ROD MILL photo-1
MBS(Y)-1530 ROD MILL photo-2
MBS(Y)-1530 ROD MILL photo-3
MBS(Y)-1530 ROD MILL photo-4
MBS(Y)-1530 ROD MILL photo-5
MBS(Y)-1530 ROD MILL photo-6
US$ 1,000 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, ROD MILL
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Luoyang Zhongde Heavy Industries Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, ROD MILL
Motor Type AC Motor
Power(W) 90000
Capacity(t/h) 15-6
Place of Origin China
Brand Name ZHONGDE
Model Number MBS(Y)-1530
Dimension(L*W*H) 1500*3000MM
Weight -
Certification TUV,CE,ISO
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas



Product Description



Introduction:

Rod Mill has two types to choose, dry and wet .Users could choose one of them depending on the requirement.

Application:

1) The company uses the advanced output controllable technology, combining the milling material to set the suitable miller. 2(

2) It changes the traditional surface contact into line contact, to make the output granularity evener, high product more efficiently.

3) It also can be widely used in chemical industry, metallurgy, glasses industry which has rigid requirement of the evenness for milling after milling, sand making of building sand in recent years.





Technical Parameter Table of Rod Mill



Model

Cylinder

Effective volume  (m3)

Max rod loading     (t)

Speed    (r/min)

Capacity            (t/h)

Discharging size        (mm)

Main Motor (KW)

Total weight   ( t )




Diameter(mm)

Length   (mm)




MBS(Y)-1530

1500

3000

4.5

8

27

15~6

2.0~0.15

90

18



MBS(Y)-1532

1500

3200

4.8

8.5

27

16~6.5

2.0~0.15

90

19



MBS(Y)-1830

1830

3000

6.7

14

23.7

20~9

2.0~0.15

155

34.5



MBS(Y)-1832

1830

3200

7.2

15

23.7

22~10

2.0~0.15

155~180

36



MBS(Y)-2130

2100

3000

8.8

18

21.4

30~12

2.0~0.15

210

45



MBS(Y)-2132

2100

3200

9.6

20

21.4

32~12.8

2.0~0.15

210

47



MBS(Y)-2136

2100

3600

11

23

21.4

35~14

2.0~0.15

245

48.5



MBS(Y)-2230

2200

3000

10

21

19

34~13

2.0~0.15

245

50



MBS(Y)-2236

2200

3600

12

25

19

40~16

2.0~0.15

245

52



MBS(Y)-2430

2400

3000

12

25

19

40~17

2.0~0.15

280

53.5



MBS(Y)-2436

2400

3600

14

29

19

47~19

2.0~0.15

320

61



MBS(Y)-2730

2700

3000

15.5

32.5

18.4

55~21

2.0~0.15

355

72



MBS(Y)-2736

2700

3600

18

38

18.4

65~24

2.0~0.15

400

89



MBS(Y)-2740

2700

4000

20.6

43

18.4

80~28

2.0~0.15

480

95



MBS(Y)-3040

3000

4000

25.7

54

17

90~34

2.0~0.15

630

114



MBS(Y)-3230

3200

3000

21

44

16.4

73~28

2.0~0.15

500

116



MBS(Y)-3245

3200

4500

32

67

16.4

110~44

2.0~0.15

800

132



MBS(Y)-3642

3600

4200

38

79.5

15.8

120~50

2.0~0.15

1000

153



MBS(Y)-3645

3600

4500

40.8

85

15.8

140~56

2.0~0.15

1000~1250

168



MBS(Y)-3650

3600

5000

46

96

15.8

155~65

2.0~0.15

1250

176



MBS(Y)-3660

3600

6000

54

113

15.8

190~80

2.0~0.15

1400

198





 MBS(Y)-1530 ROD MILLMBS(Y)-1530 ROD MILLMBS(Y)-1530 ROD MILLMBS(Y)-1530 ROD MILL
