Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Mill > High Quality Energy Saving Rod Mill / High Efficiency Sand Making Machine
High Quality Energy Saving Rod Mill / High Efficiency Sand Making Machine
US$ 30,000 - 38,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Rod mill
Motor Type:
AC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cement Mill Used in Building MaterialUS$ 1,000 - 9,999MOQ: 1 Set -
Industrial Wire Rod Mill Price With High Capacity and Good QualityUS$ 30,000 - 38,000MOQ: 1 Set
-
Wire Rod Mill Price for Copper,Quartz,Stone,Cement,Building MaterialUS$ 30,000 - 38,000MOQ: 1 Set
-
2014 Zhongde Leading Wire Rod Mill Price for Iron OreUS$ 30,000 - 38,000MOQ: 1 Set
-
Granite Grinding Machine/ball Mill From China SupplierUS$ 1,000 - 9,999MOQ: 1 Set
Condition
New
Type
Other, Rod mill
Motor Type
AC Motor
Power(W)
130000w
Capacity(t/h)
20-9t/h
Place of Origin
Henan, China
Brand Name
zhongde
Model Number
MBS-1830 rod mill
Dimension(L*W*H)
refer to specification
Weight
refer to specification
Certification
CE/ISO
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Customized Wet or dry ball mill2.Professional manufacture with 50 years
3.Durable liner and discharging evenly
Product Description
Rod mill introduction:
Rod mill can achieve selective crushing,commonly used in the introdustries,which require final product to be uniform size,little over-crushed particle size, such as metal rock,quartz sand,albite,potash feldspar,manual construct sand making,water-coal-slurry making industry.
Basically, rod mill has the similiar structure with ball mill. The main difference is: the grinding medium of rod mill is a long round rod, while the grinding medium of ball mill is ball. They are also different in the grinding fom of grinnnging medium. The crushing process of rod mill is relized by line contact between rods. Thus the crushing is selective, and then small ones. So, compared to ball mill, the fineness of final products processed by rod mill is even.
Rod mill application:
- Rod mill is used in manufacture industries;
- Rod mill is used in refractory material, fertilizer, ferrous metal;
- Rod mill is used in cement, silicate, new building material;
- Rod mill is used in nonferrous metal and glass ceramics;
- Rod mill is used in dry and wet grinding for all kinds of ores and other grind-able materials.
Features of rod mill:
The rod mill, with compact structure, is easy to install & maintain, steady in running, and widely used for grind limestone, phosphate ore and other grindable materials of different hardness. The performance is advanced in domestic market. Wear parts are easy to change.
Rod mill teremeter:
| Model | Cylinder diameter(mm) | Cylinder length(mm) | Effective volume(m³) | Max. rod loading(t) | Speed(r/min) | Capacity(t/h) | Discharging size(mm) | Main power(KW) |
| MBS(Y)- 1530 | 1500 | 3000 | 4.5 | 8 | 27 | 15-6 | 2.0-0.15 | 90 |
| MBS(Y)- 1532 | 1500 | 3200 | 4.8 | 8.5 | 27 | 16-6.5 | 2.0-0.15 | 90 |
| MBS(Y)- 1830 | 1830 | 3000 | 6.7 | 12 | 23.7 | 20-9 | 2.0-0.15 | 130 |
| MBS(Y)- 1832 | 1830 | 3200 | 7.2 | 12.6 | 23.7 | 22-10 | 2.0-0.15 | 130 |
| MBS(Y)- 2130 | 2100 | 3000 | 8.8 | 18 | 21.4 | 30-12 | 2.0-0.15 | 180 |
| MBS(Y)- 2132 | 2100 | 3200 | 9.6 | 18.5 | 21.4 | 32-12.8 | 2.0-0.15 | 180 |
| MBS(Y)- 2136 | 2100 | 3600 | 11 | 20 | 21.4 | 35-14 | 2.0-0.15 | 210 |
| MBS(Y)- 2230 | 2200 | 3000 | 10 | 20.5 | 19 | 34-13 | 2.0-0.15 | 210 |
| MBS(Y)- 2236 | 2200 | 3600 | 12 | 24 | 19 | 40-16 | 2.0-0.15 | 245 |
| MBS(Y)- 2430 | 2400 | 3000 | 12 | 24.5 | 19 | 40-17 | 2.0-0.15 | 245 |
| MBS(Y)- 2436 | 2400 | 3600 | 14 | 28 | 19 | 47-19 | 2.0-0.15 | 280 |
| MBS(Y)- 2730 | 2700 | 3000 | 15.5 | 35 | 18.4 | 55-21 | 2.0-0.15 | 380 |
| MBS(Y)- 2736 | 2700 | 3600 | 18 | 38 | 18.4 | 65-24 | 2.0-0.15 | 400 |
| MBS(Y)- 2740 | 2700 | 4000 | 20.6 | 39 | 18.4 | 80-28 | 2.0-0.15 | 400 |
| MBS(Y)- 3040 | 3000 | 4000 | 25.7 | 54 | 17 | 90-34 | 2.0-0.15 | 630 |
| MBS(Y)- 3230 | 3200 | 3000 | 21 | 44 | 16.4 | 73-28 | 2.0-0.15 | 500 |
| MBS(Y)- 3245 | 3200 | 4500 | 32 | 67 | 16.4 | 110-44 | 2.0-0.15 | 800 |
| MBS(Y)- 3642 | 3600 | 4200 | 38 | 79.5 | 15.8 | 120-50 | 2.0-0.15 | 1000 |
| MBS(Y)- 3645 | 3600 | 4500 | 40.8 | 85 | 15.8 | 140-56 | 2.0-0.15 | 1000-1250 |
| MBS(Y)-3650 | 3600 | 5000 | 46 | 96 | 15.8 | 155-65 | 2.0-0.15 | 1250 |
| MBS(Y)- 3660 | 3600 | 6000 | 54 | 113 | 15.8 | 190-80 | 2.0-0.15 | 1400 |

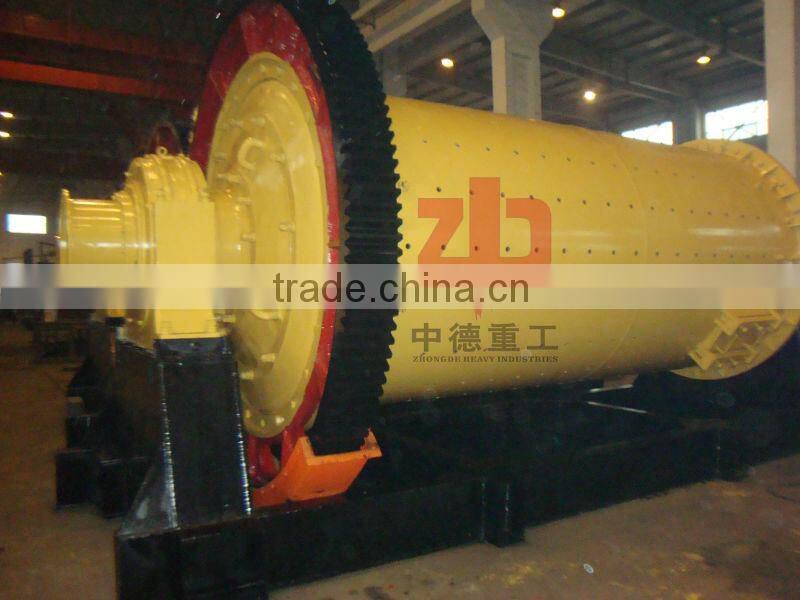

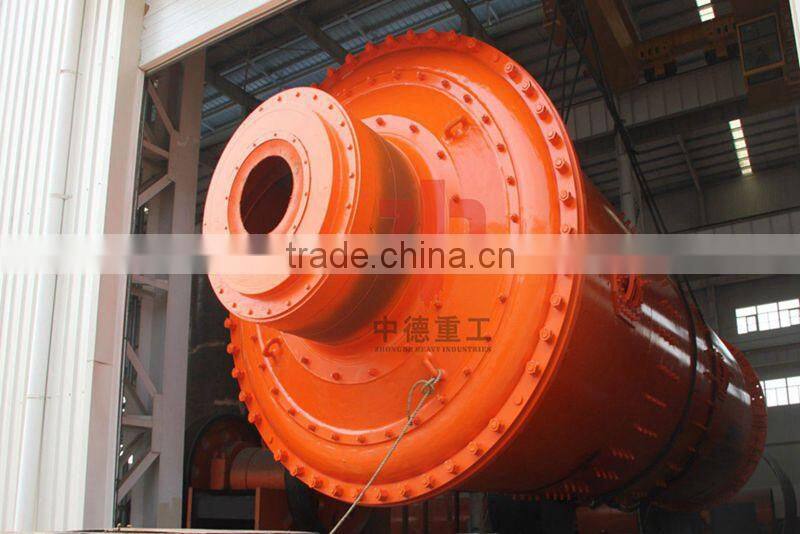

Rod mill picture:

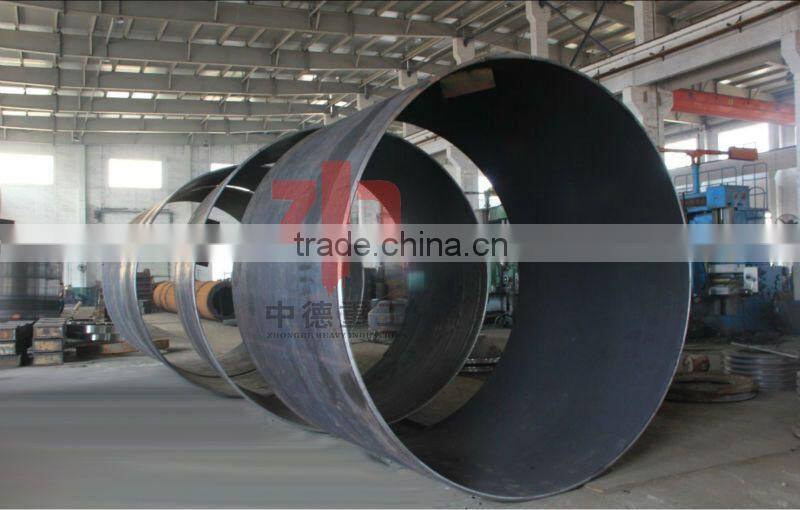

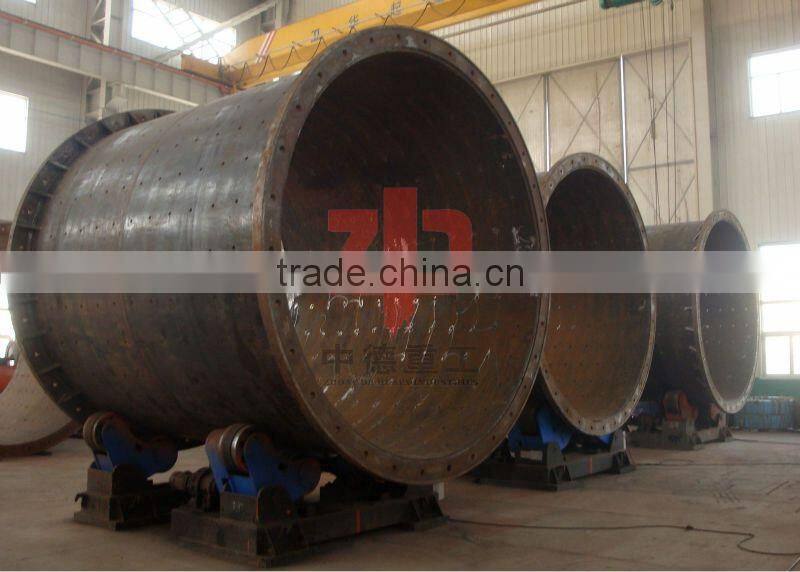

Rod mill manufacturing process:

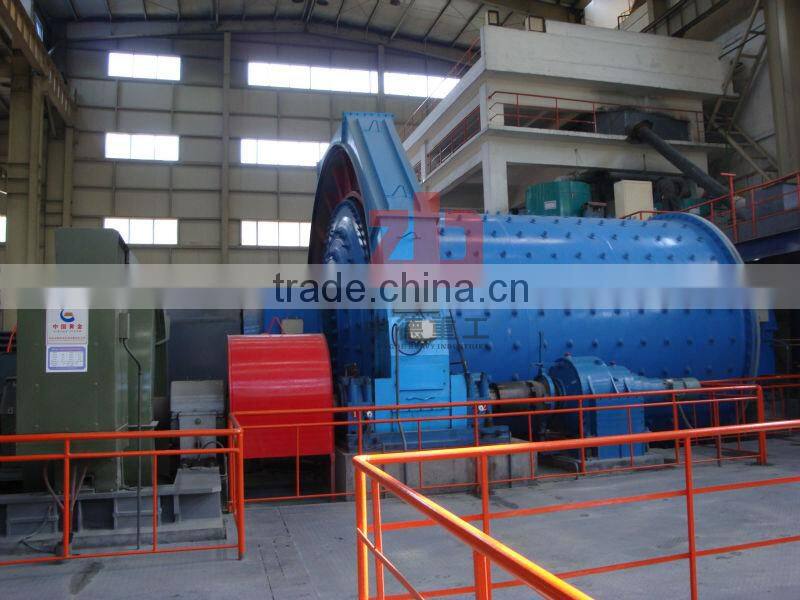

Rod mill on-site:
Packaging & Shipping

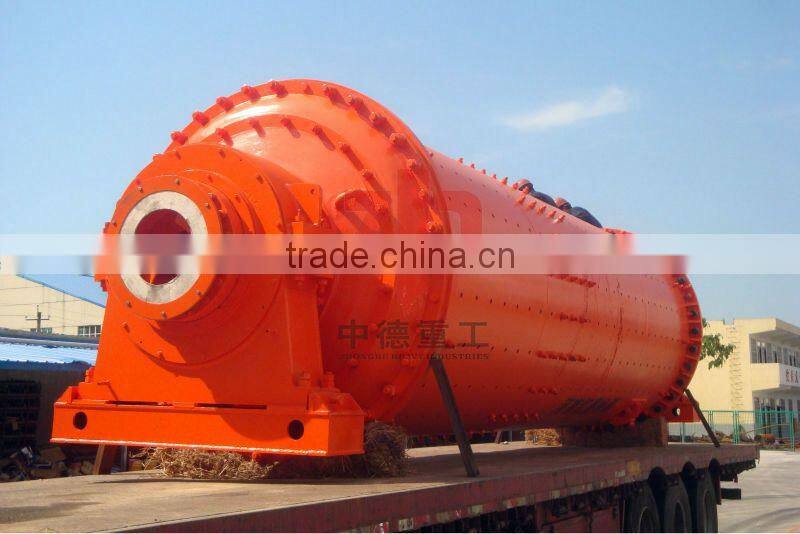

Rod mill shipment:
Our Services
Our service of rod mill:
- Installation and adjustment of rod mill: The Installation and adjustment of our rod mill is provided by our company. Technicist of rod mill will provided by supplier for buyer to assist the work such as weding connecion of shell body ,equipment installation, adjustment, training etc.
- Quality of guarantee of rod mill: Three-guarantees of rod mill and warrantly period id one year.
- Technical support of rod mill is provided from the beginning to the end.
- Spare parts of rod mill are serviced for sale in the whole year.
Company Information
- Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959.
- Over the past fifty years, it has made significant contribution to the economic development in China.
- In 1995, it took the lead in changing into the joint stock company, which brought rapid development to the company .
- In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park.
FAQ
How about the quality of your rod mill?
- Our rod mill is manufactured strictly according to national and international standard.
- We take a test on every rod mill before delivery.
How about price of your rod mill?
- We can give the lowest price of rod mill than market one.
- We do quotation of rod mill as soon as possible for any custome.
- Discount of rod mill can be given according to quantity.
How about the after-sale service of your company?
- Our engineer is aviliable to installation rod mill overseas.
- The guarantee period of our rod mill is one year.
