China Gold Seperating Machine/Chrome Sand Washing Plant/Gold Mining Equipment with CE Luoyang ZHONGDE
- 200 Set / Sets per Month
- tianjin qingdao port
- T/T L/C D/P D/A Credit Card PayPal
- Hot sale best price metal ore crusher,metal ore crusher with CE
- Hot Selling jaw stone crusher jaw grinder and crusher manufacturer
- Hot Selling jaw stone crusher jaw crusher capacity 110-250tons congo
- Hot sale New type sand making plant in india for sale with low price
- High quality crushed stone processing and pulverized mineral processing
- Zenith construction sand making plant,construction sand making plant price
Product Details
Condition: | New | Type: | Flotation Separator | Production Capacity: | 0.2-0.4t/h |
Place of Origin: | Henan, China | Brand Name: | Zhongde | Model Number: | BF-0.65 |
Voltage: | 380V | Power(W): | 3000 | Dimension(L*W*H): | 0.85*0.95*0.90m |
Weight: | determined by model | Certification: | ISO,BV,CE,TUV certificate,etc. | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Gold Mine Flotation machine
Characteristics of SF gold mine flotation machine
1. The impeller consists of closed double section cones, which can produce strong down-circulation;
2. Big air inlet amount, low energy consumption;
3. Each trough has the function of air suction, ore pulp suction and flotation, it can make a flotation circuit itself, with no auxiliary equipments. The horizontal configuration makes it easy to change process;
4. Rational ore pulp circulation reduces coarse sand sediment;
5. There are automatic and electric control devices of ore pulp level, which makes easy adjustment.
Technical parameters of gold mine flotation machine
Model | Effective volume (m3) | Inside dimensions(L×W×H)(m) | Air suction amount (m3/m² min) | Power(KW) | Processing capacity(m3/min) |
SF-0.37 | 0.37 | 0.7×0.7×0.75 | 0.9-1.05 | 1.5 | 470 |
SF-1.2 | 1.2 | 1.1×1.1×1.1 | 1.0-1.10 | 1.1 | 1370 |
SF-2.8 | 2.8 | 1.65×1.65×1.15 | 0.9-1.10 | 11 | 2130 |
SF-4.0 | 4.0 | 1.9×2.0×1.2 | 0.9-1.10 | 15 | 2585 |
SF-6.0 | 6.0 | 2.2×2.35×1.3 | 0.9-1.10 | 18.5 | 3300 |
SF-8.0 | 8.0 | 2.25×2.85×1.4 | 0.9-1.10 | 22 30 | 4130 |
SF-10 | 10 | 2.25×2.85×1.7 | 0.9-1.10 | 22 30 | 4660 |
SF-16 | 16 | 2.85×3.8×1.7 | 0.9-1.10 | 37 45 | 8320 |
SF-20 | 20 | 2.85×3.8×2.0 | 0.9-1.10 | 37 45 | 8670 |
SF-24 | 24 | 3.15×4.15×2.0 | 0.9-1.10 | 45 | 8970
|

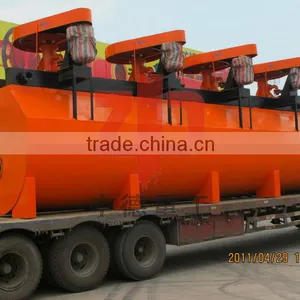

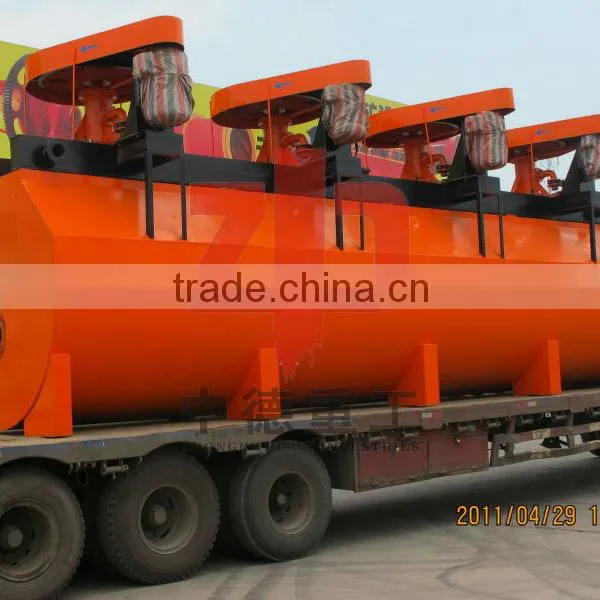

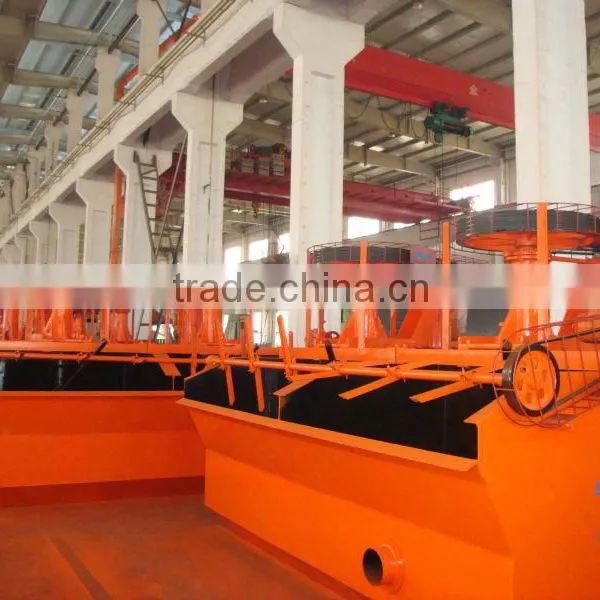

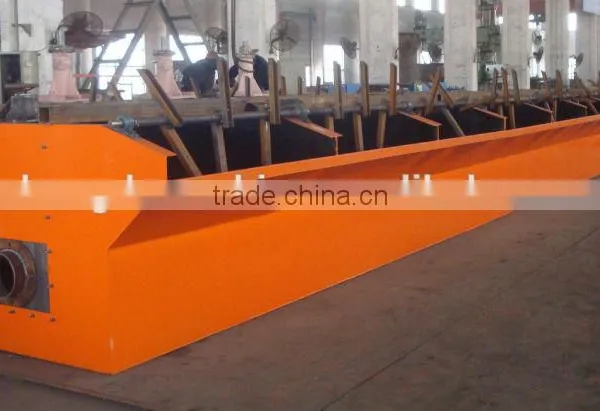

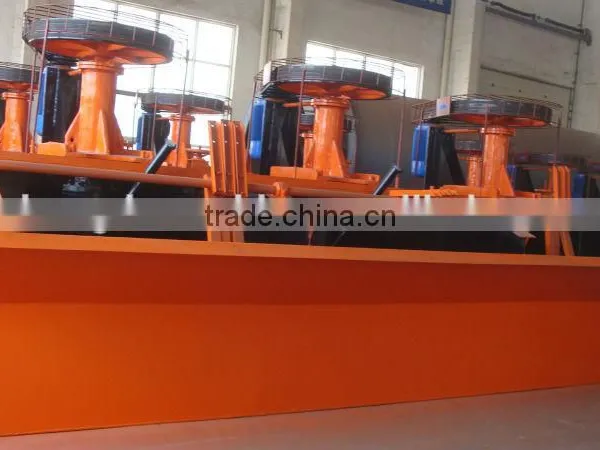

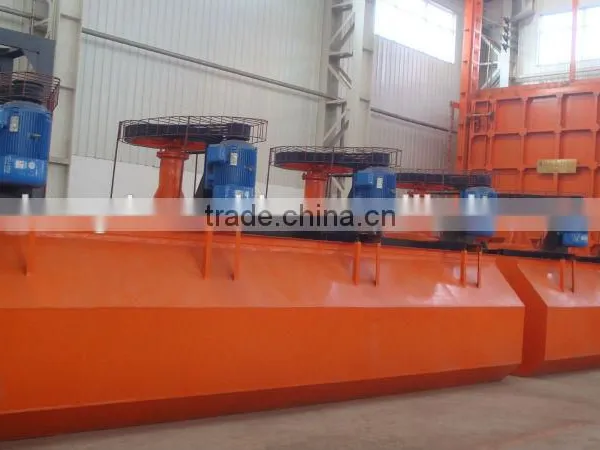

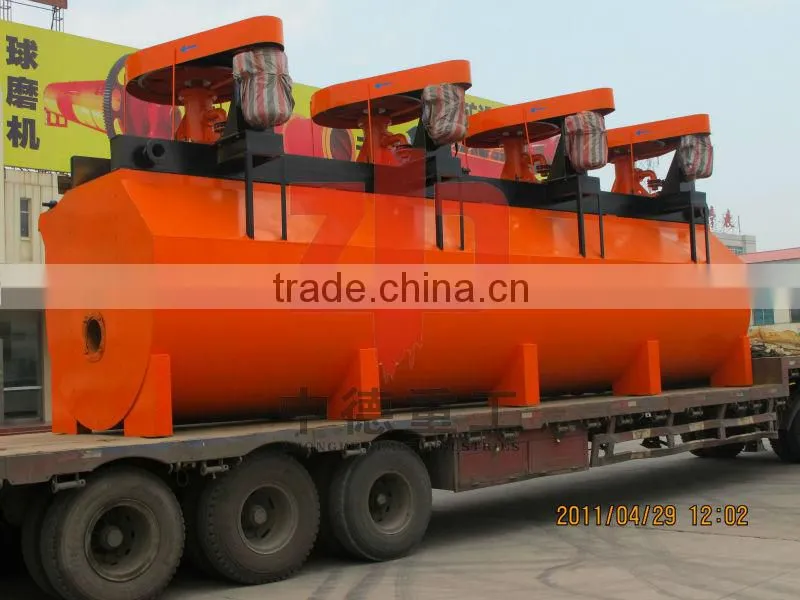

Gold mine flotation machine pictures
a. Installation and adjustment: Should the installation service is needed, technicist will be provided by supplier for buyer to assist the work such as welding connection of shell body.
b. Quality Guarantee: Three-guarantees of product and warranty period is one year.
c. Technical support is provided from the beginning to the end.
d. Spare parts are serviced for sale in the whole year
Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959. Over the past 50 years, Zhongde has made significant contribution to the economic development in China. In 1995, it took the lead in changing into the joint stock company, which had brought a rapid development to the company. In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park, Luoyang city, the middle of China.
We are a professional manufacturer of mining equipments, such as crusher, mining mill, tube mill, rotary kiln, cooler, rotary dryer, magnetic separator, flotation machine, thickener, etc. Our machines are widely used in the fields of mine, smelting, chemicals, building materials, coal, refractory materials, ceramics, etc. Moreover, technological designs on program, process flow, standard& non-standard parts are also provided from the beginning to the end for clients.

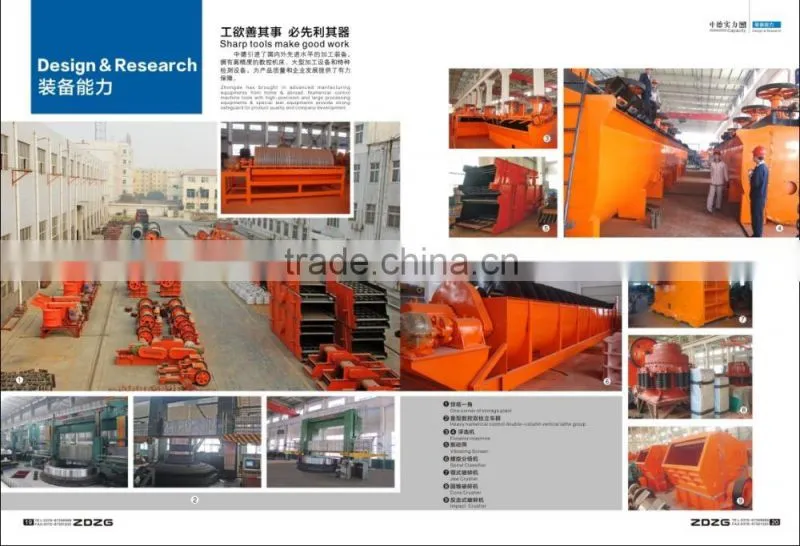

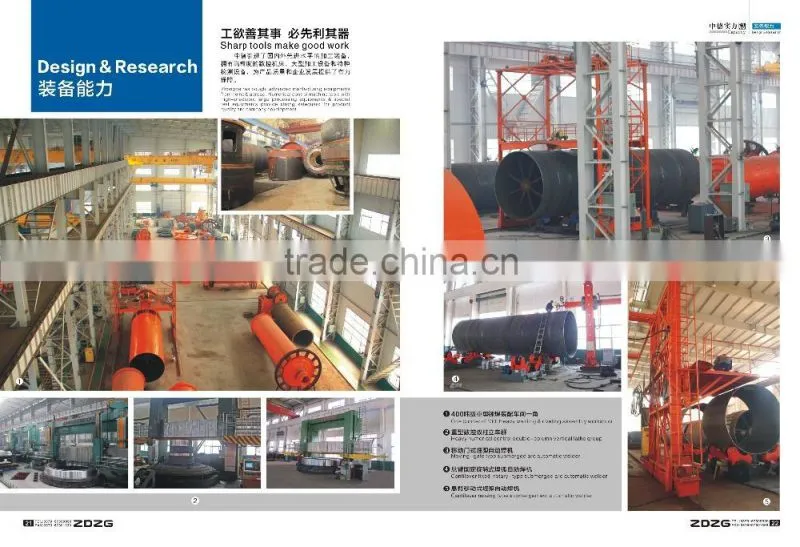

The total area of the three standard heavy-duty industrial workshops covers 70000 square meters. More than 500 sets advanced processing equipments, including 300 sets of high-precision digital control machine tools, large-sized processing equipment and special processing, riveting& installing machines, are introduced to guarantee for product qualityand company development.
In 2010, we have accessed the ISO9001:2008 certification, and in 2012 we have acquired the BVQI certificate. To establish the business with credit and honesty is our management belief all the time.
Superiority of Zhongde
- World's leading service capability
- The best device management and practice guidances
- Fast, easy and convenient routine maintenance can reduce the downtime
- World's most advanced technology can customize high quality equipment for you
Contact Us
- Luoyang Zhongde Heavy Industries Co., Ltd.
- Contact namePeter Li
- Phone86-379-67308060
- AddressLuoxin Industrial Park Luoyang,Henan
