2014 Great demand in Malaysia/India/Peru mining equipment stone crushing plant vibrating hopper feeder/vibrating feeder

Specifications

Vibrating Feeder
1. Flexible design.
2. Extra heavy-duty construction.
3. Exclusive vibrator technology



Vibrating feeder introduction:

In the producing process of a vibrating feeder,the vibrating feeder can feed the lumpish and granular materials uniformly and continuously from the storage bin to the feeding device. In the  sand and stones production line, the vibrating feeder can continuously feed materials for the crushing machinery and can coarsely screen the materials in the crushing and screening equipment.

Feature of GZD / ZSW Vibrating feeder:

• It can divide into two types: vibrating feeder and linear feeder.
• Vibrating feeder series has two vibrating motors, so our customers can freely adjust the feeder vibrating frequency so as to completely control feeding speed of stone material;
• Linear feeder has features of stable vibration, reliable operation and long service life.
• It can realize the continuously and uniformly feeding for the crushing machines, as well as can finish the coarse sieving on material.

Vibrating feeder technical parameters:

Model	Trough size(mm)	Max. feeding size(mm)	Processing capacity(t/h)	Motor power(kw)	Obliquity of material trough(°)	Dimensions(L*W*H)(mm)
GZD-650*2300	2300*650	300	80	1.1*2	10	2300*1360*780
GZD-750*2500	2500*750	350	100	1.1*2	10	2500*1460*780
GZD-850*3000	3000*850	400	120	3*2	10	3110*1800*1600
GZD-1000*3600	3600*1000	500	150	5.5*2	5	3850*1950*1630
GZD-1100*4200	4200*1100	580	240	5.5*2	5	4400*2050*1660
GZD-1100*4900	4900*1100	580	280	7.5*2	5	5200*2050*1700
GZD-1300*4900	4900*1300	650	450	11*2	5	5200*2350*1750
GZD-1500*5600	5600*1500	1050	450-800	12*2	10	5700*2000*1750
ZSW-380*95	3800*960	500	100-160	11	0	3920*1640*1320
ZSW-490*110	4900*1100	630	150-320	15	0	4980*1830*1320
ZSW-600*130	6000*1300	750	400-600	22	0	6082*2580*2083
ZSW-600*150	6000*1500	800	500-700	30	0	6086*2662*1912
ZSW-600*180	6000*1800	800	700-1000	37	0	6310*3262*2230

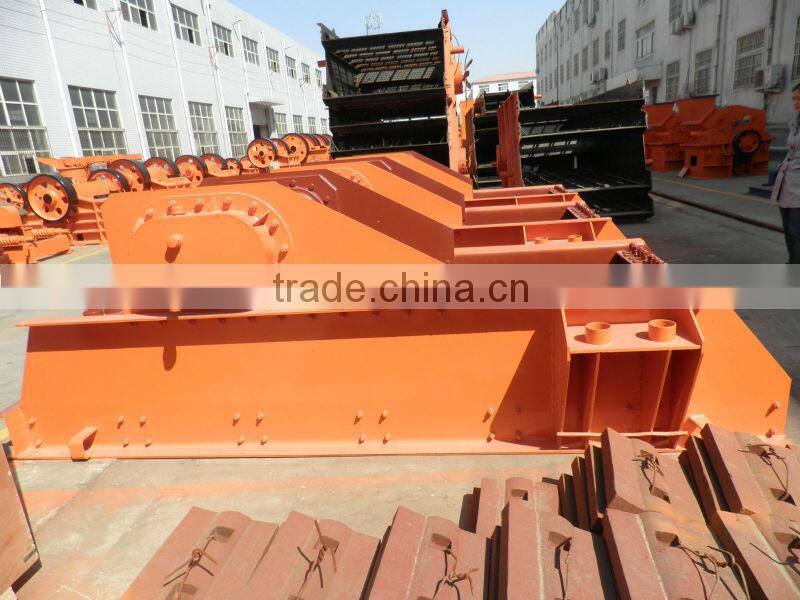

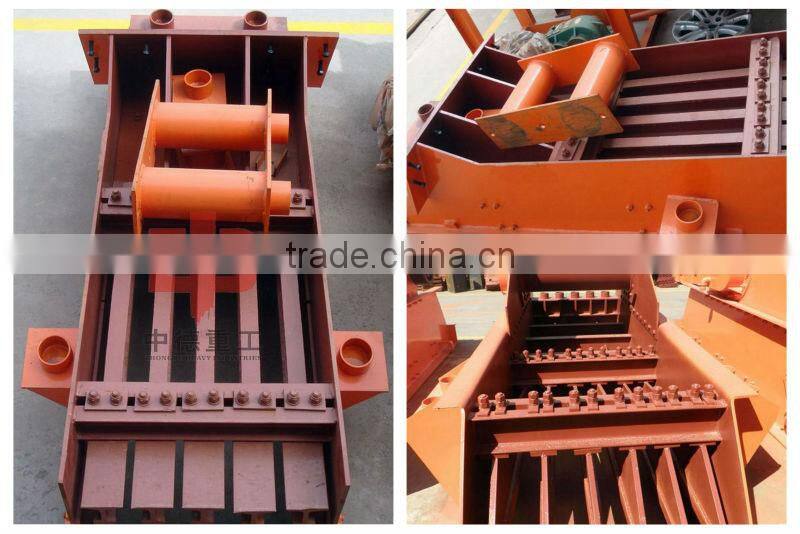

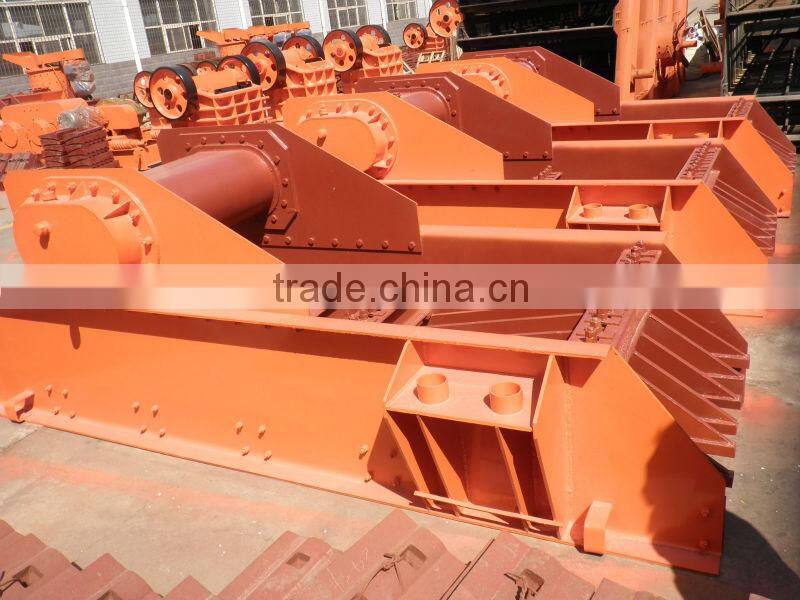

Vibrating feeder pictures:



Payment Terms of vibrating feeder:

• Payment methods are T/T, L/C,D/A,D/P;
• We take pictures of finished vibrating feeder before delivery.

Packaging of vibrating feeder:

• Sand blasting, coat with high quality paint;
• Product wrap by PP-Bubble;
• Load container, Spear Parts in wooden case.

Our service of vibrating feeder:

• Installation and adjustment of vibrating feeder: The Installation and adjustment of our vibrating feeder is provided by our company. Technicist of vibrating feeder will provided by supplier for buyer to assist the work such as weding connecion of shell body ,equipment installation, adjustment, training etc.
• Quality of guarantee of vibrating feeder: Three-guarantees of vibrating feeder and warrantly period id one year.
• Technical support of vibrating feeder is provided from the beginning to the end.



• Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959.
• Over the past fifty years, it has made significant contribution to the economic development in China.
• In 1995, it took the lead in changing into the joint stock company, which brought rapid development to the company .
• In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park.

How about the quality of your vibrating feeder?

• Our vibrating feeder is manufactured strictly according national and international standard.
• We take a test on every vibrating feeder before delivery.

 How about price of your vibrating feeder?

• We can give the lowest price of vibrating feeder than market one.
• We do quotation of vibrating feeder as soon as possible for any custome.
• Discount of vibrating feeder can be given according to quantity.

How about the after-sale service of your company?

• Our engineer is aviliable to installation vibrating feeder overseas.
• The guarantee period of our vibrating feeder is one year.
