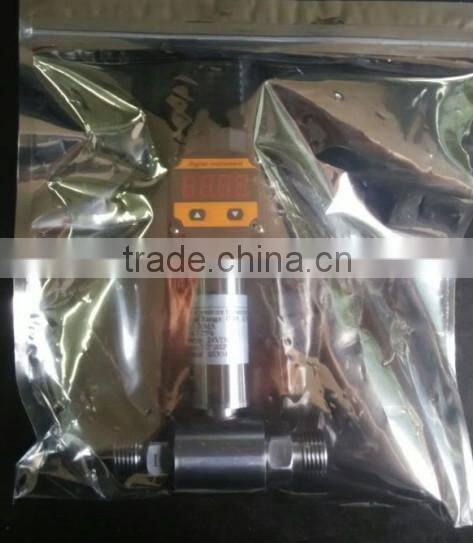

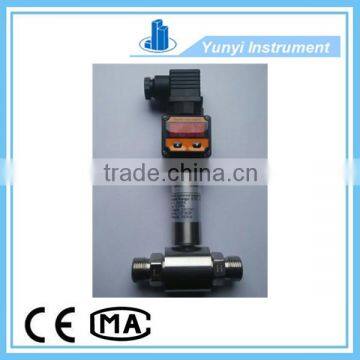

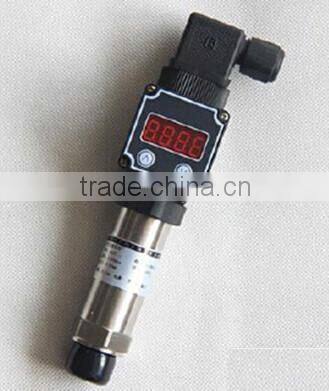

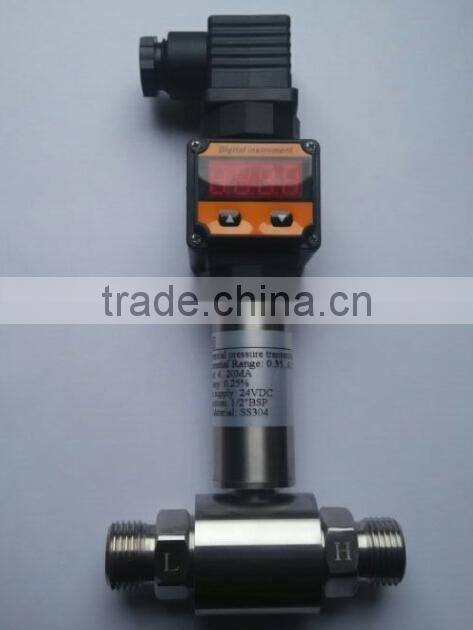

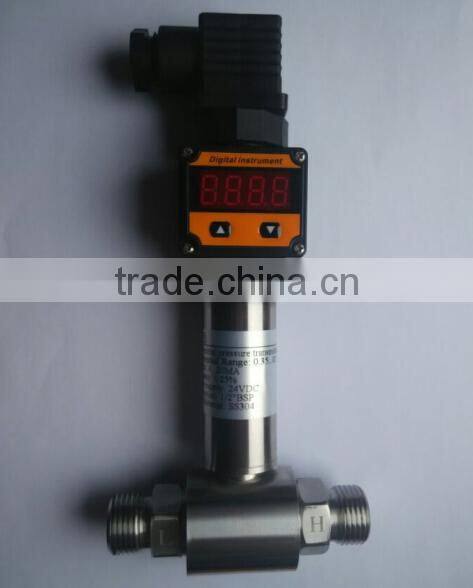

LED 0-5v differential pressure transducer
Description of LED 0-5v differential pressure transducer:
piezo ceramic transducer is design for the site with bad environment. Adopt silicon piezoresistive sensor, micro amplifier processing circuit. With the characteristic of vibration resistance and good impact resistance, high precision, stability. Widely used in pressure and level measurement and process control of petroleum, chemical and metallurgical, food industries.
Features of LED 0-5v differential pressure transducer:
Stainless steel high strength shape structure
Shape structure diversification, can be customized
Strong anti-interference, good long-term stability
LED, LCD header display can be selected
Parameters of LED 0-5v differential pressure transducer :
Measure Range: -0.1-0-60MPa
Accuracy: ±0.2%FS, ±0.5%FS
Output: 4-20mADC, 1-5VDC
Power supply: 12-36VDC, standard 24VDC
Overload pressure: ≤150%FS
Long stability: ≤±0.2%FS/Year
Temperature compensation: -30~80℃
Medium temp: -30-80℃
Environment Temp: -30-80℃
Temperature drift: ±0.03%FS/℃
Ambient humidity: ≤85%RH
Housing material: Stainless steel structure
Medium: The gas, liquid without corrosion on stainless steel liquid
