small differential electronics pressure transducer
- 1000 Piece / Pieces per Month
- ShenzhenShanghai GuangzhouNingbo Tianjin Qingdao Qinhuangdao Dalian Zhoushan Yingkou Erlianhaoteshi Huoerguosi Dandong Alashan
- T/T L/C D/P D/A Credit Card PayPal
- differential pressure transmitter
- Gas differential pressure transducer 400 bar
- S-11 differential pressure transmitter/pressure sensor
- Low Cost Pressure Transmitter with differential pressure/pressure sensor
- Factory price 1 psi differential pressure transducer
- high temperature melt pressure transmitter / pressure sensor
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | Yunyi | Model Number: | BP350 |
Packaging Details
small differential electronics pressure transducer
packging:box
2 pieces packing sieze:16*15*14cm
2 pieces weight:1.1kg
Product Description

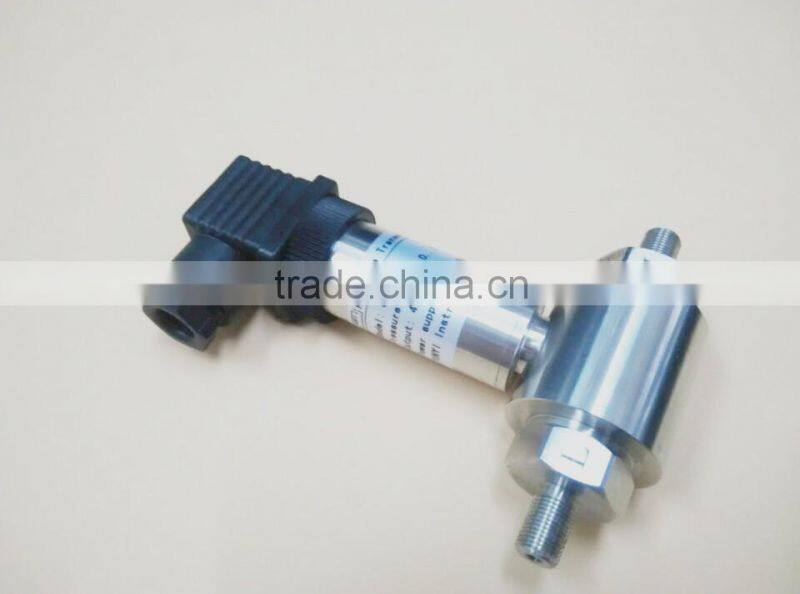

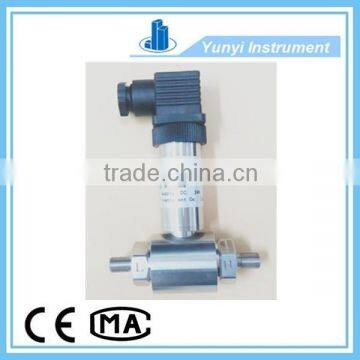

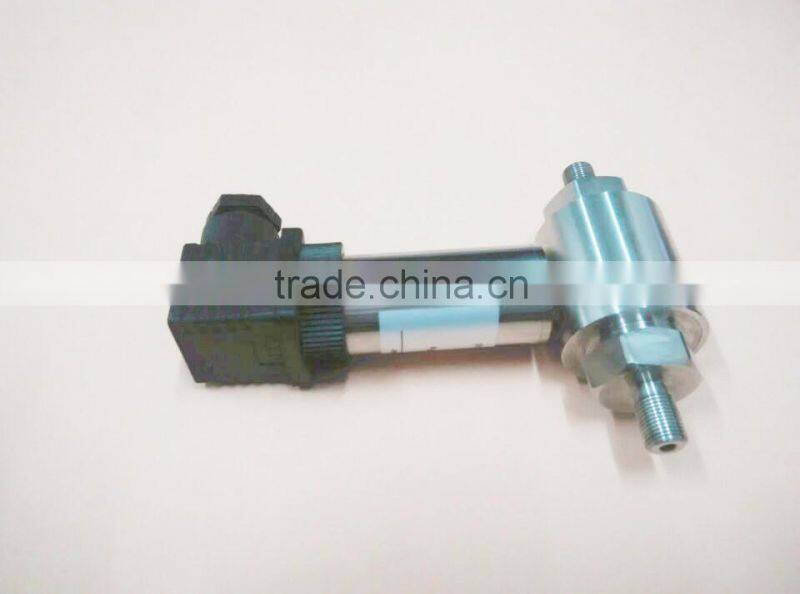

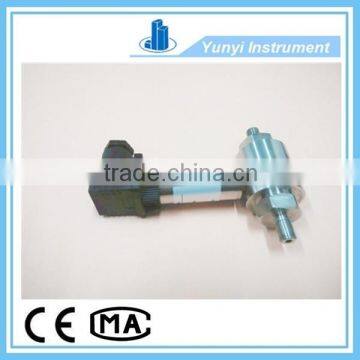

Small differential electronics pressure transducer
Description
Details
Measuring range | 0 ~ 10KPa…2MPa | |||||||||
Full scale range | 10 ~ 50KPa | 50 ~ 100KPa | 0.1 ~ 0.2MPa | 0.2 ~ 0.5MPa | 0.5 ~ 1MPa | 1 ~ 2MPa | ||||
Positive permissible over pressure | 250KPa | 300KPa | 0.4MPa | 1.0MPa | 2MPa | 4MPa | ||||
Negative permissible over pressure | 100KPa | 200KPa | 0.3MPa | 0.5MPa | 0.7MPa | 1MPa | ||||
Maximun static pressure | ≤20Mpa | |||||||||
Overall accuracy | ± 0.1%FS | ± 0.25%FS | ± 0.4%FS | |||||||
Zero point temperature drifting | ± 0.02%FS / ℃ (typical) | ± 0.05%FS / ℃ (maximum) | ||||||||
Sensitivity temperature drifting | ± 0.02%FS / ℃ (typical) | ± 0.05%FS / ℃ (maximum) | ||||||||
Influence of static pressure | ± 0.05%FS / 100KPa | |||||||||
Range of operating temperature | -10℃ ~ 80℃ | |||||||||
Range of compensating temperature | -10℃ ~ 50℃ | |||||||||
Long-term stability | ± 0.3%FS / year (≤200KPa) | ± 0.1%FS / year (≥200KPa) | ||||||||
Range of power supplying | 12 ~ 36V DC (24V DC generally) | |||||||||
Signal output | 2-wire 4~20mA; s-wire 0 / 1-5V DC | |||||||||
Response time | ≤2ms | |||||||||
Insulation resistance | 100MΩ, 500V DC | |||||||||
Influence of vibration | Change ≤1% after vibration of 3gRMS30 ~ 2000Hz | |||||||||
Impact | Change ≤1% after impact of 100g for 10ms | |||||||||
Service life | 1×108 pressurized cycle | |||||||||
Medium | The gas or liquid compatible with material of structure | |||||||||
Explosion – proof marking | Ex ia II CT5 (intrinsically safe explosion – proof | |||||||||
Weight | Approx 0.35KG | |||||||||
Thermal lagging | ± 0.1%FS (typical) | |||||||||
Enclosure protective degree | Plug Type (IP 65) | Cable Type (IP 67) |
Features of Product |
| Application of Product |
1 High ratio of performance to cost |
| 1 Industrial process control |
2 Fully made of stainless steel with small dimensions, light weight, and easy installation |
| 2 Flow measurement |
3 Reliable and stable performance |
| 3 Medical instrument |
4 Range of differential pressure: 0 ~ 10KPa … 2MPa |
| 4 Air power measurement |
5 Static high pressure resistant to 20MPa |
| 5 Hydraulic and pneumatic equipment |
If you need this small differential electronics pressure transducer , please CONTACT
Katherina Wang
skype:wangxiaoyuncalar
Company Profile
Xian Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer, Mr Tian has more than 30 years experience on this area, and he is one of the engineers who introduced the Rosemount technology.
We are specialized in developing pressure transmitter, etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
