Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Mill > Mainly Used in Open Flow Grinding System Mini Cement Plant / Cement Plant for Sale
Mainly Used in Open Flow Grinding System Mini Cement Plant / Cement Plant for Sale
US$ 1,000 - 9,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Ball Mill, Cement mill
Motor Type:
AC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Limestone Ball Mill /ball Mill /cement Minn in AustraliaUS$ 1,000 - 9,999MOQ: 1 Set -
Cement Ball Mill /cement Minn Grinding Balls /cement Mill SeparatorUS$ 1,000 - 9,999MOQ: 1 Set
-
Cement Manufacturing Plant / Cement Plant / Cement Mill by China SupplierUS$ 1,000 - 9,999MOQ: 1 Set
-
Used Small Cement Ball Mill Prices for SaleUS$ 1,000 - 9,999MOQ: 1 Set
-
Gold Mining Machine /grinding Ball MillUS$ 1,000 - 9,999MOQ: 1 Set
Condition
New
Type
Other, Ball Mill, Cement mill
Motor Type
AC Motor
Power(W)
1250000
Capacity(t/h)
31-35, 31-35
Place of Origin
Henan, China
Brand Name
ZHONGDE
Model Number
3.0*11
Dimension(L*W*H)
Refer to specification
Weight
178t
Certification
CE/ISO/TUV
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.wet or dry cement ball mill2.overflow or grate ball grinder
3.high efficiency
4.50 years experience
Usage of cement mill:
Cement mill is mainly used for grinding varies cement clinker or other materials in building material, metallurgical, electric and chemical industries.
Sorts&Features of cement mill:
- Common Cement Mill It is mainly used in cycle grinding system, with features of high grinding efficiency, high production, lower consumption. Especially, when grinding slag cement, its perfpomance is more outstanding. Generally speaking, production could be 10-20% higher, and power consumption 10% lower. Besides, product temperature could reduce 20-40°C and product fineness is easy to adjust.
- High Fineness & Production Cement Mill It is mainly used in open flow grinding system, with features of simple equipment system & process flow, saving invesment, less building area. Regarding structure, it has advanced & specical material seperating diaphram device inside, adds activation device to fine grinding.
Technical parameter of cement mill:
| Spec./m(Dia.*Length) | Speed(r/min) | Feeding size(mm) | Capacity(t/h) | Griding mdia loading(t) | Main motor(kw) |
| 2.2*9.0 | 21.5 | <25 | 14-15 | 39 | 475 |
| 2.2*9.5 | 21.5 | <25 | 14-16 | 41 | 475 |
| 2.2*11 | 21.5 | <25 | 16-18 | 50 | 570 |
| 2.2*13 | 21.5 | <25 | 20-22 | 58 | 630 |
| 2.4*10 | 20.3 | <25 | 18-20 | 52 | 630 |
| 2.4*11 | 20.3 | <25 | 19-22(Open Flow)/22-25(Cycle Flow) | 57 | 630 |
| 2.4*12 | 20.3 | <25 | 21-23(Open Flow)/24-26(Cycle Flow) | 63 | 800 |
| 2.4*13 | 20.3 | <25 | 22-24(Open Flow)/25-28(Cycle Flow) | 68 | 800 |
| 2.6*11 | 19.7 | <25 | 24-26 | 69 | 800 |
| 2.6*13 | 19.7 | <25 | 28-32 | 82 | 1000 |
| 3.0*9.0 | 18.2 | <25 | 28-32 | 78 | 1000 |
| 3.0*11 | 18.2 | <25 | 31-35 | 95 | 1250 |
| 3.0*12 | 18.2 | <25 | 32-36 | 100 | 1250 |
| 3.0*13 | 18.2 | <25 | 33-37 | 108 | 1400 |
| 3.2*11 | 17.8 | <25 | 40-45 | 110 | 1400 |
| 3.2*13 | 17.8 | <25 | 45-50 | 128 | 1600 |
| 3.2*13 | 17.7 | <25 | 50-55 | 128 | 1600 |
| 3.2*14 | 17.8 | <25 | 48-53 | 138 | 1800 |
| 3.5*11 | 17.1 | <25 | 55-60 | 135 | 1800 |
| 3.5*13 | 17.3 | <25 | 60-65 | 156 | 2000 |
| 3.8*12 | 17 | <25 | 63-68 | 175 | 2500 |
| 3.8*13 | 17 | <25 | 65-70 | 190 | 2500 |
| 4.0*13 | 16.3 | <25 | 75-80 | 200 | 2800 |
| 4.2*11 | 15.8 | <25 | 100-110 | 195 | 2800 |
| 4.2*13 | 15.8 | <25 | 110-120 | 230 | 3150 |
| 4.2*14 | 15.6 | <25 | 120-135 | 252 | 3550 |
| 4.2*15 | 15.6 | <25 | 140-150 | 270 | 4000 |
| 4.6*14 | 15.1 | <25 | 140-150 | 285 | 4200 |
| 4.6*15 | 15.1 | <25 | 150-160 | 305 | 4500 |

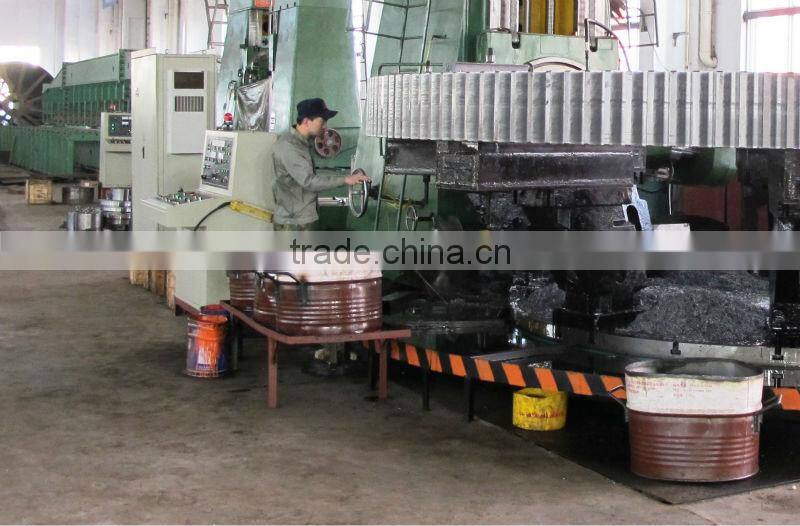

Cement mill pictures:
