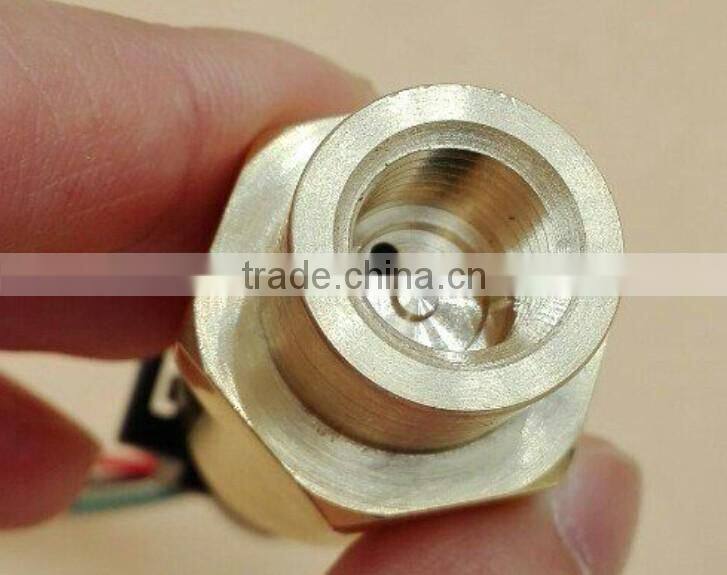

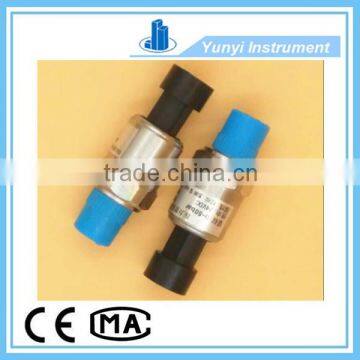

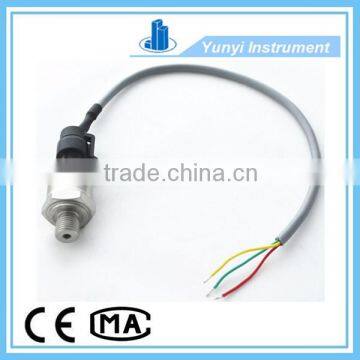

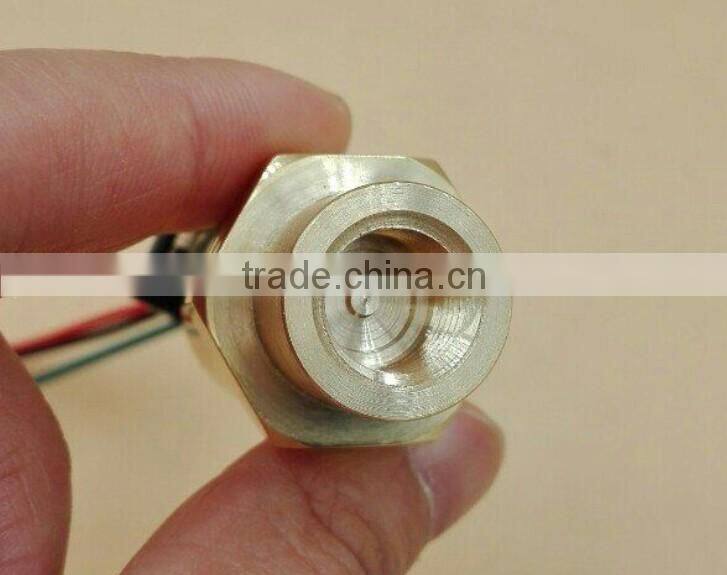

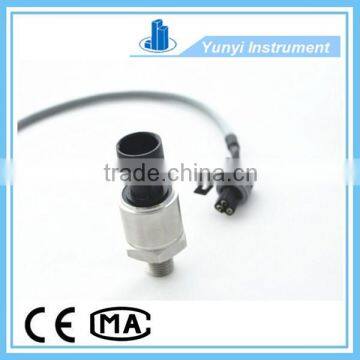

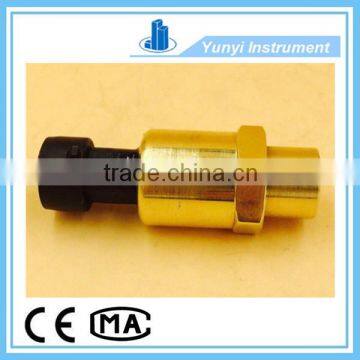

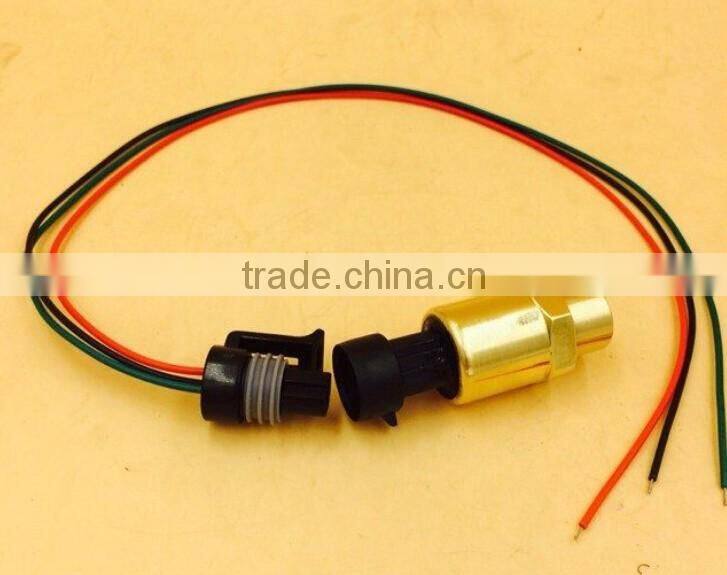

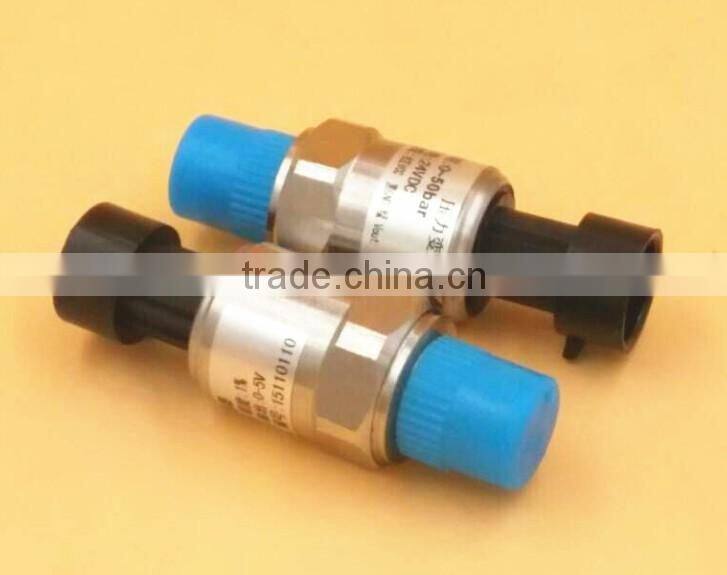

OEM Air conditioner pressure transducer
Air conditioner pressure transducer applied in the refrigeration & compressor industry adopts the Ceramic piezoresistive technology and the advanced circuit design to avoid influences on the product caused by the temperature, humidity, mechanical fatigue and medium, thus to improve its permanent stability in the industrial environment.
Range: selectable between -0.1-30MPa
Accuracy: 0.5% FS, 1.0% FS, 2.0% FS
Output signal: 4-20mA, 0 / 1-5 / 10V, 0.5-4.5V
Supply voltage: + 5VDC, + 12VDC, + 24VDC
Process connection: 7 / 16-20UNF, G1 / 4, G1 / 8 (can be customized)
Electrical connection: three-pin plug directly lead
Load capacity: current-≤500Ω
Compensation temperature: 0-85 ° C
Operating temperature: -20-125 ° C
Safety overload: 150%
Ultimate Overload: 200%
Temperature drift: 0.02% FS / ° C
Long-term stability: 0.2% FS / Year
Ceramic flat membrane structure
Rugged, compact, easy to install
High reliability, high stability
Advanced anti-jamming, anti-surge protection circuit
Excellent impact resistance, overload, anti-vibration
Corrosion-resistant, water hammer, anti-leak
Automated production line quality assurance, stable and reliable
|
|
|
|
|
|
|
|
If you need this Wika pressure transmitters, small differential pressure transmitter, small lcd pressure transmitter, Please contact me
