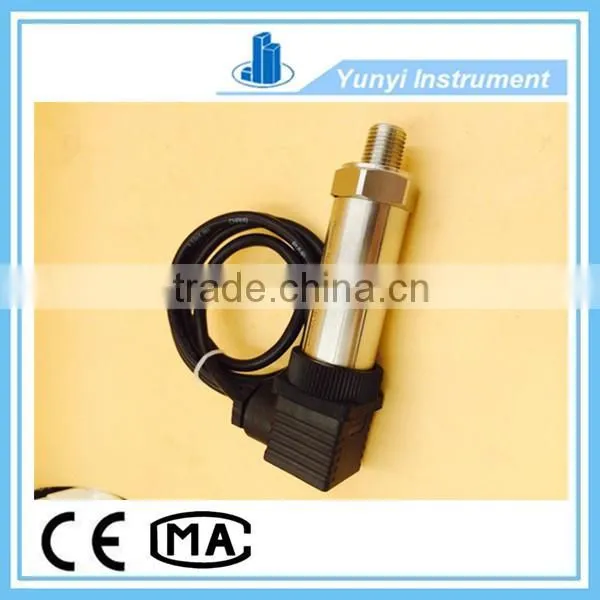

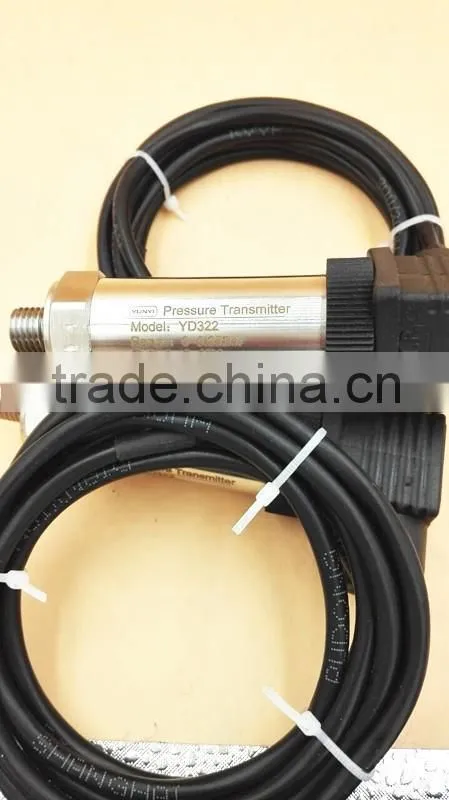

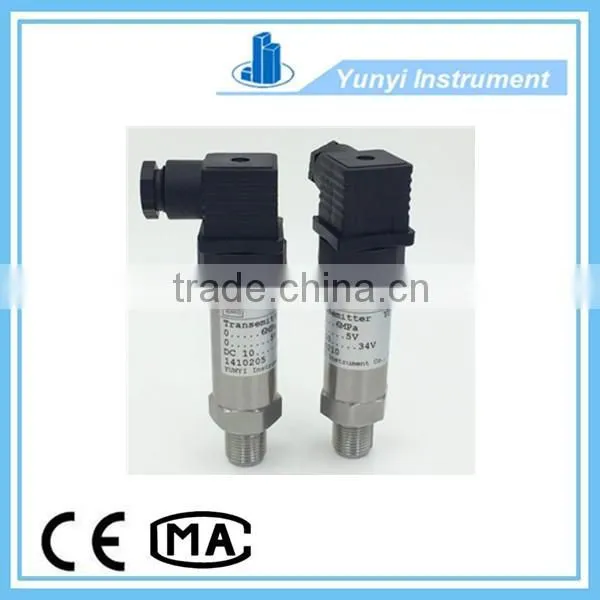

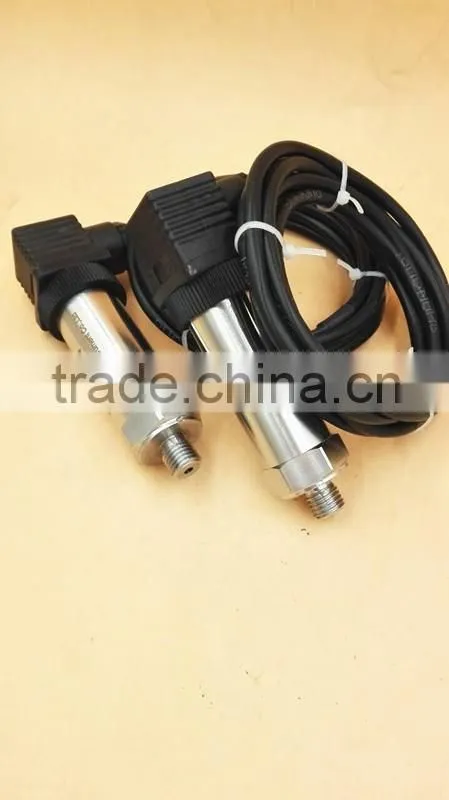

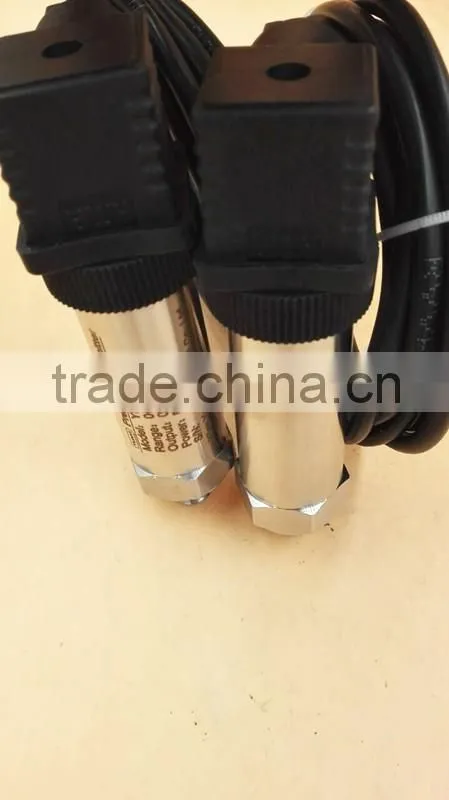

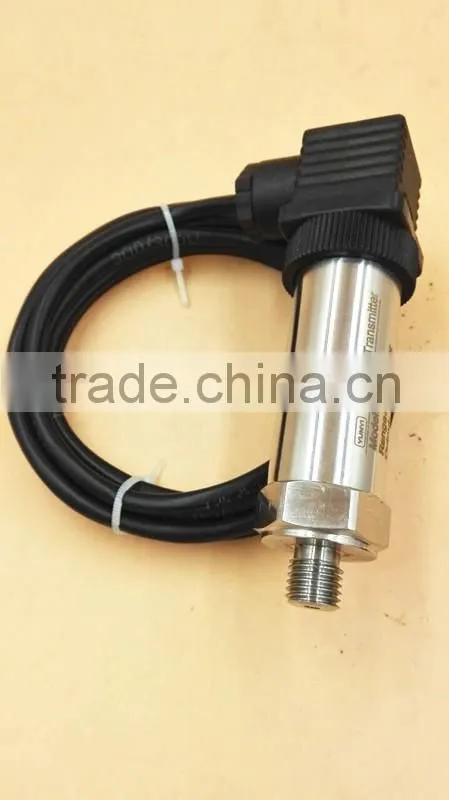

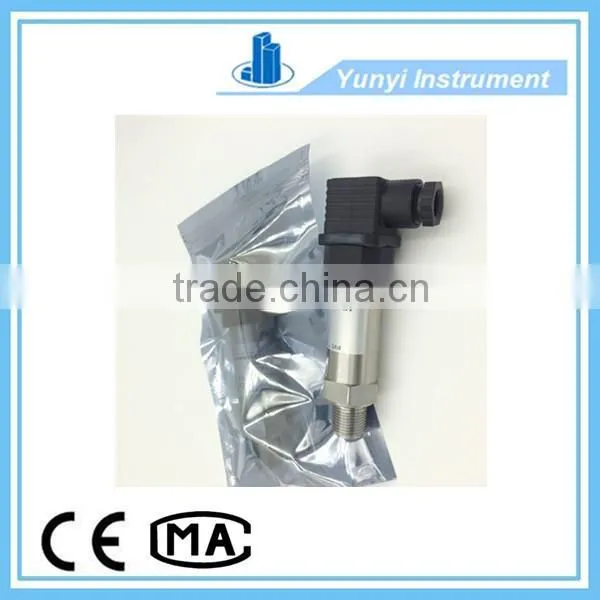

Hydraulic Pressure Sensor Cost
US$ 31 - 156
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
Yunyi
Model Number:
YD31A
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Air Pressure Sensor Air Compressor Pressure TransducerUS$ 18 - 150MOQ: 1 Piece -
Low Cost New Low Cost Engine Fuel Pressure SensorUS$ 10 - 100MOQ: 50 Units
-
Smart Differential Pressure Flow TransmitterUS$ 40 - 150MOQ: 1 Unit
-
4-20mA LCD Display Oil/fuel/water/air Pressure Sensor Cost Transmitter Price LCD DisplayUS$ 50 - 800MOQ: 1 Piece
-
Low Cost Hydraulic Lcd Display Oil Pressure SensorUS$ 50 - 800MOQ: 1 Piece
Place of Origin
Shaanxi, China
Brand Name
Yunyi
Model Number
YD31A

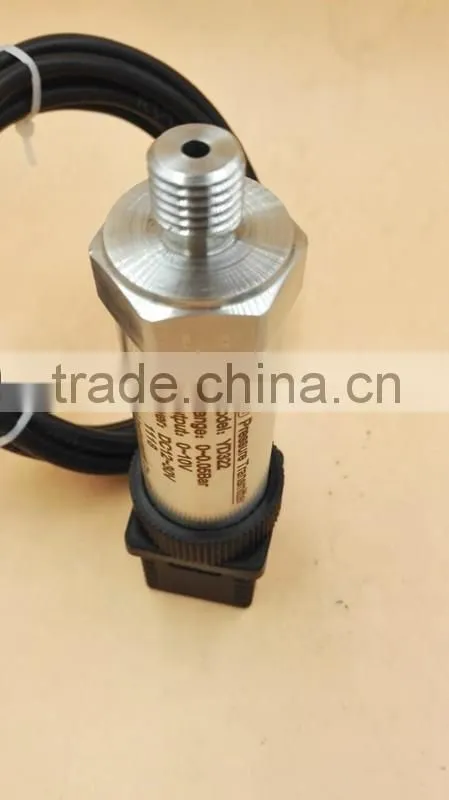

hydraulic pressure sensor cost
Basic parameters:
- Measuring media: oil, water, gas and other compatible media wetted parts
- Sensor: Stainless diffused silicon sensor
- Range: 0 ~ 0.7MPa ~ 100MPa; minimum range: 0 ~ 0.5MPa
- Pressure: 2 times the range (10MPa or less, more may contact)
- 1.5 times the range (10MPa or more, higher may contact)
- Accuracy: ± 0.25% FS
- Non-linear: <± 0.2% FS
- Hysteresis and repeatability: ≤ ± 0.15% FS
- Long-term stability: ≤ ± 0.15% FS / year
- Zero drift: ≤ ± 0.05% FS / ℃
- Response time: ≤500ms (standard); 200-1000ms adjustable
Electrical parameters:
- Output: current 2-wire: 4 ~ 20mA;
- 3-wire voltage: 0 ~ 5V; 0 ~ 10V; 1 ~ 5V; 1 ~ 10V
- Supply voltage: DC24V (12 ~ 32VDC, less may contact)
- Load capacity: current output: ≤ 500Ω
- Voltage output: ≤ 250Ω output impedance

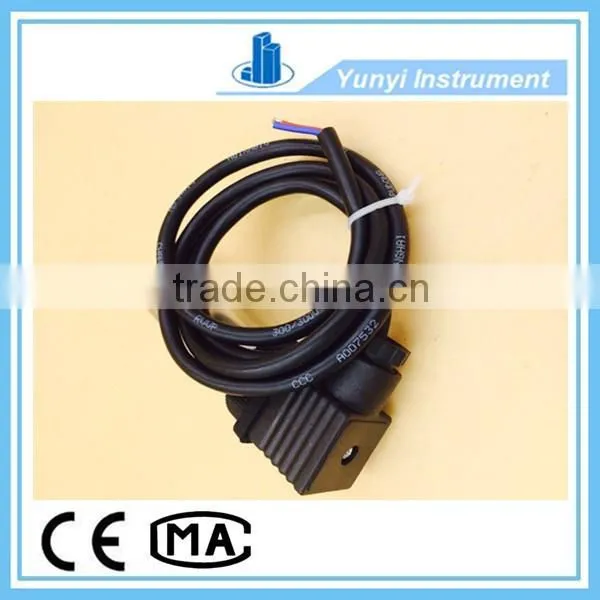

- Electrical connection: Grommet 2 meters or PG7 He Tasman joints, can be customized to other
Materials:
- Wetted parts: 316L
- Shell: 304
- Seals: Viton, optional: EPOM, NBR
- Diaphragm: 316L stainless steel
Other specifications:
- Process connection: G1 / 8, other optional
- Shell Material: 304
- Protection class: IP 65 or IP68
- Medium temperature: -30 ~ 80 ℃
- Ambient temperature: -40 ~ 80 ℃
- Storage temperature: -40 ~ 100 ℃
- Earthquake: 108 RMS (25 ~ 2000HZ)
- Ex: Ex ia IIC T6 intrinsically safe
- Current Limit: The maximum current-24mA; voltage-largest 5mA
- Certification: CE, ISO
- Installation position: vertical installation is recommended, as there will be other installation extremely slight zero offset
Features:
1. Compact, multiple output
2. Digital ASIC, which greatly improves the accuracy and stability
3. Excellent anti-jamming capability, overvoltage overcurrent protection, reverse polarity protection
Applications:
Widely used in heavy industry, machinery, medical equipment, compressors and other industrial sites, suitable for all compatible with the wetted parts of the media. W series has a variety of process connections, a variety of electrical connections, small size, a variety of output options.
