Explosion Proof Digital Dispaly Pressure Transmitter
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | Yunyi | |
| Model Number | YD322-IA |
explosion proof digital dispaly pressure transmitter
one piece package:23*14*11cm
weight:0.75KG
Product Description
Explosion proof digital dispaly pressure transmitter
Description :
Pressure sensors are spread over the silicon chip a Wheatstone bridge, measured medium (gas or liquid) pressure to make the bridge wall resistance value changes (piezoresistive effect), producing a differential voltage signal. This signal via a dedicated amplifier, the range corresponding to the signal into a standard analog or digital signals.
Specification :
Measuring media: liquid or gas (stainless steel without corrosion)
Overall Material: diaphragm 316s stainless steel, 304 stainless steel process connection
Pressure Range: -100kPa ~ 0 ~ 100MPa
Pressure way: gauge pressure, absolute pressure, negative
Output signal: 4 ~ 20mA, 0 ~ 5VDC, 0 ~ 10VDC, 1-5VDC, RS485
Power supply: 9-36VDC
Accuracy rating: 0.1% FS, 0.25% FS
Medium temperature: -40 ~ 150 ℃
Ambient temperature: -40 ~ 85 ℃
Seismic Performance: 25g (20 ... 2000Hz)
Overload: 200% FS
Response frequency: ≤500Hz
Stability: ± 0.1% FS / Year
Temperature drift: ± 0.01% FS / ℃
Protection: IP65
Maximum power: current type ≤0.02Us (W) voltage-≤0.008Us (W) numeric ≤0.015Us (W) Note: Us = supply voltage
Load characteristics: current-load ≤ {(Us-7) ÷ 0.02 (Us = supply voltage)} Ω
Voltage type load ≥100 kΩ
Fearures:
Imported diffused silicon pressure sensor and advanced membrane isolation technology
Amplifier integrated chips imported US BB, wide voltage supply
Cutoff frequency interference design, anti-jamming, anti-lightning
Wiring reverse and overvoltage protection, current limiting protection
High accuracy, good stability, fast response, impact resistance, high temperature
Application:
Suitable for indoor, high temperature liquid or gas pressure measurement, non-hazardous general scene.

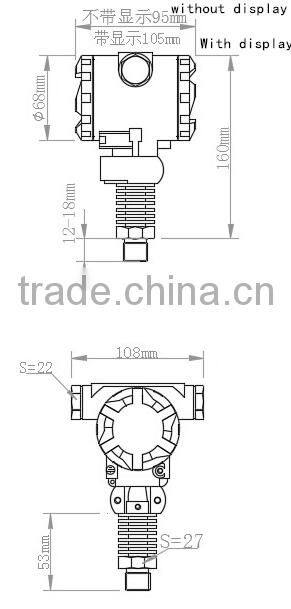

Drawing:
Wring
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this explosion proof digital dispaly pressure transmitter , please contact
