Specifications
differential pressure level transmitter with high quality1.Digital smart chip
2. low price
3. CE certification

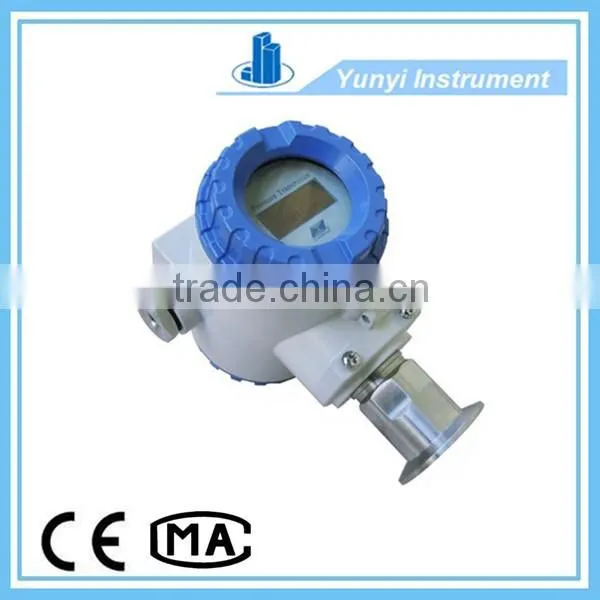

Pressure Level Transmitter
Features of Pressure Level Transmitter:
Digital smart chip, all-temperature linear temperature compensation;
All stainless steel laser welded structure; variety of process connections;
Flush diaphragm design for a variety of viscous medium pressure measurement;
Easy to remove and easy to clean sterile design;
Meets 3-A standards;
Specifications of Pressure Level Transmitter :
Range 0 ~ 3.5MPa within any range, the minimum range is 5kPa
Accurately graded 0.2, 0.5
Medium temperature - 30 °C ~ 85 °C
Ambient temperature - 20 °C ~ 85 °C
Supply voltage DC 24V (12V ~ 32V)
Load capacity of current output ≤ 500Ω; voltage output: ≥ 3kΩ
Nonlinearity 0.2% F • S
Hysteresis and repeatability 0.1% F • S
Long-term stability of 0.1% F • S / y
Zero thermal drift 0.02% F • S / °C
Response time ≤ 50ms
2 times the maximum working pressure range
Electrical connection Horsman connector / terminal block
Process connection M24 × 1.5 external thread or flange clamp whip
Measuring media compatible with 316L stainless steel media
Materials ordinary stainless steel external parts / 316L stainless steel
Protection class IP65 (P-type) / IP 54 (H-type)
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this Pressure Level Transmitter , please visit the website
