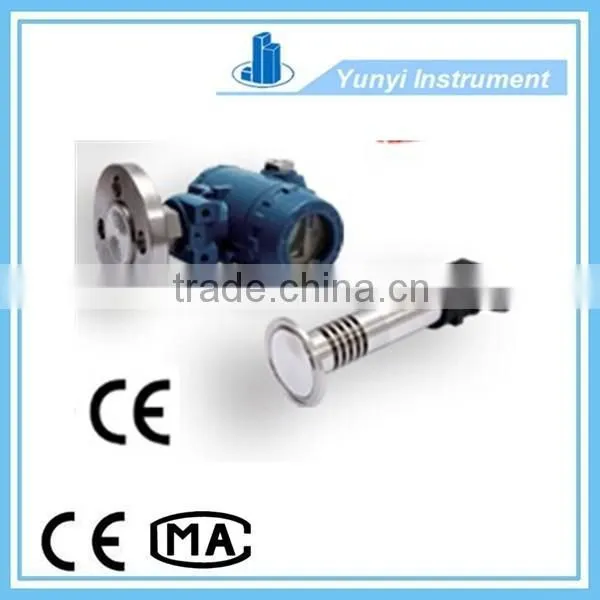

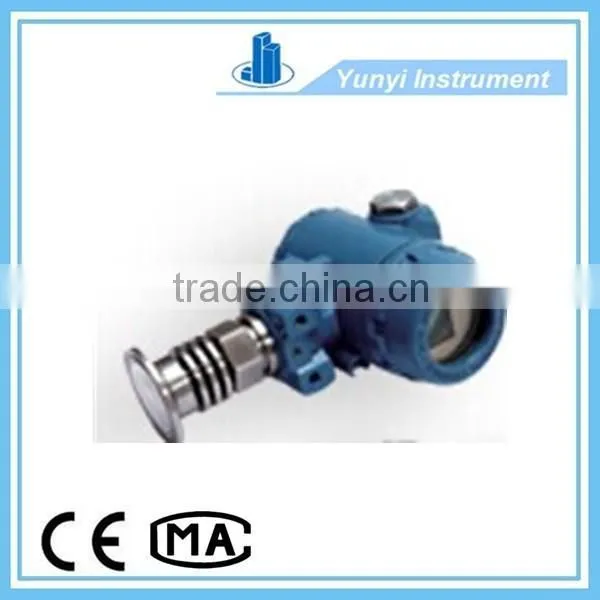

China Sanitary Diaphragm Water Pressure Sensor Transmitter

alibaba China Sanitary Diaphragm water pressure sensor transmitter Standard packing(or according to the customer request)

Specifications

alibaba China  Sanitary Diaphragm water pressure sensor transmitter

Basic parameters:

1. Measuring media: oil, water, gas, slurry body and other compatible media wetted parts
2. Sensor: Stainless diffused silicon sensor
3. Range: -0.1MPa ~ 0 ~ 10MPa;
4. Minimum range: 0 ~ 20KPa (ferrule and flange connection)
5. Minimum range: 0 ~ 100KPa (M20 * 1.5 flush thread)
6. Pressure: 2 times the range (higher may contact)
7. Accuracy: ± 0.5% FS
8. Non-linear: <± 0.2% FS
9. Hysteresis and repeatability: ≤ ± 0.15% FS
10. Long-term stability: ≤ ± 0.15% FS / year
11. Zero drift: ≤ ± 0.05% FS / ℃
12. Response time: ≤500ms (standard); 200-1000ms adjustable

Electrical parameters:

1. Output: current 2-wire: 4 ~ 20mA;
2. 3-wire voltage: 0 ~ 5V; 0 ~ 10V; 1 ~ 5V; 1 ~ 10V
3. Supply voltage: DC24V (12 ~ 32VDC, less may contact)
4. Load capacity: current output: ≤ 500Ω;
5. Voltage output: ≤ 250Ω output impedance
6. Electrical connection: 1100P: He Klinsmann joints
7. 2088P: M20 * 1.5 standard outlet hole, including sewing mother
8. Show: 1100P type: four LED display
9. 2088P type: four half display, character height 120mm; blue and white long light type LCD
10. Protocol (2088P) 4-20mA + Hart; RS485 (Modbus)

Materials:

1. Wetted parts: 316L, tantalum, Ha C, Monel, 316L + PTFE coating
2. Shell: 304L stainless steel (1100P), die-cast aluminum (2088P)
3. Seals: Laser Welding
4. Diaphragm: with wetted parts

Other specifications:

1. Process connection: M20 × 1.5 flush thread, Φ50 health card sets, DN25 flange
2. Material: 304L or die-cast aluminum
3. Protection class: IP 65 or IP68
4. Medium temperature: -30 ~ 300 ℃ (standard -30 ~ 80 ℃)
5. Ambient temperature: -40 ~ 80 ℃
6. Storage temperature: -40 ~ 100 ℃
7. Earthquake: 108 RMS (25 ~ 2000HZ)
8. Ex: Ex dia IIC T6 intrinsically safe explosion-proof; (limited 2088P)
9. Certificate Number: CJEx12.0421
10. Current Limit: The maximum current-24mA; voltage-largest 5mA
11. Certification: CE, ISO, Ex
12. Installation position: vertical installation is recommended, as there will be other installation extremely slight zero offset

Features:

1.    316L, tantalum, Ha C, Monel, 316L + PTFE coating a variety of diaphragm
2.    Digital multi-point calibration, using a dedicated chip
3.    Hart function, RS485 bus function
4.    Large-screen LCD, the unit is adjustable
5.    With the keys, on-site calibration function zero
6.    Damping time is adjustable, to ensure long-term stability
7.    Excellent anti-jamming capability, overvoltage overcurrent protection, reverse polarity protection
8.    Explosion-proof function

Applications:

Sanitary  diaphragm industrial pressure transmitters are widely used in food, pharmaceuticals, high corrosion resistance, high viscosity and high temperature applications, suitable for all compatible with the wetted parts of the media, by selecting different diaphragm and fill fluid to accommodate more working conditions. A variety of digital functions P series has a variety of process connections, a variety of electrical connections, Hart and RS485 protocols can be selected, and a site calibration, multi-point calibration, and adjustable damping time
