Specifications
digital radio communication Wireless Digital Pressure Gauge1 professional manufacturer
2 quick shipment
3 CE certification

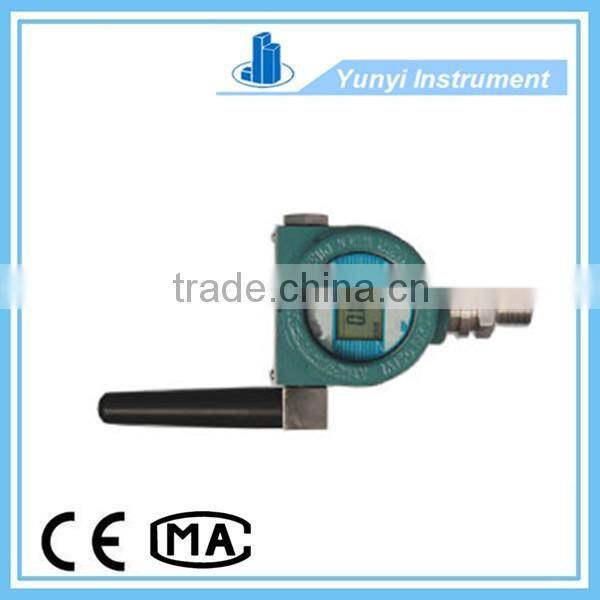

Digital radio communication Wireless Digital Pressure Gauge
Descriptoin:

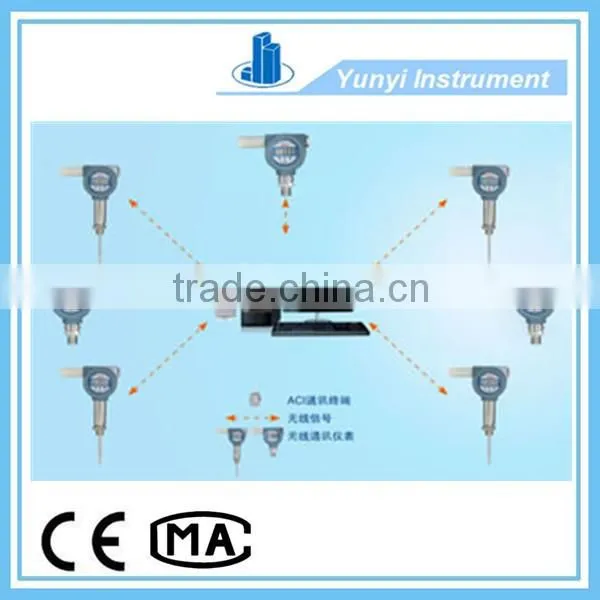

YK-1Z wireless digital pressure gauge is consist of the pressure sensor, the signal processing circuit, a central processor and a communication circuit. Using large-capacity high-performance battery, the life of 1 to 2 years. No external power supply. Remote real-time monitoring, wireless transmission, without on-site wiring, eliminating the need for field wiring trouble ordinary instrument, not only saves manpower, but also saves the cost of construction. The instrument is particularly suitable for on-site power and because they need the data can not be piped output detection circuit and the pressure of oil wells, real-time transmission, oil, heating and so on. The instrument can be used with our ACI-2 supporting the use of wireless communication terminals.
Specification:
asuring range: Gauge:-100kPa ~ 0 ~ 1kPa ~ 260MPa
Differential pressure: 0 ~ 500Pa ~ 3.5MPa
Absolute pressure: 0 ~ 10kPa ~ 60MPa
2. Output signal: ACI wireless communication
3. Accuracy class: 0.1, 0.2, 0.5
4. Operating frequency: 430 ~ 470MHz
5. Transmission distance: 200 meters or 800 meters
6. Overload pressure: 1.5-3 times the range, depending on the measurement range may be
7. Built-in Power: 3.6V high-energy lithium batteries
8. Medium temperature: -40 °C ~ 85 °C
9. Working environment: Temperature: -30 °C ~ 60 °C;
Humidity: <90%
Calibration reference environment: 20 °C ± 1 °C
10. Explosion levels: ExiaIIBT4, ExdIIBT4
11. Process connection: M20 × 1.5 (male) or according to user needs
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this Digital radio communication Wireless Digital Pressure Gauge , please visit the website:
or contact skype:wangxiaoyuncalar
