Home > Electrical & Electronics > Transmitter > Pressure Transmitter > Eja510a/Eja530a

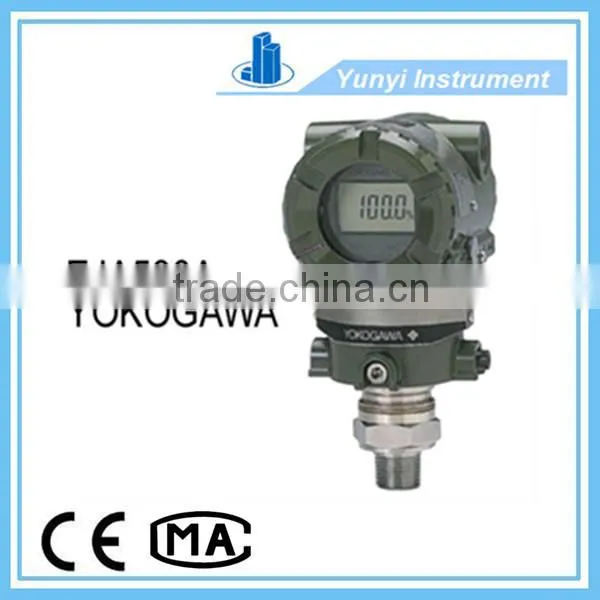

Eja510a/Eja530a

Name: Eja510a/Eja530a
Brand: Yokogawa
SKU: 109020249
Availability: InStock

US$ 300 - 800 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

Japan

Brand Name:

Yokogawa

Model Number:

Eja510a/Eja530a

Contact Supplier Request Quote Chat Now

Xi'an Yunyi Instrument Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Japan

Brand Name Yokogawa

Model Number Eja510a/Eja530a

Specifications

EJA510A / EJA530A
Good quality and low price
CE certificate

EJA510A / EJA530A

DESCRIPTION:

The EJA510A / EJA530A can be used to measure liquid, gas, or steam pressure.
The EJA Series is available with BRAIN, HART, FOUNDATION™ fieldbus or PROFIBUS PA communication protocols.
The absolute pressure transmitter model EJA510A and EJA530a can be used to measure liquid, gas, or steam pressure. Both output a 4 to 20mA DC signal corresponding to the measured pressure.

TECHNICAL DATA:

		EJA510A / EJA530A Direct Mount Type Absolute Pressure and Gauge Pressure Transmitter (Measurement values below are in absolute for EJA510A)
		A Capsule	B Capsule	C Capsule	D Capsule
Range		0 to 200 kPa (0 to 29 psi)	0 to 2 MPa (0 to 290 psi)	0 to 10 MPa (0 to 1450 psi)	0 to 50 MPa (0 to 7200 psi)
Span		10 to 200 kPa (1.45 to 29 psi)	0.1 to 2 MPa (14.5 to 290 psi)	0.5 to 10 MPa (72.5 to 1450 psi)	5 to 50 MPa (720 to 7200 psi)
Accuracy		±0.2%	±0.2%	±0.2%	±0.2%
Degrees of protection		IP67, NEMA 4X, and JIS C0920 immersion proof
Certificates		FM, CENELEC ATEX, CSA, IECEx
Output		4 to 20 mA DC or FOUNDATION™ fieldbus or PROFIBUS PA 2-wire system with digital communication
Supply voltage		BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type) Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5 V DC for FISCO model)
Ambient temperature		-40 to 85 deg C (-40 to 185 deg F) (general use type) -30 to 80 deg C (-22 to 176 deg F) (with integral indicator)
Process temperature		-40 to 120 deg C (-40 to 248 deg F) (general use type)
Maximum overpressure		4 MPa (580 psi)	4 MPa (580 psi)	20 MPa (2900 psi)	60 MPa (8500 psi)
Mounting		Direct Mounting/2-inch pipe mounting
Wetted parts material	Capsule	Hastelloy C-276
	Process connection	SUS316L, Hastelloy C-276
Housing		Cast aluminum

Order Examples:
EJA510A-DAS4N-02DE
EJA510A-DBS4N-04DN
EJA510A-DCS4N-07DF
EJA510A-DDS4N-09DN
EJA510A-DAS4N-02EE
EJA510A-DBS4N-04EN
EJA510A-DCS4N-07EF
EJA510A-DDS4N-09EN
EJA530A-DAS4N-02DE
EJA530A-DBS4N-04DN
EJA530A-DCS4N-07DF
EJA530A-DDS4N-09DN
EJA530A-DAS4N-02NE

ABOUT US:

Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
