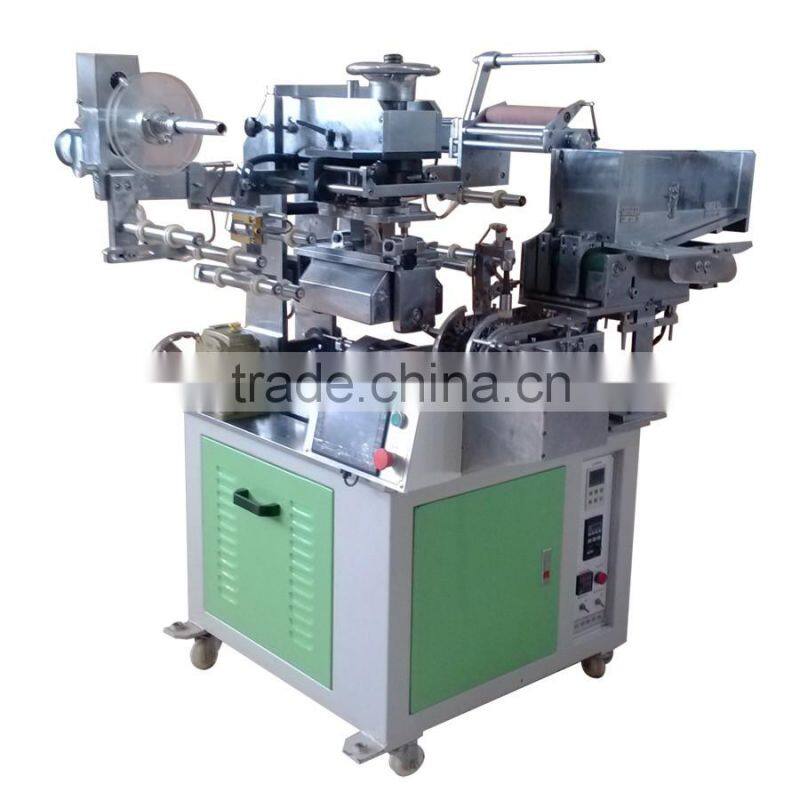

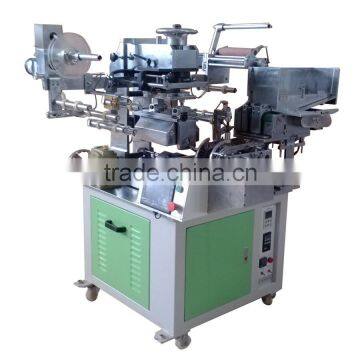

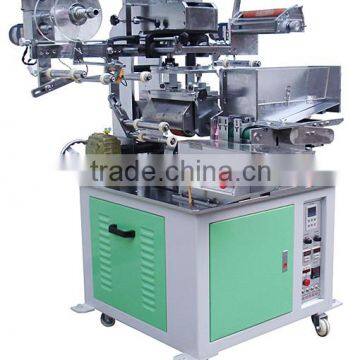

Fast Speed Lighters Heat Transfer Machine With Rubber Roller TH-80A

fast speed plastic lighters heat transfer machine with positioning function TH-50A

1.heat transfer machine special for pencil,ballpen,wood pen etc printing
2.auto operation, with fast speed 3000pcs/h

1.The New design concept,automatic up-down material, the chain feeding way more smooth

2.Rubber roller and transfer paper synchronous operation, no wrinkle paper or paper

3.Automatic balance of hot plate,Prevent defects such as transfer printing graphic.

4.The whole layout more accord with human body operation habit, fool operation what you see is what you get.

5.Taiwan inverter control constant torque operation to ensure heat transfer effect is consistent.

6.High speed running, practical speed can reach 3500 ps/h, enlarging the hopper can realize unattended in the trend of The Times.

7.It is widely used in high speed thermal transfer on cylinder objects,such as pencil ballpoint pen marker, pen whiteboard, pen eyebrow, pencil lipstick.

8. It is with auto-positioning function, it can recognise the direction for the production and put it into right direction.

1. Printing Diameter:φ6~φ20 mm
2. Printing Lenght:60~180mm
3.Transfer printing stroke:0~80 mm
4.Transfer printing speed:3000pcs/hr
(Subject to the limit of the interval length to spend membrane)
5. Power supply: 220V 50/60Hz 1.6kw

6. Machine Weight:480kg

7. Machine dimension:2200mm*1700mm*830mm
