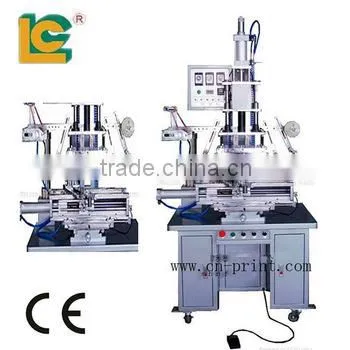

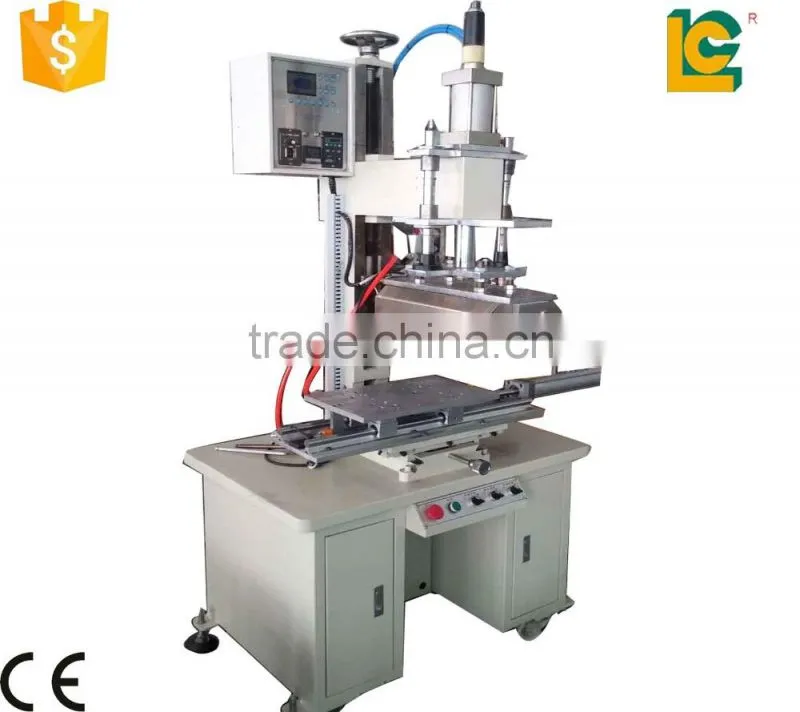

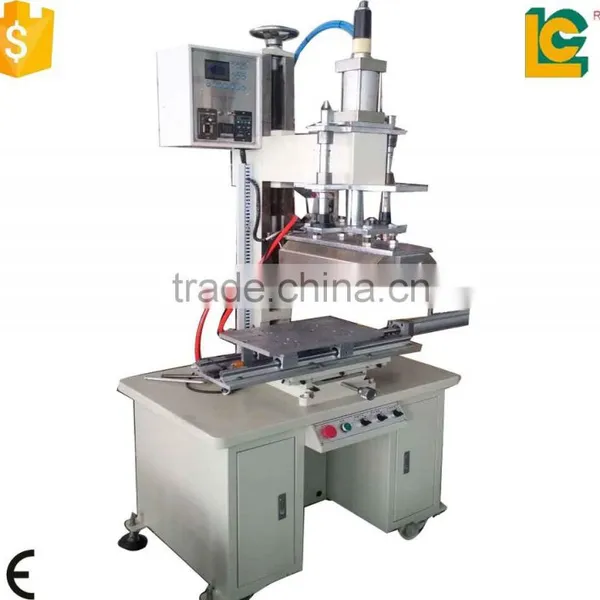

beer bottle Heat transfer printing machine TC-200R
beer bottle Heat transfer printing machine TC-200R
Heat transfer machine TC-200R | |
Model number |
TC-200R |
Operation |
Pneumatic |
Printing Colors |
Multicolor |
(Plane)Max Printing |
250*300mm |
(Cylinder)Max Printing |
200mm |
Length of Rubber Roller |
150mm |
Working table area |
600 x 200 mm |
Max pressure |
1300 Kg |
Up-and down distance |
80 mm |
Table Stroke |
300 mm |
Heat wattage |
1600 W |
Temperature range |
0 - 400oC |
Net Weight |
295 Kg |
Max Oil Pressure |
70kgf/cm2' |
Air Pressure |
0.5-0.7MPa |
Stamping speed |
500-1000P/hour |
Description:
There are Beautiful elegant appearance,there are mainly used for Premium Toy,stationery,wood,premium makeup and commodity surface of decoration.Special for hot stamping like ABS,PP,PE,PS,AS,PVC,acrylic etc.there are shapes:plane,Circular surface,surface,conical surface.

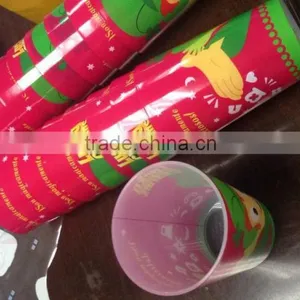

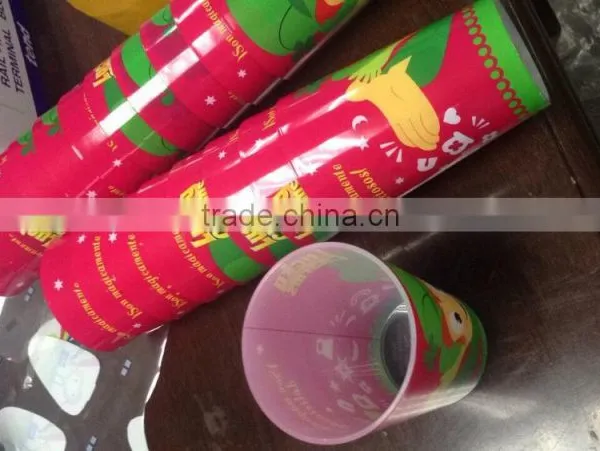

Scope round heat transfer products; such as: plastic cups, cosmetic bottles, glass bottles, bottle of transfer.
The Max.Stamping pressure ≤ 1000kgs
Max stamping diameter / full circle printing Φ140mm/Φ60mm
Stamping head height adjustable stroke: 53mm
Thermal transfer Cots area: outside diameter: 100 × length of 150mm. Red 45 degrees -85 degrees customers freedom of choice.
Advantage:
1, the toggle mechanism design, strong pressure, air pressure consumption;
2, stamping pressure, temperature, transfer time is adjustable;
3, the table can be moved manually before and after, to facilitate the safe and quick operation;
4, the table can be around the rotation adjustment
5, automatic document feeder, the collection of paper, and can adjust;
6, stamping head lift height adjustable;
7 shuttle table driven the the workpiece smooth rotation Stamping stamping quality is stable.
8 for stamping curved or round face, remove the shuttle table is the plane tipping machine.
More information:
Shipping way |
By sea, by air, by express |
Delivery time |
Within 7 days from the receipt of payment |
Loading seaport |
Shenzhen or Hong Kong, China |
package |
Plywood case |
Price term |
FOB Shenzhen, CFR, CIF, FCA, EXW etc |
Payment term |
100% T/T in advance(negotiation) |
beer bottle Heat transfer printing machine TC-200R
Pictures:
beer bottle Heat transfer printing machine TC-200R
Package
Machine Wrarpped in PVC film, wooden case/ply wood/as required
Should any more informations be required,please feel free to contact with us.
1 .The guarantee time is 1 years, and maintain is lifelong.
2. We will make sure the machine all work well before package.
3.Your inquiry related to our prduct &price will be replied within 12 hours .
4.Our company have 25 years experience in the printing file.
