Home > Products > Labsans Testing Systems > LD 23 Electronic Universal Testing Machine/Universal Tensile Testing Equipment

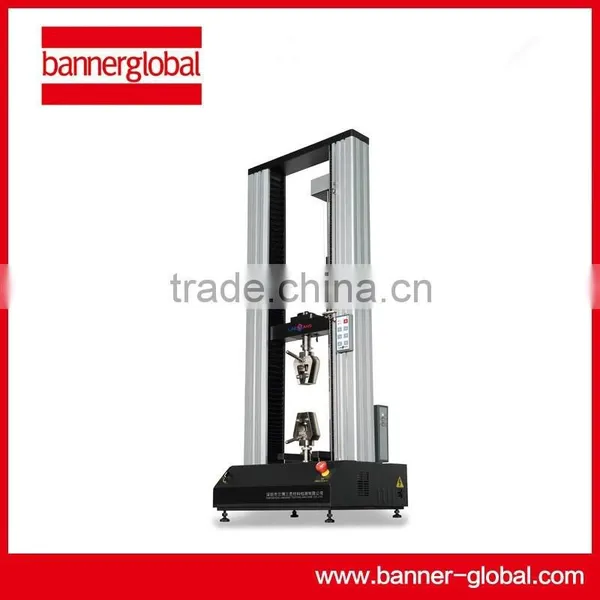

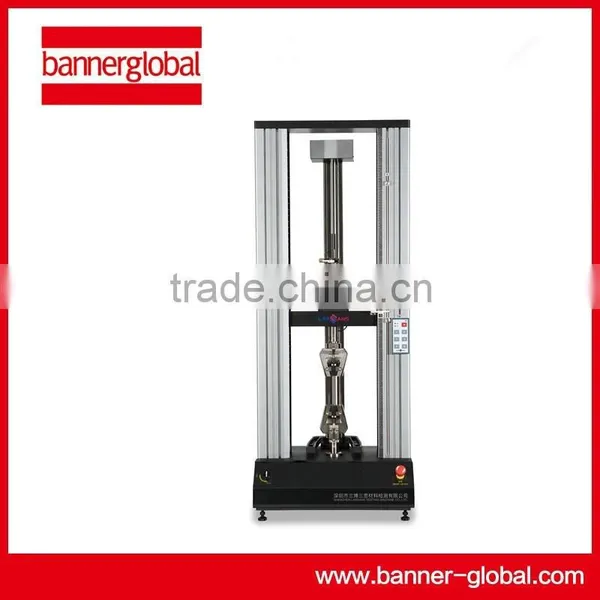

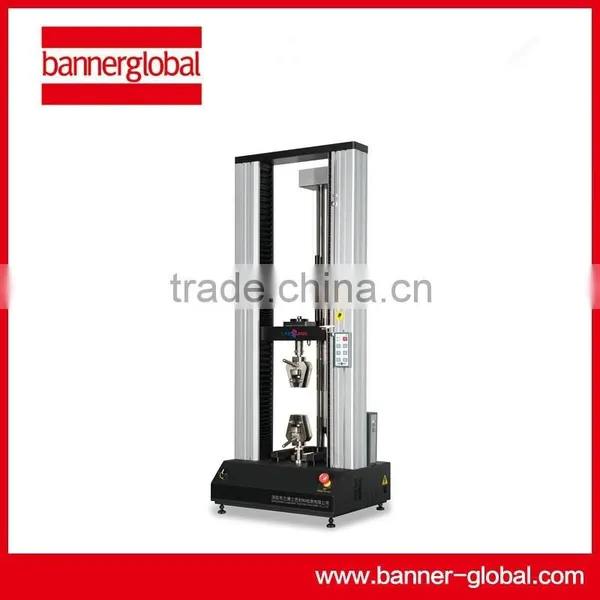

LD 23 Electronic Universal Testing Machine/Universal Tensile Testing Equipment
- 800 Set / Sets per Month
- Shanghai/Shenzhen
- T/T Credit Card PayPal
Product Details
Place of Origin: | Shanghai, China | Brand Name: | LABSANS | Model Number: | LD23 |
Power: | Electronic | Usage: | Universal Testing Machine |
Product Description
electronic universal testing machine for various materials
eqipment overview:
Electronic universal testing machineelongs to the LABSANS family which has compact structure and high reliability.It is equipped with an universal testing system to meet the test requirements of various products. With high reliability and easy operation, the machine has high speed, low vibration motor drive device and integrated, digital closed loop control device.During 1N to 100kN range,it still can achieve force control, displacement or strain control test. The existing structure has the advantages of compact structure, high stiffness of single column or double columns table configuration for test in low stress value;and also high strength double columns landing one that is applicable to the colliers value test. TestSuite software,increased abundant test methods standard base and various accessories make this system applied to a wide range of materials including plastic,film,fiber and thin lines,adhesive,foam materials,elastic body,biological materials,wood and paper products,thin metal,metal wires,high strength metal,components,fasteners and composite materials.
main features:
1 full set of compact, high rigid single column and double column load frame configuration;
2: high speed, low vibration MTS motor drive device;
3: world class maintenance free AC servo motor and server;
4: precision pre-load ball screw;
5: non clutch driving device, capable of running at full speed under the maximum force;
6: high resolution, digital closed-loop controller (integrated in the load frame);
7: convenient test setup and handhold;
8: multi function, easy to operate software, along with increased abundant test methods standard base (ISO, ASTM, DIN, EN, BS, etc.);
9:MTS automatic identification of the TEDS load sensor;
10: a full set of optional accessories, fixture, environmental system and extensometer;
11: anti rotating fixture / accessory device;
12: optional T type table;
13: linear guide device to ensure that the movement of high linearity;
14: beam displacement limit protection, overload protection, overheat protection, voltage overload protection, etc.;
15: EU standard integrated security guard;
16: fully comply with the mechanical device 2006/42/EC, low voltage 2006/95/EC, EMC directive 20044/108/EC and GOST-R;
17: durable test space protection.
Parameter chart:
Specification model | LD 23 | |
Maximum rated load | kN lbf | 30 6600 |
Load option | N,kN | 100N,250N,500N,1kN,2.5kN,5kN,10kN,20kN,30kN |
| lbf | 20,50,110,220,500,1100,2200,4400,6600 |
Frame type | Guide column landing type / table | 2 table |
Experimental space | Single/double | Single |
Maximum test speed | mm/min In/min | 1020 40.16 |
Minimum test speed | mm/min In/min | 0.005 0.0002 |
Displacement resolution | mm in | 0.00006 0.0000024 |
Maximum displacement resolution maximum length | mm in | 1000 39.37 |
Power | V AC | 200-230V AC, 12Amps, 50/60Hz, 2400W |
| Phase number | 1 |
Distance between columns | mm in | 420 16.54 |
Standard length | mm in | 1000 39.37 |
Extended length | mm in | 1300 51.2 |
Standard length | mm in | 1739 68.5 |
Stretch length | mm in | 2039 80.3 |
Frame width | mm in | 826 32.5 |
Frame depth | mm in | 768 30.2 |
Standard length | kg Lb | 328 721.6 |
Stretch length | kg Lb | 345 759 |
Calibration criterion | ISO 7500 0.5/ ASTM E4 | ISO 7500 1 |
Force range | 1-100%specified load | 0.5%-1%specified load |
Maximum test speed under rated load | 100% | |
Maximum test speed under rated load | 100% | |
Speed accuracy | Set speed<0.01mm/min: The speed accuracy is within the range: ±1.0%. Set speed≥0.01mm/min: The speed accuracy is within the range : ±0.2%. | |
Displacement accuracy | ±0.5% | |
Strain accuracy | ASTM E83 ISO 8513 | |
security guard | Force overload protection, displacement limit, voltage overload protection and other | |
Force overload protection | 10% | |
Data acquisition frequency | 1000Hz | |
Control loop frequency | 1000Hz | |
Motor and drive system | AC servo motor | |
Ball screw | preload | |
Displacement measurement system | Photoelectric encoder | |
Additional DC regulation channel | 2 channels (example: resistance extensometer and force sensor) | |
Additional digital control channel | 1 channels (example: large deformation and quadrature encoder) |
