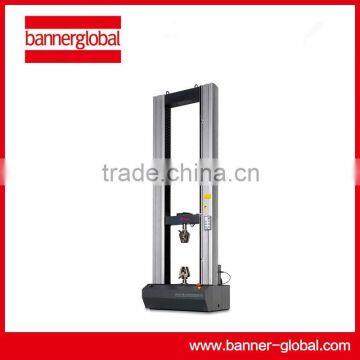

Help CenterLD25 Electronic Tensile Testing Machine/ Universal Tensile Tester
Related Products
-
LD25 Universal Tensile Testing Machine for Metal MaterialsNegotiableMOQ: 1 Set -
LD26.105 Microcomputer Controlled Electronic Universal Testing MachineNegotiableMOQ: 1 Set
-
Microcomputer Controlled Universal Testing Machine ElectronicNegotiableMOQ: 1 Set
-
Electronic Fabric/rubber/steel Universal Tensile TesteNegotiableMOQ: 1 Set
-
2016 Hot Selling 5KN LD22.503 Electronic Laboratory Equipment/ Universal Tensile Testing MachineUS$ 15,000 - 20,000MOQ: 1 Set
Universal Tensile Testing Equipment for Metal Materials
APPLICATIONS:
Tension, Compression, Flex/bend, Shear, Peel, Tear;
MATERIALS AND COMPONENTS:
Metals, Composites, Polymers, Construction materials, Wood and paper products, Biomedical products, Fibers and textiles, Adhesives and coatings, Foam, More;
| Maximum rated force capacity | 600 kN (132000 lbf) |
| Force capacity options | 200 kN, 300 kN, 600 kN 44000 lbf, 66000 lbf, 13200 lbf |
| Frame type | Floor-standing |
| Test zones | Single/Dual |
| Maximum test speed | 254 mm/min (10 in/min) |
| Minimum test speed | 0.001 mm/min (0.00004 in/min) |
| Position resolution | 0.000016 mm (0.0000006 in) |
| Vertical test space crosshead travel | 1300 mm (51.2 in) |
| Space between columns | 750 mm (29.52 in) |
| Frame height | 2820 mm (111.02 in) |
| Frame width | 1660 mm (65.35 in) |
| Frame depth | 1272 mm (50.08 in) |
| Weight | 3500 kg (7716 lb) |
| Power requirement | Three-phase 380-415 V AC, or 440-480 V AC, 7.2 Amp 50/60 Hz, 5000 W |
SERIES 20 SYSTEM KEY FEATURES:
1. Complete selection of compact, high-stiffness, 1- and 2-column load frame confgurations
2. High-speed, low-vibration MTS electromechanical drives
3. World-class, maintenance-free AC servomotor and amp
4. Precision, pre-loaded ball screws
5. Non-clutched drives, rated for full speed at maximum force
6. High-resolution, digital closed-loop controls (integrated into load frame)
7. Convenient test setup and control handset
8. Versatile, easy-to-use MTS TestSuite TW software with standards-compliant test template library (ASTM, ISO, DIN, EN, BS, and more)
9. Load cells with TEDS self-identifcation capabilities
10. Complete selection of grips, fxtures, environmental systems and extensometers, (optional)
11. Dual-zone test space (Models 44 and 45) reduce setup time
12. Anti-rotation grip/fxture mounting
13. Optional T-slot table
14. Automatic limit checking of crosshead position, overload, over-temperature, over-voltage, etc.
15. Durable test space protection
Packaging: packed with export standard wooden box.
Shandong Banner International Trade Co., LTD., is your most reliable test helper in material testing industry. Bannerglobal is our brand. The founder and main leaders of our company worked in MTS Systems Corporation more than ten years and provided solutions for various demanding and extremely complex material testing in many fields of China. Our goal is to create the best test experience for customers by providing the best quality products, professional technical support and world-class service to ensure accuracy, repeatability and reliability of test data.
Cathy Wang
Shandong banner international trade Co.,Ltd
Web:
www.bannerglobal.en.china.cn
Tel: +86 537 3167400 Fax: +86 537 3165401
Mob: +86 15898600195
