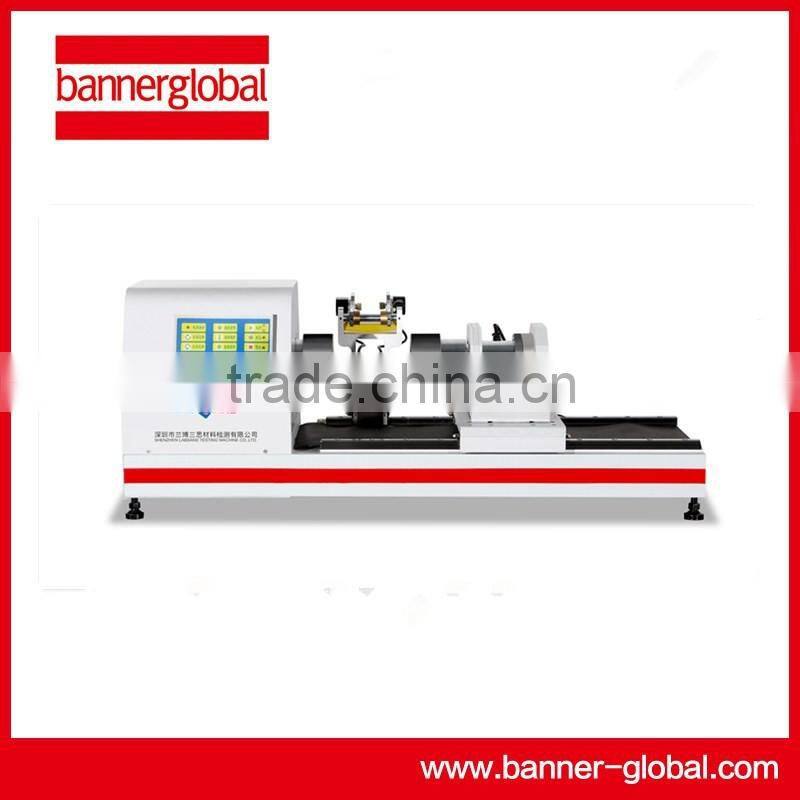

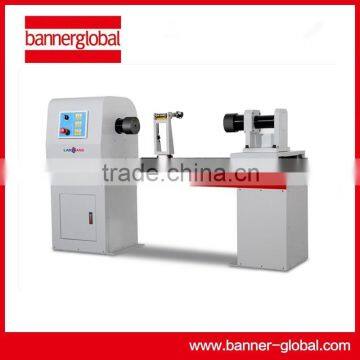

500Nm Electronic Torsion Testing Machine Price/Torsion Tester

Shandong Banner International Trade Co., Ltd.
500Nm Electronic Torsion Testing Machine Price/Torsion Tester thumbnail-1
500Nm Electronic Torsion Testing Machine Price/Torsion Tester thumbnail-2
500Nm Electronic Torsion Testing Machine Price/Torsion Tester photo-1
500Nm Electronic Torsion Testing Machine Price/Torsion Tester photo-2
US$ 7,832 - 15,664 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
LABSANS
Model Number:
LD 31.502
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name LABSANS
Model Number LD 31.502
Power Electronic
Usage Strength Testing Machine

                                                        Torsion Electronic Tester Price

Equipment overview:

LD31 microcomputer controlled electronic torsion testing machine is a new type of material testing machine with electronic technology and mechanical transmission. It has a wide range of loading speed and measuring range. It has high accuracy and sensitivity, and can also carry out automatic control test of constant velocity and displacement.

The series models are mainly used for the torsion test of metallic materials with torque lower than 1000Nm.

Product Description

Meet standards:

GB/T10128-1998 "metal room temperature torsion test method"



Application industry:

Measurement and quality control; metallurgical steel; mechanical manufacturing; civil aviation; high school; Scientific Research Institute; commodity inspection and arbitration, technical supervision departments; building materials ceramics; petrochemical industry.



Original configuration:

Special twist device 1 sets



Scalable configuration:

According to the test standard or test sample provided by the customer or the test sample of the fixture or special design of the fixture and accessories, the cost of the other.

 500Nm Electronic Torsion Testing Machine Price/Torsion Tester

Technical parameters:

Model

LD31.502

Measurement parameters

Maximum torque

500 Nm

Torque measurement range

5Nm-500Nm

Test machine level

1/0.5

Relative error of torque

±1%(1)/±0.5%(0.5)

Torque resolution (Nm)

Maximum torque 1/300000

Torsion angle measuring   range

0°-10000°

Control parameter

Torsion angle indication   relative error

±1.0%

Torsion angle resolution

0.0045°

Relative error of torsion   angle

±1.0%

Torsion speed

6°/min -720°/min

Relative error of torsion

Set value±1.0%

The maximum distance between   chucks

650mm

Sample parallel section   diameter

φ6mm-φ20mm

Other

Motor power

0.4kW (CTT1502)/0.75kW(CTT1103)

Power Supply

220±10%V /50Hz

Machine dimension

1700mm×510mm×1150mm

Machine weight

500kg

Company Information

Shandong Banner International Trade Co., LTD. , is your most reliable test helper in material

testing industry. Bannerglobal is our brand. The founder and main leaders of our company worked

in LABSANS Systems Corporation more than ten years and provided solutions for various demanding

and extremely complex material testing in many fields of China.

We provide the most abundant product lines in the industry, such as electronic universal testing

system by screw driven, electro-hydraulic servo fatigue testing system, impact test system,

biological tissue engineering test, structural test and collision analog system, etc. Our customers

cover almost all markets and industries of the world, including regenerative medicine,

aerospace, energy, electric power, heavy industry, electronics and automobile manufacturing.

500Nm Electronic Torsion Testing Machine Price/Torsion Tester

Our Services



1. Pre-service



    24 Hours online service for your consult.



    Help choose right model,and a series  of service,person,advise.



2. Middle service



    --Give you best offer



    --Provide discount for many sets order



    --Do customer's request:



    --Choose payment term you convienent.



    --Promptly production and delivery,inform you in time.



    --Can provide invoice value as you like to decrease your tax.



3. After sale service



   --1 year warranty service and all life maintenance.



   --Technical Egineer are avalible for oversea trainning.



   --Free change for some parts



   --Remote control technical consult



   --Free installation DVD



   --Maintenance plan



4. Commitment:



We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

 500Nm Electronic Torsion Testing Machine Price/Torsion Tester500Nm Electronic Torsion Testing Machine Price/Torsion Tester

Packaging & Shipping

Packaging: packed with export standard wooden box.

500Nm Electronic Torsion Testing Machine Price/Torsion Tester

500Nm Electronic Torsion Testing Machine Price/Torsion Tester
