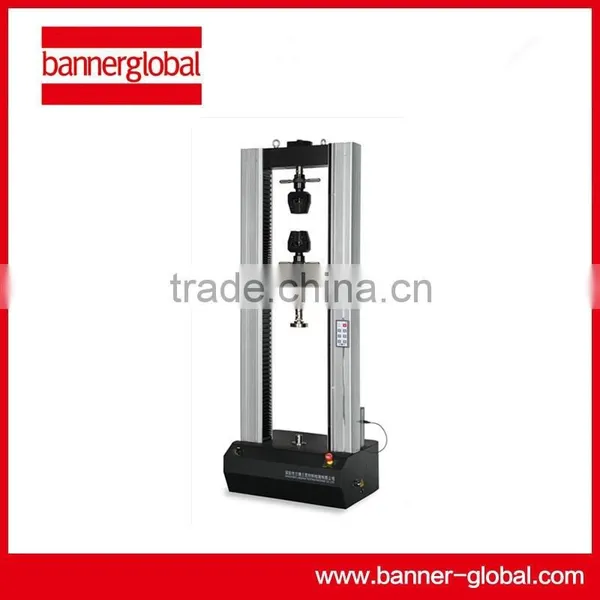

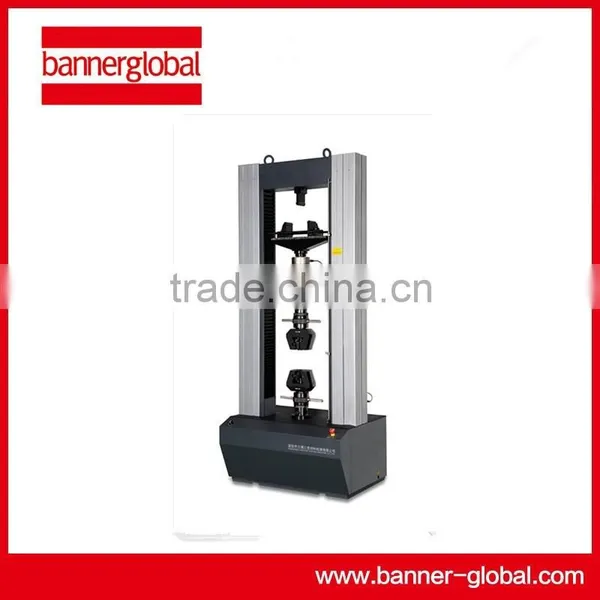

50KN Electronic Tensile Testing Machine/ Universal Tensile Tester
- 200 Set / Sets per Month
- Guangzhou Port
- T/T Credit Card PayPal
Product Details
Place of Origin: | Shanghai, China | Brand Name: | LABSANS | Model Number: | LD 25 |
Power: | Electronic | Usage: | Universal Testing Machine |
Product Description
Universal Tensile Testing Equipment for Metal Materials
APPLICATIONS:
Tension, Compression, Flex/bend, Shear, Peel, Tear;
MATERIALS AND COMPONENTS:
Metals, Composites, Polymers, Construction materials, Wood and paper products, Biomedical products, Fibers and textiles, Adhesives and coatings, Foam, More;
Maximum rated force capacity | 50k N |
Force capacity options | 20 kN, 30 kN, 60 kN |
Frame type | Floor-standing |
Test zones | Single/Dual |
Maximum test speed | 254 mm/min (10 in/min) |
Minimum test speed | 0.001 mm/min (0.00004 in/min) |
Position resolution | 0.000016 mm (0.0000006 in) |
Vertical test space crosshead travel | 1300 mm (51.2 in) |
Space between columns | 750 mm (29.52 in) |
Frame height | 2820 mm (111.02 in) |
Frame width | 1660 mm (65.35 in) |
Frame depth | 1272 mm (50.08 in) |
Weight | 3500 kg (7716 lb) |
Power requirement | Three-phase 380-415 V AC, or 440-480 V AC, 7.2 Amp 50/60 Hz, 5000 W |
SERIES 20 SYSTEM KEY FEATURES:
1. Complete selection of compact, high-stiffness, 1- and 2-column load frame confgurations
2. High-speed, low-vibration MTS electromechanical drives
3. World-class, maintenance-free AC servomotor and amp
4. Precision, pre-loaded ball screws
5. Non-clutched drives, rated for full speed at maximum force
6. High-resolution, digital closed-loop controls (integrated into load frame)
7. Convenient test setup and control handset
8. Versatile, easy-to-use MTS TestSuite TW software with standards-compliant test template library (ASTM, ISO, DIN, EN, BS, and more)
9. Load cells with TEDS self-identifcation capabilities
10. Complete selection of grips, fxtures, environmental systems and extensometers, (optional)
11. Dual-zone test space (Models 44 and 45) reduce setup time
12. Anti-rotation grip/fxture mounting
13. Optional T-slot table
14. Automatic limit checking of crosshead position, overload, over-temperature, over-voltage, etc.
15. Durable test space protection
Packaging: packed with export standard wooden box.
