CLEM-V High-power Multi-purpose Electromagnetic System
Main application:
l Deep metallic and non-metallic mineral resources exploration;
l Geothermal and groundwater exploration;
l Petroleum and natural gas resources exploration;
l Coal goaf, karsts development zone and air defense project exploration; Active fault survey, crust and earthquake research;
l Roadbed, tunnel of highways and railways exploration;
l Environmental pollution monitoring and detection.
System Components:

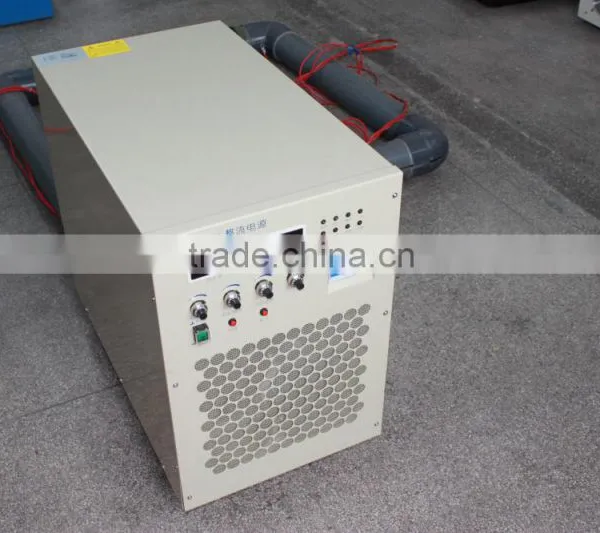

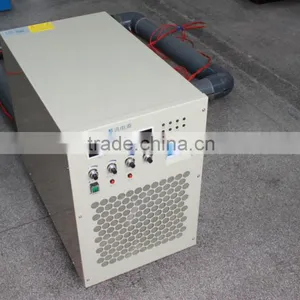

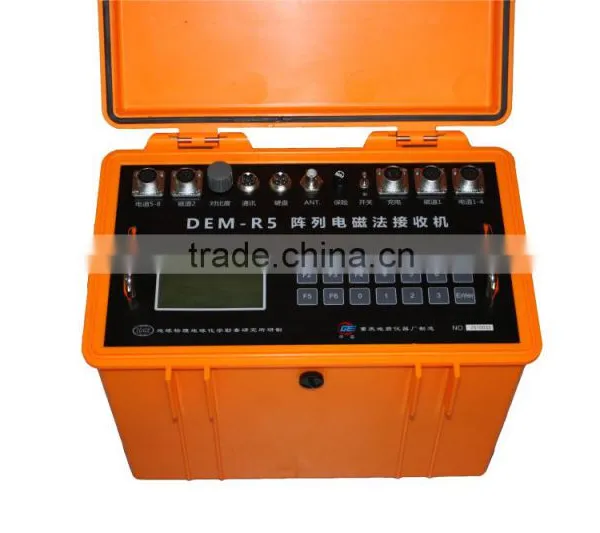

CLEM-P30 High-power supply, CLEM-T30 High-power electromagnetic transmitter, CLEM-R5 array electromagnetic receiver, magnetic sensor, processing software, and other related accessories.
Main Function:
Array type fusion detection in manner of natural field electromagnetic method and artificial field electromagnetic method are able to be carried out (CSMAT, TDIP, FDIP, SIP, CR).
Features and Functions
l Multi-function transmitting: meeting high-power transmitting requirements of CSAMT, TDIP, FDIP, SIP, and CR;
l Single-frequency and multi-frequency power supply: multi-parameter measurement, improving work efficiency;
l Fully automatic frequency sweep power supply: automatic switching of power supply as per operating frequency setting, without human intervention;
l High-precision GPS + oven-controlled crystal synchronization technologies: no time drift accumulation, achieving all-weather precise and synchronized power supply;
l CPLD based control technology: supporting upgrade of software and hardware.
Main technical Specifications
Frequency Range |
8000Hz~1/128Hz |
High density frequency |
20-frequency points for each frequency magnitude |
Maximum voltage |
1000V |
Maximum current |
30A |
Maximum power |
30KW |
Power waveform |
multi-frequency, single-frequency |
Operating modes |
automatic or manual |
Protection function |
overvoltage, overcurrent, overheating |
GPS Synchronization accuracy |
UTC±20nS |
Thermostatic Transistor Synchronization accuracy |
4μS/hour ±0.081μS |
Volume |
660*440*440mm |
Weight |
43kg |
Packed by standard export fumigated wooden cases.
Ship from Qingdao port, is expected to arrive about 30days
Shandong Banner International Trade Co., LTD., is your most reliable test helper in material testing industry. Bannerglobal is our brand. The founder and main leaders of our company worked in MTS Systems Corporation more than ten years and provided solutions for various demanding and extremely complex material testing in many fields of China. Our goal is to create the best test experience for customers by providing the best quality products, professional technical support and world-class service to ensure accuracy, repeatability and reliability of test data.
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , T/C, Western Union,MoneyGram or other payment terms we reach agreement.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date.
If You meet with quality problem, we promise to responsible for it.
Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
