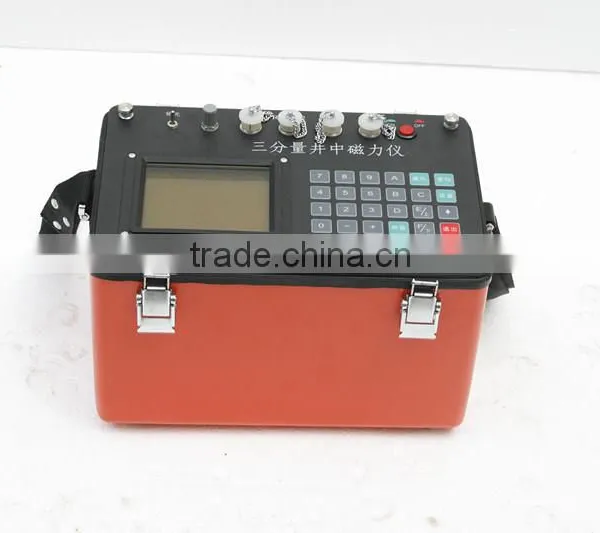

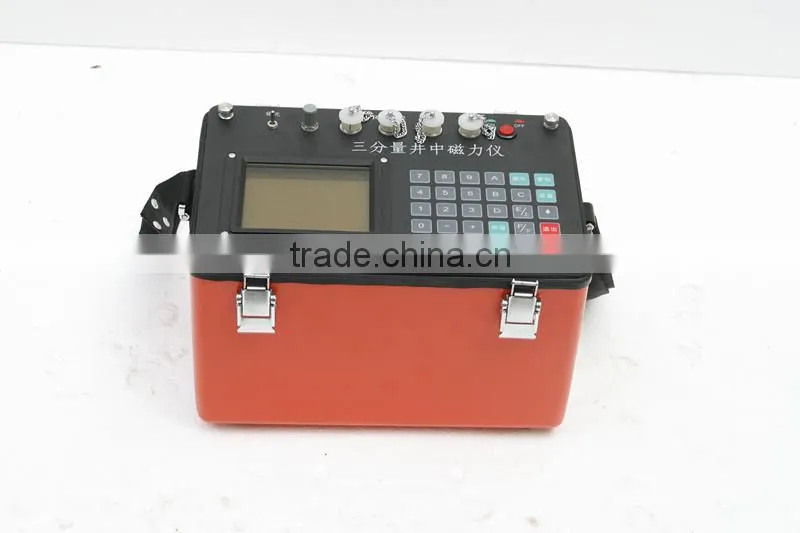

Winch series JCX-3 Three-Component Borehole Magnetometer
Main Application
l Magnetic minerals associated
ore deposits exploration
l Verify ground magnetic abnormality
and determine the natural of abnormality
l Identified the ore body of occurrence,
estimate the mineral grade
l Determine the depth and direction of
the blind ore to guide the layout of drill
l Operate with ground magnetic measurement
to making 3D interpretation.
System Component
Ground host, probes, winch series, data processing software and other related accessories.
Main Technical Specifications
Measurement Range |
-99999nT~+99999nT |
Horizontal component H |
≤400nT |
Z Magnetic Sensor to the Original |
≤300nT |
Inclinometer Measurement Range |
0~45°,Error <0.2° |
Azimuth Angle Measurement Range |
0~360°,Error <0.2°(Vertex≥3°) |
Linearity |
≤2‰ |
Probe Dimension |
Φ42*1400mm |
Probe Weight |
4.2kg |
Measured Well Depth |
2000m, 3000m is customizable |
Instrument Working Power Supply |
DC12V/200mA |
Working Environment: Temperature |
0℃~ 70℃,90%Rh |
Instrument Dimension |
305*200*228mm |
Instrument Weight |
4kg |
A corner of workshop
Mobile: +8615866073062
Skype: betty_3541
Tel: +86 537 3167400 Fax: +86 537 3165401
Shandong banner international trade Co.,Ltd
Web:
www.bannerglobal.en.china.cn
1> Inner package: dust-proof plastic bag
2> Outer package: standard export wooden case with pallet
3> Special package: according to buyer's requirements
4> The packages suitable for international transport by sea, by air or any other delivery methods
5> Shipping by sea with CFS/CFS from Qingdao sea port or for your requirement.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
