ATEM-IV Transient Electromagnetic Measurement System
Main Application:
l Deep metallic and non-metallic mineral resources exploration;
l Geothermal, petroleum and natural gas resources exploration;
l Groundwater exploration and water resources detection
l Karsts, archaeology and manual defense project exploration;
l Coal goaf, fault and collapse column detection
l Advanced detection for tunnel aquifer
System Components

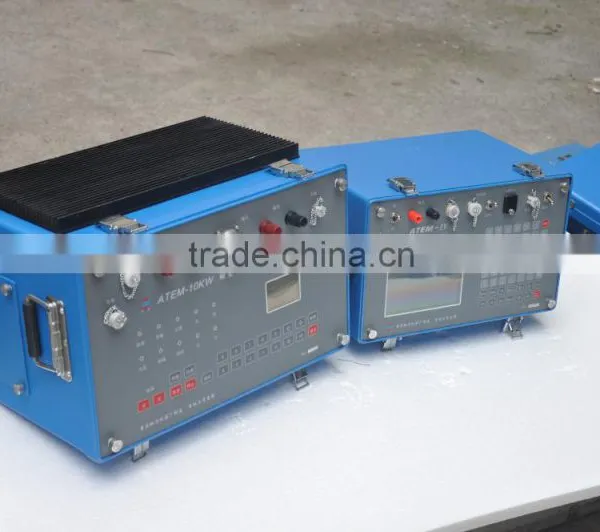

ATEM transmitter (3KW or 10KW), ATEM-IV Receiver, transmitting coil, magnetic probe receiver, data processing software and other related accessories.
Features and Functions
l According to the detecting range to choose the suitable transmitter(3KW or 10 KW);
l Ultra-high power, quick shut-off capability of ATEM transmitter;
l Multifunction in one machine, the minimum sampling frequency of ATEM-IV Receiver can reach 1uS, which satisfied all the demand of the shallow and medium deep exploration.
ATEM Transmitter (the main technical specification)
IndexType |
ATEM 10KW |
ATEM 3KW |
Maximum output voltage |
DC 4V~360V |
DC 4V~150V |
Maximum output current |
50A (continuous), 70A (pulse) |
|
Frequency Range |
Power Supply 1.25~125Hz (8 frequency spots) |
|
Output waveform |
Two Types (continue surface wave, pulse) |
|
Minimum Shutoff time |
1.2μs (pure resistance load) ,Change with the load coils |
|
Synchronization modes |
conductor synchronization |
|
Working temperature |
-10°~ +50°C, 95%RH |
|
Weight |
12kg |
9kg |
Volume |
490*300*300mm |
360*250*250mm |
ATEM-IV Receiver (the main technical specification)
Sampling Frequency |
fastest 1μs, Optional |
Dynamic Range |
≤156dB |
Superposition Times |
1~9999 Optional |
Bandwidth |
DC to 22kHz |
Synchronizing mode |
Conductor Synchronization |
Volume |
360×230×300mm |
Weight |
7kg |
Packed by standard export fumigated wooden cases.
Ship from Qingdao port, is expected to arrive about 30days
