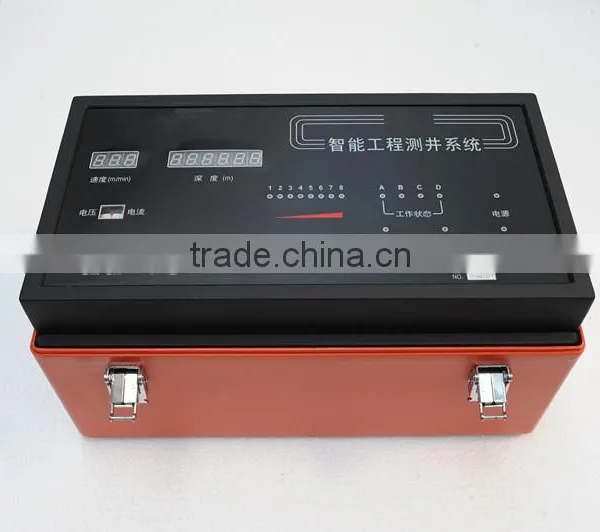

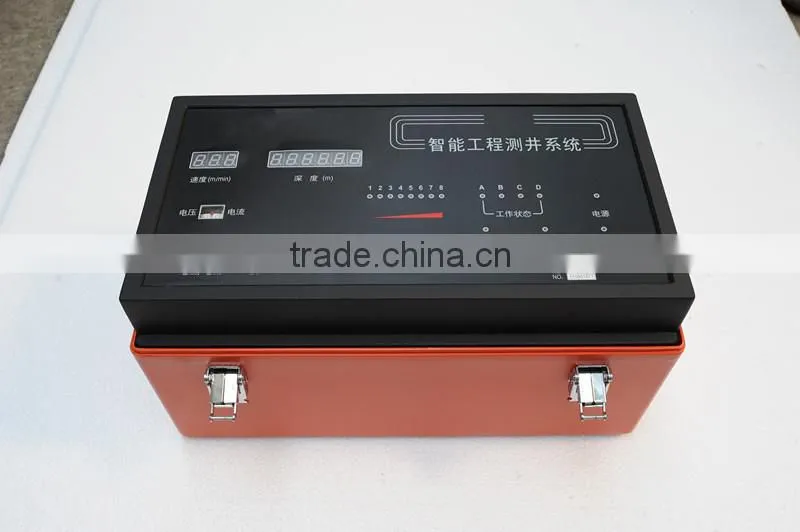

High reliability JGS-1B Intelligent Engineering Logging System
System components
Acquisition host machine, operating software and computer
Winch and cables
Various down-hole probes
Features and Functions
l Computer operating
l The probe is of rich measurement parameters
and wide application range
l All kinds of winch series, manually or automatically
is selectable, depth ranges from 300 to 3000 meters
l High reliability, easy of operating and maintaining
l Bulk or car load is selectable
Main Technical Specifications
A/D |
12bit, Magnification K=0.5~128 |
Counting Channel Frequency |
≤2MHz |
Digital Signal Transmission Frequency |
9600bit/s |
Power Supply Cycle |
400ms |
Current |
2mA~500mA optional 2,5,10,20,50,100,200,500 mA eight taps to choose |
Analog Signal Input Range |
≤±10V |
Logging Speed |
0~30m/min optional(decided by the sampling interval) |
Depth Measurement Error |
≤0.4‰ |
Display of Depth Range |
0~9999.99 meter |
Operating Power Supply |
AC220V±10% 50Hz ±5% |
Power Consumption |
<200W |
Working Temperature |
-10℃~ +50℃ |
Volume |
420*260*210mm(JGS-1B), 480*280*230mm(JGS-3) |
Weight |
7kg(JGS-1B), 10kg(JGS-3) |
Continuous working time |
≤24 hours |
A corner of workshop
Mobile: +8615866073062
Skype: betty_3541
Tel: +86 537 3167400 Fax: +86 537 3165401
Shandong banner international trade Co.,Ltd
Web:
www.bannerglobal.en.china.cn
1> Inner package: dust-proof plastic bag
2> Outer package: standard export wooden case with pallet
3> Special package: according to buyer's requirements
4> The packages suitable for international transport by sea, by air or any other delivery methods
5> Shipping by sea with CFS/CFS from Qingdao sea port or for your requirement.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
