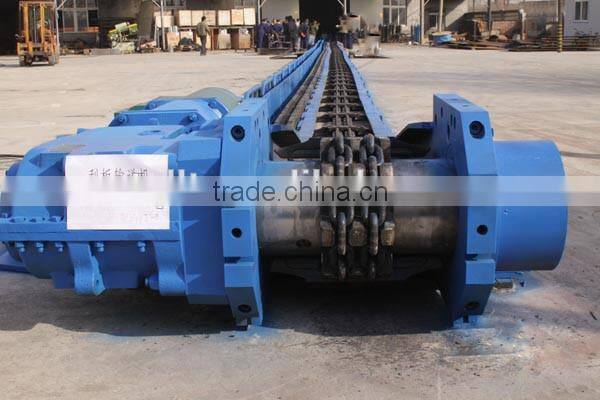

Scraper Chain Conveyor for coal transporting
A conveyor system is an efficient means of materials movement.
This system is frequently used in transporting materials between specific points over a fixed path.
There are a wide variety of conveyors (i.e., chain conveyor) that can be employed depending on the characteristics of the material to be moved as well as the move to be made.
Chain conveyors are a specialized variety of conveyor system and are used in various production implementations.
Chain conveyor Parameters
| model | SGB-620/40T | SGB-420/30 | SGD-280/11 | SGD-320/17B | |
| Transportation volume(t/h) | 150 | 80 | 30 | 40 | |
| Design length(m) | 100 | 100 | 80 | 80 | |
| Electromotor | type | JDSB-40 | JDSB-30 | JDSB-11 | JDSB-17 |
| power(KW) | 40 | 30 | 11 | 17 | |
| rotate speed(r/min) | 1470 | 1470 | 1450 | 1470 | |
| voltage(V) | 380/660 | 380/660 | 380/660 | 380/660 | |
| Retarder ratio | 1:24.564 | 1:24.923 | 1:18.9 | 1:24.95 | |
| Scraper chain | chain speed(m/s) | 0.868 | 0.738 | 0.618 | 0.59 |
| breaking force | ≥320 | ≥190 | ≥127.4 | ≥190 | |
| chain link spec.(mm) | 18*64 | 14*50 | 14*40 | 14*50 | |
| scraper distance (mm) | 1024 | 1000 | 800 | 700 | |
| middle groove dimension(mm) | 1500*620*180 | 1200*420*180 | 1200*280*125 | 1200*3200*150 | |
| machine weight (KG) | 17800 | 8581 | 3100 | 6400/6800 | |
Our Company has strong technological power, complete testing equipment,and the domestic advanced level of chain design development and process control means. Products are widely used in coal mine, cement, metallurgy, hoisting, ship, boiler slag, greening and other industries.
