CW61160 Heavy Duty Conventional Lathe
YIMAKE CW61160 heavy duty engine lathe machine tool is universal metal machining equipment for metal processing,mainly used for turning the internal and external cylindrical surface,conical surface and other rotating surfaces,and turning internal and external pipe threads such as metric,inch,module,DP thread etc.,meanwhile this series is also used to drill holes in bar material and make oil groove.
This series lathe is able to process metal materials including cast iron,steel and non-ferrous metals.
Main Features:
Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to realize high rigidity and precision;
Headstock gears hardened and precision ground to achieve high precision and low noise.
Detailed Specifications:
SPECIFICATION OF YIMAKE LATHE MACHINE | |||
ITEMS |
UNIT |
CW61160 Engine Lathe |
|
Capacity |
Swing over bed |
mm |
Φ1600 |
Swing over gap |
mm |
- |
|
Swing over cross slide |
mm |
Φ1200 |
|
Distance between centers |
mm |
1500/3000 |
|
Width of bed way |
mm |
755 |
|
Max. load capacity |
T |
5 |
|
Spindle |
Spindle bore |
mm |
Φ130 |
Spindle nose taper |
- |
Metric 140 MT#5 |
|
Spindle nose type |
- |
C15 |
|
Spindle speed steps |
- |
21 steps |
|
Spindle speed range |
rpm |
3.15-315 |
|

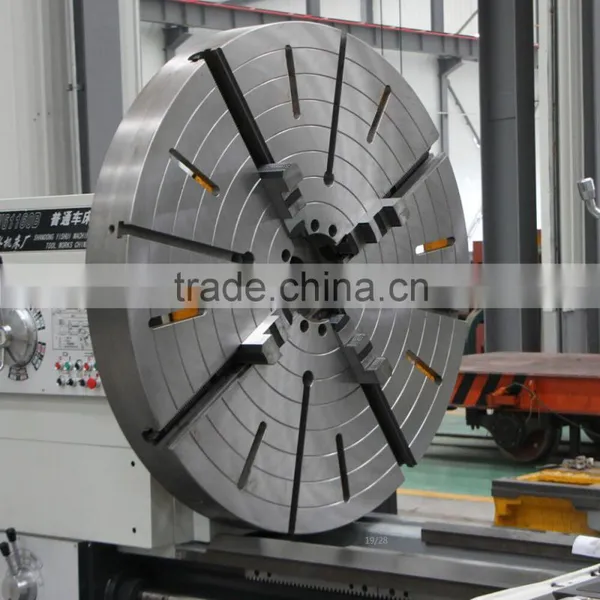

Chuck size |
mm |
Φ1000 |
|
Chuck type |
- |
4-jaw manual |
|
Turret |
Turret type |
- |
Manual 4 position |
Tool shank size |
mm |
45x45 |
|
Turret travel |
mm |
300 |
|
Carriage |
X axis feed grade/range |
mm/r |
56/0.05-6 |
Z axis feed grade/range |
mm/r |
56/0.1-12 |
|
X axis rapid traverse speed |
mm/min |
1870 |
|
Z axis rapid traverse speed |
mm/min |
3740 |
|
X axis travel |
mm |
520 |
|
Z axis travel |
mm |
1300/2800 |
|
Tailstock |
Tailstock quill diameter |
mm |
Φ140 |
Tailstock quill taper |
- |
MT#6 |
|
Tailstock quill travel |
mm |
300 |
|
Motors |
Main spindle motor |
kW |
22 |
Rapid traverse motor |
kW |
1.5 |
|
Coolant pump motor |
kW |
0.125 |
|
Thread |
Metric thread grade/range |
mm |
44/1-120 |
Inch thread grade/range |
T.P.I. |
31/ 3/8-28 |
|
Module thread grade/range |
mm |
45/0.5-60 |
|
DP thread grade/range |
D.P. |
30/1-56 |
|
Dimensions |
Width x Height |
mm |
2250x2150 |
Length |
mm |
4600/6100 |
|
Weight |
Net weight |
T |
13.1/14.0 |
Standard Accessories:
Tool post,Tailstock,Chuck,Lighting lamp,Coolant pump, Pad iron etc.
Optional Accessories:
Digital readout,Chuck,Faceplate,Chasing dial,Center rest,Follower rest,signal light,
protective cover(lead-screw,chuck,tool post),and Grinding attachment etc.
Customizing support:
Painting color,headstock height,lathe bed length etc.
Standard package:
Steel pallet with plastic over-clothe.
