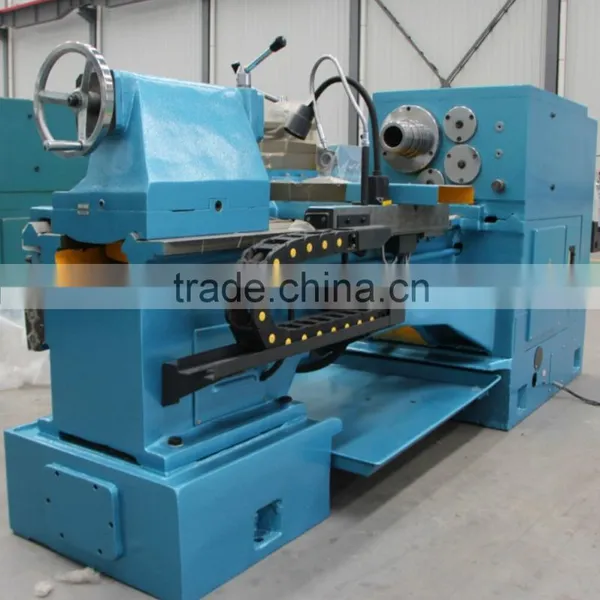

C630 Series Universal Lathe With Cheap Price, Economic Lathe
US$ 9,999 - 29,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CW6163 Conventional Lathe Machine and Universal Lathe Machine With High Quality and Good PriceUS$ 15,000 - 19,000MOQ: 1 Set -
CW6263 Gapbed Lathe MachineUS$ 15,000 - 17,000MOQ: 1 Set
-
CW6180 Conventional Lathe MachineUS$ 15,500 - 17,500MOQ: 1 Set
-
CW6280 Gap-bed Universal Lathe MachineUS$ 14,700 - 16,200MOQ: 1 Set
-
CW61100 Heavy Duty Metal LatheUS$ 30,000 - 34,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
Normal
Automatic Grade
Manual
Max. Swing Diameter
630-1200mm
Place of Origin
Shandong, China
Brand Name
Yishui Lathe
Model Number
C630 Series
Voltage
Customer's Requirement
Power(W)
7.5/11kw
Dimension(L*W*H)
According to customizing
Weight
According to the bed length
Certification
ISO9001, ISO14001
After-sales Service Provided
Engineers available to service machinery overseas
C630 Series Universal Lathe with cheap price, Economic Lathe
YIMAKE C630 series conventional horizontal engine lathe machine tool is universal metal machining equipment for metal processing,mainly used for turning the internal and external cylindrical surface,conical surface and other rotating surfaces,and turning internal and external pipe threads such as metric,inch,module,DP threads etc.,meanwhile this series is also used to drill holes in bar material and make oil groove.
This series lathe is able to process metal materials including cast iron,steel and non-ferrous metals.
Standard Accessories:

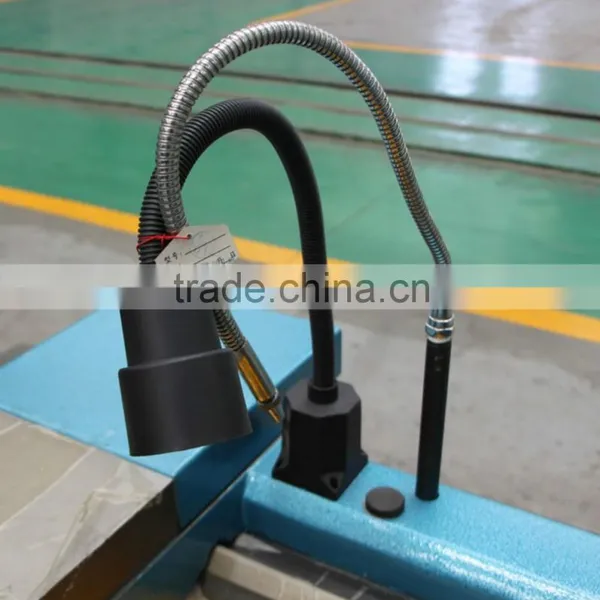

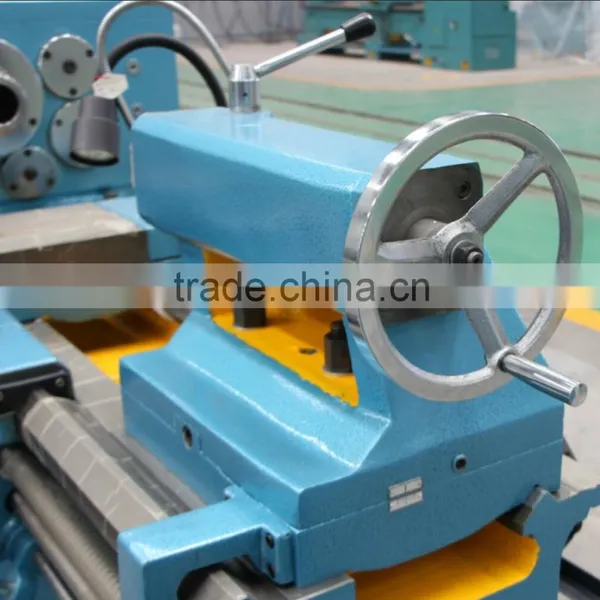

Tool post,Tailstock,Chuck,Lighting lamp,Coolant pump, Pad iron etc.
Standard package:
Steel pallet with plastic over-clothe.
| ITEMS & MODEL | C630-1B | C630-1BG | C630-1BG150 | C630-1BG200 | |
| C630-1BM | C630-1BMG | C630-1BMG150 | C630-1BMG200 | ||
| Swing over bed (mm) | 630 | 800 | 900 | 1000 | |
| Swing over carriage (mm) | 345 | 545 | 645 | 745 | |
| Distance between centers (mm) | 750/1000/1500/2000/3000/4000/5000/6000/7000/8000/9000/10000 | ||||
| Max.length of machining (mm) | 660/940/1410/1910/2910/3910/4910/5910/6910/7910/8910/9910 | ||||
| Swing over saddle gap (mm) | 800 | 1000 | 1100 | 1200 | |
| Max. length in saddle gap (mm) | 230 | ||||
| Width of bed (mm) | 490/550 | ||||
| Spindle bore (mm) | 70 | ||||
| Spindle taper (mm) | metric No.80 | ||||
| Spindle nose type | -- | ||||
| Main motor power (kw) | 11 | ||||
| Step and Range of spindle speed (r/min) | forward | 18 Steps:14-750 | |||
| reversal | 9 Steps:25-1000 | ||||
| Longitudinal feed (grades/mm) | 26/0.07-1.33 | ||||
| Cross feed (grades/mm) | 26/0.02-0.45 | ||||
| Metric thread pitch (grades/mm) | 52/1-224 | ||||
| Inch thread pitch (grades/inch) | 40/2-28 | ||||
| Module thread pitch (grades/mm) | 41/0.25-56 | ||||
| Diametral pitch thread (grades/mm) | 38/1-112 | ||||
| Lead screw pitch | 1/2(inch) | ||||
| Carriage rapid traverse speed (mm/min) | 4000 | ||||
| Cross slide dial movement range (mm/scale) | 0.05 | ||||
| Distance between spindle center and tool post (mm) | 32.5 | ||||
| Size of tool section (mm) | 30x30 | ||||
| Max. rotation angle of tool post ( °) | ±60° | ||||
| Tool post travel (mm) | 200 | ||||
| Cross slide travel (mm) | 390 | 430 | 450 | ||
| Dia. and Taper of tail-stock quill (mm/mores) | 100/m5# | ||||
| Tail-stock quill travel (mm) | 250 | ||||
| Tail-stock cross travel (mm) | ±15 | ||||
| Overall dimensions(L×W×H) (mm) | 2840/3090/3590/4090/5090/6090/7090/8090/9100/10100/11100/12100×1257×1347 | ||||
| Net weight (kg) | 3600/3700/3900/4300/4700/5600/6200/7200/8200/9200/10200/11200 | ||||
| Chuck | 325MM 3-jaw chuck (Machine will be equipped with center rest and follower rest of 150MM when the length of work-piece over 3000mm.) | ||||
