CKY61100Q CNC Lathe Machine with Cheap Price and Good Quality
- 1000 Set / Sets per Month
- Qingdao China
- T/T Credit Card
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 1000mm | Place of Origin: | Shandong, China |
Brand Name: | YIMAKE | Model Number: | CKY61100Q | Voltage: | Customer's Requirement |
Power(W): | 11/15kw | Dimension(L*W*H): | (3990/4490/5490)x1710x1840mm | Weight: | 5500/5800/6200kgs |
Certification: | ISO9001:ISO14001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

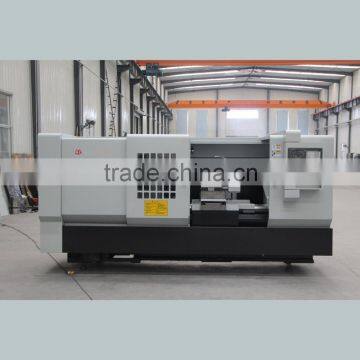

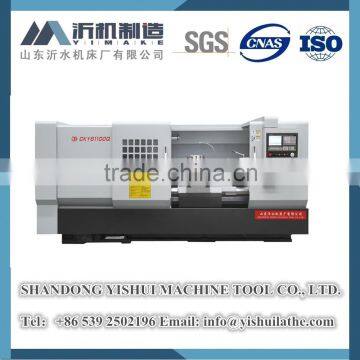

CKY6180C Good Quality CNC Lathe Machine
YIMAKE CKY6180C CNC horizontal lathe machine tool is universal standard automatic machining equipment for metal processing,capable of semi finish machining and finish machining of machinery components and parts,with the main characters such as reliable structure,easy operating and economical for using.
This series lathe machine mainly used for turning internal and external cylindrical surface,conical surface and other rotating surfaces,and turning internal and external pipe threads such as metric,inch,module,DP threads etc.
Main Features:
Integral machine bed adopts high strength iron to realize high rigity and precision;

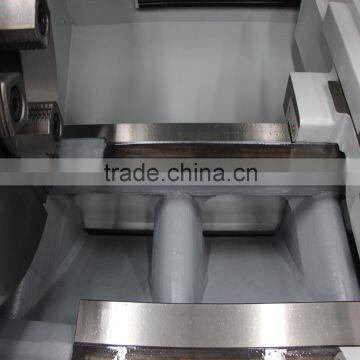

Ultrasonic frequency quenched guide-way are hard enough for good wear-resistance;
Carriage and guide way contact surface pasted with Turcite B to maintain long-term accuracy.
Detailed Specifications:
Standard Accessories:

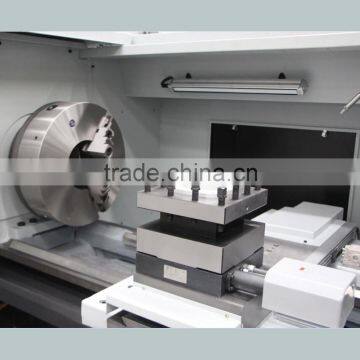

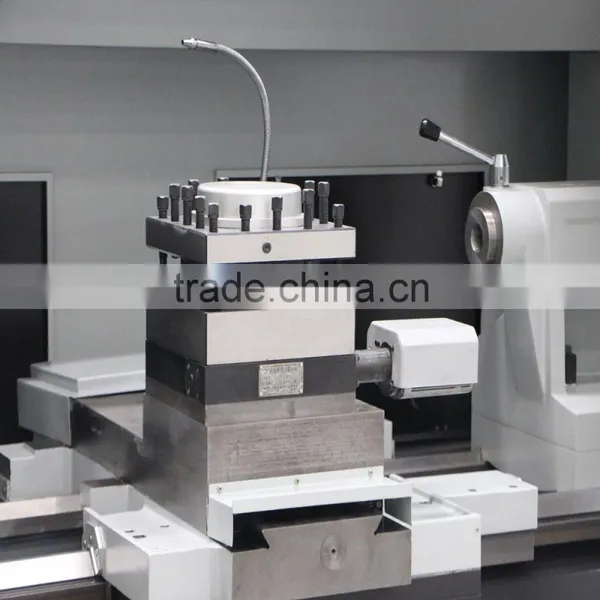

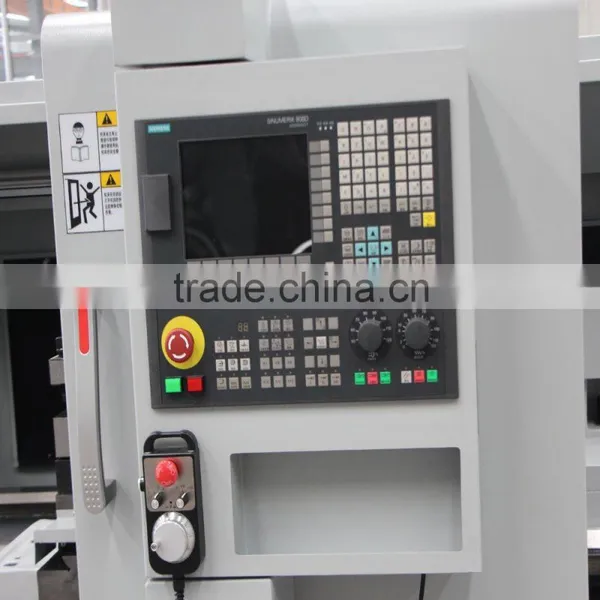

Fanuc CNC system,NC turret 4 position,Coolant system,Lubrication system,Lighting system,
Mobile hand-wheel,Semi-shield,Manual tailstock,Chuck,Rear support bracket, Pad iron etc.
Optional Accessories:
CNC system(Simens,Fagor,GSK,KND),Turret(Servo,hydraulic,power),Chip conveyor,Air conditioner,Full-shield,Hydraulic tailstock,Chuck,Center rest,Follower rest,Signal light,Grinding attachment etc.
Customizing support:
Painting color,headstock height,lathe bed length etc.
Standard package:
Plywood packing box with steel pallet and iron framework.
Contact Us
- Shandong Yishui Machine Tool Co., Ltd.
- Contact nameDavid Lee
- Phone86-539-2502196
- AddressIntersection of 1st East Ring Rd. and 1st South Ring Rd., Yishui, Shandong, China (500 meters to the south of Yishui Bus Station) Linyi,Shandong
