250 Micron Stainless Steel Wire Mesh/ Stainless Steel Decorative Wire Mesh

250 Micron Stainless Steel Wire Mesh/ Stainless Steel Decorative Wire Mesh thumbnail-1
250 Micron Stainless Steel Wire Mesh/ Stainless Steel Decorative Wire Mesh thumbnail-2
250 Micron Stainless Steel Wire Mesh/ Stainless Steel Decorative Wire Mesh thumbnail-3
250 Micron Stainless Steel Wire Mesh/ Stainless Steel Decorative Wire Mesh thumbnail-4
250 Micron Stainless Steel Wire Mesh/ Stainless Steel Decorative Wire Mesh thumbnail-5
250 Micron Stainless Steel Wire Mesh/ Stainless Steel Decorative Wire Mesh thumbnail-6
250 Micron Stainless Steel Wire Mesh/ Stainless Steel Decorative Wire Mesh photo-1
250 Micron Stainless Steel Wire Mesh/ Stainless Steel Decorative Wire Mesh photo-2
250 Micron Stainless Steel Wire Mesh/ Stainless Steel Decorative Wire Mesh photo-3
250 Micron Stainless Steel Wire Mesh/ Stainless Steel Decorative Wire Mesh photo-4
250 Micron Stainless Steel Wire Mesh/ Stainless Steel Decorative Wire Mesh photo-5
250 Micron Stainless Steel Wire Mesh/ Stainless Steel Decorative Wire Mesh photo-6
US$ 20.36 - 50.96 MOQ: 1 Roll
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Material:
Other, Stainless Steel Wire, 302, 304,304L,316,316L
Type:
Wire Cloth
Contact Supplier Request Quote Chat Now
Shijiazhuang Qunkun Metal Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Material Other, Stainless Steel Wire, 302, 304,304L,316,316L
Type Wire Cloth
Application Woven Wire Mesh
Weave Style Plain Weave
Wire Diameter 0.03mm~5.0mm
Technique Woven
Model Number QUNKUN---SSW
Brand Name QUNKUN



Product Description

     Stainless steel wire mesh

Shijiazhuang Qunkun Metal Products Co.,Ltd offer a full line of Stainless Steel Mesh and woven cloth products to meet the requirements for a wide range of ucing clients' costs and increassing production effciencies.Our affiliate weaving and mills manufacture wire cloth and mesh to meet clients' internal specifications,ISO,ASTM and DIN standards.

1. Stainless steel wire mesh Raw Materials

 High quality stainless steel wire 201,202,304,304L, 316,316L, 321, 430, etc.

2. Stainless steel wire mesh performance

Resistant to acid, alkali, temperature, abrasion etc

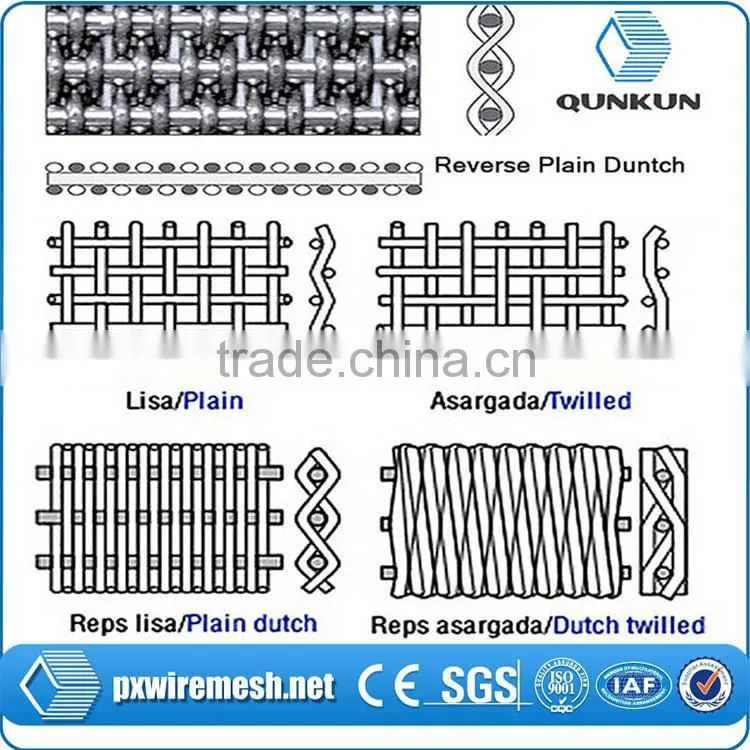

3.The Woven Style of stainless steel wire mesh

 250 micron stainless steel wire mesh/ stainless steel decorative wire mesh

4.The Classification and specifications of stainless steel wire mesh



• Plain and Twill Weave wire mesh





Qunkun Wire Mesh can supply a wide range of this kind of wire mesh as follows,



Mesh/Inch Wire diameter (Inch) Wire diameter(MM) Aperture(Inch) Aperture(MM) Open Area Weight (LB) /100 Square Foot
1*1 0.080 2.03 0.920 23.37 84.6 41.1
2*2 0.063 1.60 0.437 11.10 76.4 51.2
3*3 0.054 1.37 0.279 7.09 70.1 56.7
4*4 0.063 1.60 0.187 4.75 56.0 104.8
4*4 0.047 1.19 0.203 5.16 65.9 57.6
5*5 0.041 1.04 0.159 4.04 63.2 54.9
6*6 0.035 0.89 0.132 3.35 62.7 48.1
8*8 0.028 0.71 0.097 2.46 60.2 41.1
10*10 0.025 0.64 0.075 1.91 56.3 41.2
10*10 0.020 0.51 0.080 2.03 64.0 26.1
12*12 0.023 0.584 0.060 1.52 51.8 42.2
12*12 0.020 0.508 0.063 1.60 57.2 31.6
14*14 0.023 0.584 0.048 1.22 45.2 49.8
14*14 0.020 0.508 0.051 1.30 51.0 37.2
16*16 0.018 0.457 0.0045 1.13 50.7 34.5
18*18 0.017 0.432 0.0386 0.98 48.3 34.8
20*20 0.020 0.508 0.0300 0.76 36.0 55.2
20*20 0.016 0.406 0.0340 0.86 46.2 34.4
24*24 0.014 0.356 0.0277 0.70 44.2 31.8
30*30 0.013 0.330 0.0203 0.52 37.1 34.8
30*30 0.012 0.305 0.0213 0.54 40.8 29.4
30*30 0.009 0.229 0.0243 0.62 53.1 16.1
35*35 0.011 0.279 0.0176 0.45 37.9 29.0
40*40 0.010 0.254 0.0150 0.38 36.0 27.6
50*50 0.009 0.229 0.0110 0.28 30.3 28.4
50*50 0.008 0.203 0.0120 0.31 36.0 22.1
60*60 0.0075 0.191 0.0092 0.23 30.5 23.7
60*60 0.007 0.178 0.0097 0.25 33.9 20.4
70*70 0.0065 0.165 0.0078 0.20 29.8 20.8
80*80 0.0065 0.165 0.0060 0.15 23.0 23.2
80*80 0.0055 0.140 0.0070 0.18 31.4 16.9
90*90 0.005 0.127 0.0061 0.16 30.1 15.8
100*100 0.0045 0.114 0.0055 0.14 30.3 14.2
100*100 0.004 0.102 0.0060 0.15 36.0 11.0
100*100 0.0035 0.089 0.0065 0.17 42.3 8.3
110*110 0.0040 0.1016 0.0051 0.1295 30.7 12.4
120*120 0.0037 0.0940 0.0064 0.1168 30.7 11.6
150*150 0.0026 0.0660 0.0041 0.1041 37.4 7.1
160*160 0.0025 0.0635 0.0038 0.0965 36.4 5.94
180*180 0.0023 0.0584 0.0033 0.0838 34.7 6.7
200*200 0.0021 0.0533 0.0029 0.0737 33.6 6.2
250*250 0.0016 0.0406 0.0024 0.0610 36.0 4.4
270*270 0.0016 0.0406 0.0021 0.0533 32.2 4.7
300*300 0.0051 0.0381 0.0018 0.0457 29.7 3.04
325*325 0.0014 0.0356 0.0017 0.0432 30.0 4.40
400*400 0.0010 0.0254 0.0015 0.0370 36.0 3.3
500*500 0.0010 0.0254 0.0010 0.0254 25.0 3.8
635*635 0.0008 0.0203 0.0008 0.0203 25.0 2.63



 • Plain Dutch and Twill Dutch Weave stainless steel wire mesh



Plain Dutch Weave Wire Mesh

Mesh/Inch Wire diameter  Absolute Filtration Finess  µm Nominal Filtration Finess  µm
8*85 0.014''*0.0126'' 318-340 250-255
12*64 0.024''*0.0165'' 270-280 200-205
14*88 0.020''*0.013'' 225-245 150-155
20*150 0.0098''*0.007'' 155-165 100-105
24*100 0.015''*0.010'' 115-125 80-85
30*150 0.009''*0.007'' 95-100 65-70
40*200 0.007''*0.0055'' 65-70 55-60
50*250 0.0055''*0.0045'' 55-60 40-45
80*400 0.0049''*0.0028'' 43-48 35-40

Twill Duntch Weave Wire Mesh

Mesh/Inch Wire diameter Absolute Filtration Finess  µm Nominal Filtration Finess  µm
20*250 0.0098''*0.0079'' 110-120 98-105
30*360 0.0098''*0.0060'' 90-100 80-84
40*560 0.0070''*0.0040'' 70-75 47-52
120*400 0.0040''*0.0025'' 50-55 37-43
120*160 0.0040''*0.0025'' 40-45 28-32
80*700 0.0040''*0.0030'' 35-40 24-26
200*600 0.0024''*0.0018'' 28-32 19-21
165*800 0.0028''*0.0020'' 24-26 14-16
165*1400 0.0028''*0.0016'' 16-18 9-11
200*1400 0.0028''*0.0016'' 12-14 5-6
250*1400 0.0022''*0.0016'' 11-12 3-4
325*1400 0.0015''*0.0010'' 8-9 2-3



• Reverse Plain Dutch Weave & Twilled Reverse Dutch Weave



  Standard Specifications:

 •48x10 mesh RPD 400 nominal micron

 •72x15 mesh TRD 250 nominal micron

 •132x17 mesh TRD 200 nominal micron

 •152x30 mesh TRD 115 nominal micron

 •260x40 mesh TRD 75 nominal micron

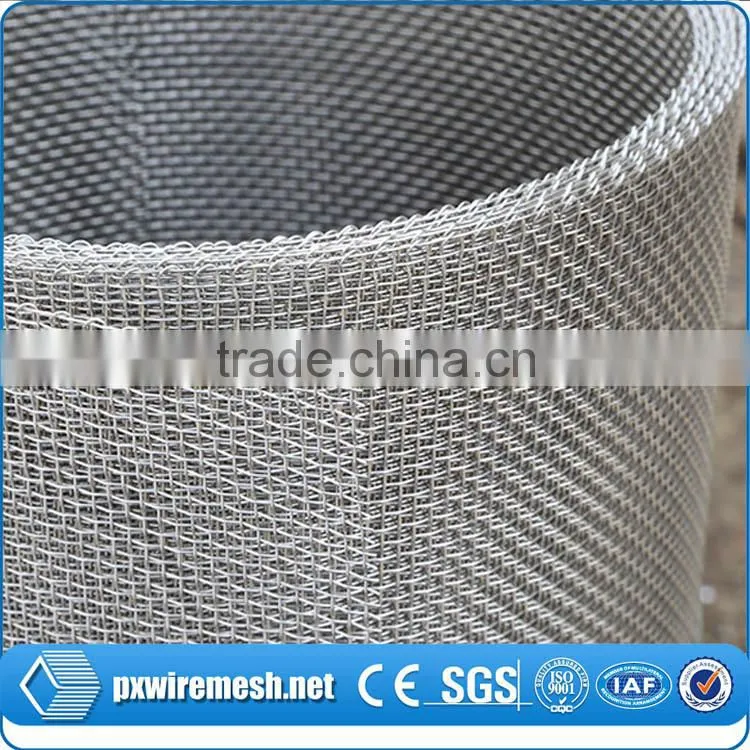

5. Stainless steel wire mesh product show



250 micron stainless steel wire mesh/ stainless steel decorative wire mesh

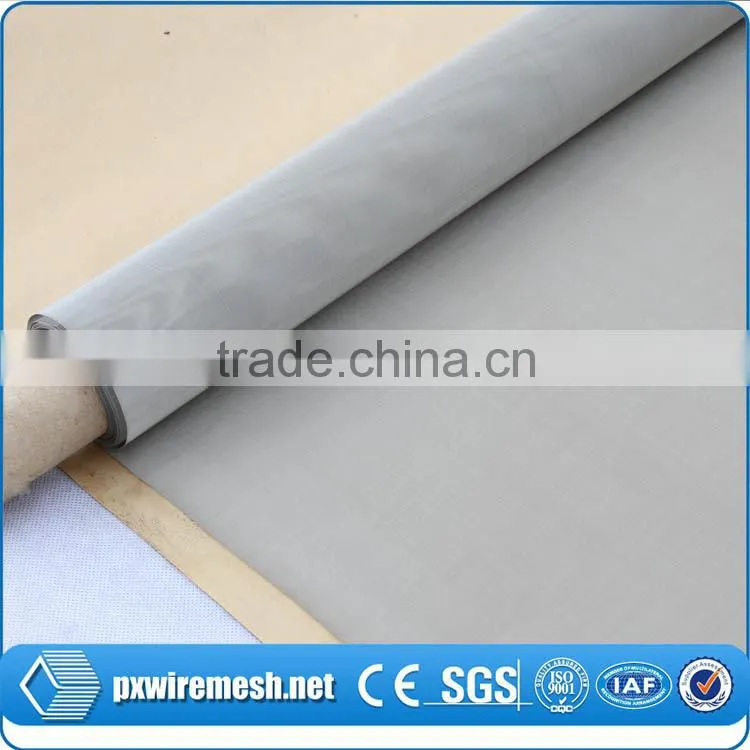

   close selvage of stainless steel wire mesh

250 micron stainless steel wire mesh/ stainless steel decorative wire mesh

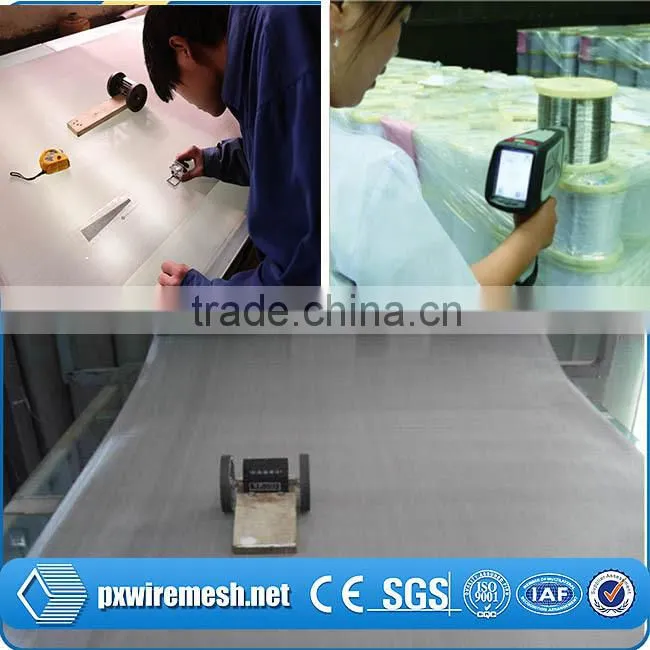

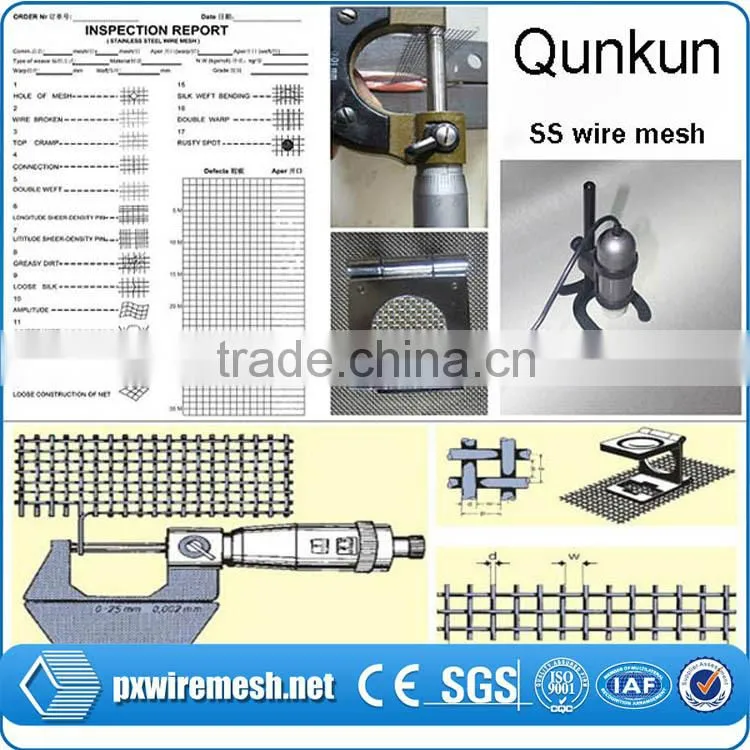

 Inspection of stainless steel wire and mesh

250 micron stainless steel wire mesh/ stainless steel decorative wire mesh250 micron stainless steel wire mesh/ stainless steel decorative wire mesh

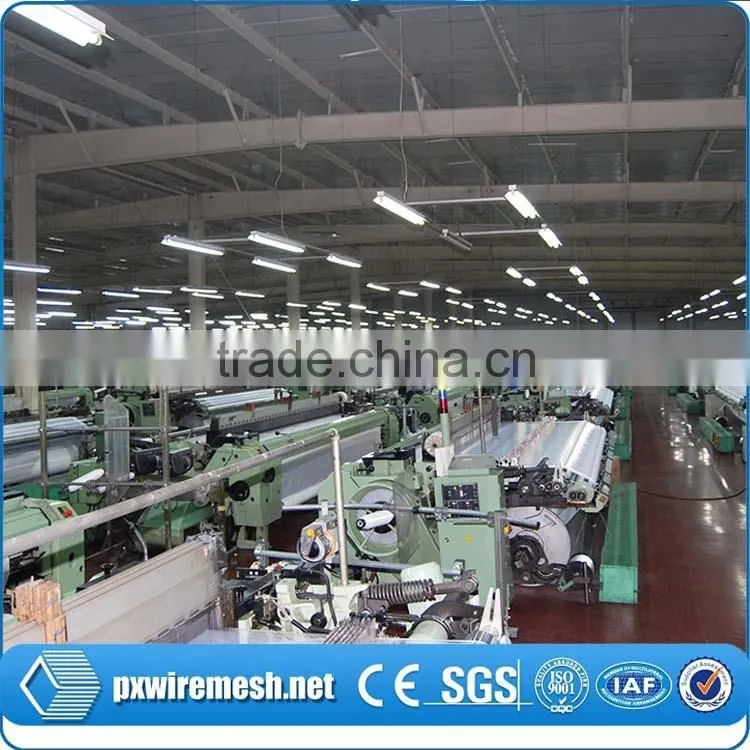

stainless steel wire mesh workshop

250 micron stainless steel wire mesh/ stainless steel decorative wire mesh





6. Stainless steel wire mesh Application

 Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.

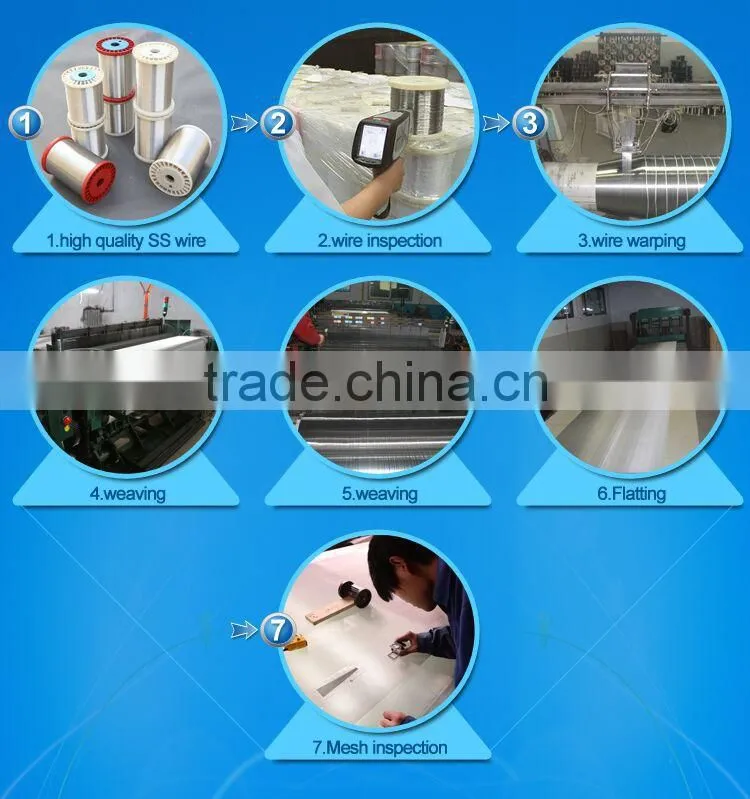

7. Stainless steel wire mesh Production process

 250 micron stainless steel wire mesh/ stainless steel decorative wire mesh



Packaging & Shipping

  8. Stainless steel wire mesh packing details

250 micron stainless steel wire mesh/ stainless steel decorative wire mesh

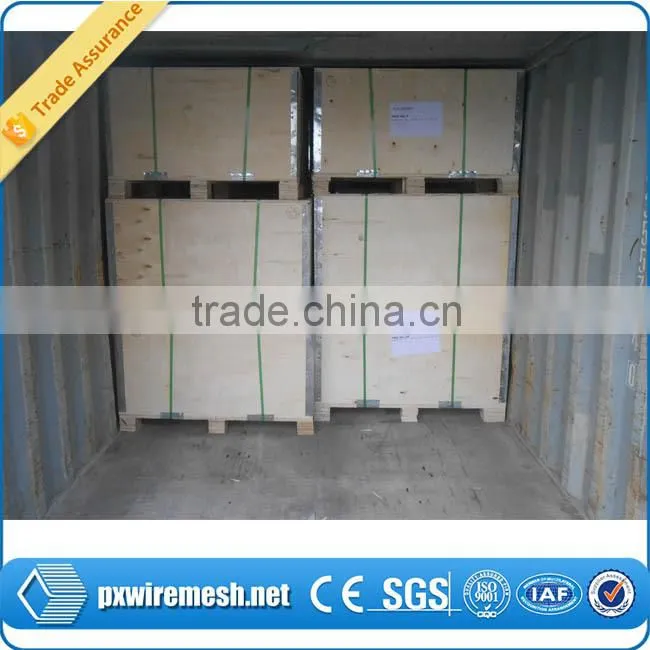

9.Loading into container of stainless steel wire mesh

250 micron stainless steel wire mesh/ stainless steel decorative wire mesh





Advantages

250 micron stainless steel wire mesh/ stainless steel decorative wire mesh





FAQ

250 micron stainless steel wire mesh/ stainless steel decorative wire mesh



Company Information

250 micron stainless steel wire mesh/ stainless steel decorative wire meshHebei Qunkun Metal Product Co., Ltd is a premier manufacturer and supplier of wire mesh products located in Anping Town, the famous Wire Mesh Land of China. We have engaged in wire drawing, wire mesh weaving and metal fabricating for about ten years and have accumulated rich experiences in this field.

Our Products:
Qunkun offers the following products with complete specifications and good quality: Hexagonal wire netting, gabions, chain link fence, wire mesh fences, welded wire mesh, welded wire panels, expanded metal mesh, stainless steel wire mesh, Dutch woven wire cloth, galvanized square wire mesh, galvanized wire, insect screen, barbecue grill netting, razor wire, barbed wire and fencing accessories. Our products are widely used in petroleum, chemical, construction, textile, medicine, aviation, aerospace and other industries.

Qunkun has the expertise, the technical force, the advanced processing and inspection equipment, and the experience to establish good business relationship with world customers. Qunkun has adopted modern management system to ensure product quality and reasonable price.

Most of our wire mesh products are for export to Europe, the United States, the Middle East, Southeast Asia, and many other countries and regions. We can offer quality products at good price and timely delivery. Welcome to contact us.



Certifications

250 micron stainless steel wire mesh/ stainless steel decorative wire mesh
