2016 hot sales stainless steel wire mesh screen
- 100 Roll / Rolls per Month
- Tianjin China
- T/T L/C D/P D/A Credit Card PayPal
- Factory BBQ mesh Perforated crimped wire mesh for barbecue with best price and quality
- Hot Selling!High Quality Cheap Chain Link Fence top barbed wire/cyclone fence
- Alibaba Verified China Factory Popular Perimeter fence/Chain Link Fence top barbed wire/cyclone fence
- China Hot Sale High Quality Perimeter fence/Chain Link Fence top barbed wire/cyclone fence
- Alibaba.com Golden Supplier High Quality Perimeter fence/Chain Link Fence top barbed wire/cyclone fence
- Alibaba Made In China Anping Perimeter fence/Chain Link Fence top barbed wire/cyclone fence
Product Details
Place of Origin: | Hebei, China | Material: | Other, Stainless Steel Wire, 302, 304,304L,316,316L | Type: | Wire Cloth |
Application: | Woven Wire Mesh | Weave Style: | Plain Weave | Wire Diameter: | 0.03mm~5.0mm |
Technique: | Woven | Model Number: | QUNKUN---SSW | Brand Name: | QUNKUN |
Product Description
Stainless steel wire mesh
Shijiazhuang Qunkun Metal Products Co.,Ltd offer a full line of Stainless Steel Mesh and woven cloth products to meet the requirements for a wide range of ucing clients' costs and increassing production effciencies.Our affiliate weaving and mills manufacture wire cloth and mesh to meet clients' internal specifications,ISO,ASTM and DIN standards.
1. Stainless steel wire mesh Raw Materials
High quality stainless steel wire 201,202,304,304L, 316,316L, 321, 430, etc.
2. Stainless steel wire mesh performance
Resistant to acid, alkali, temperature, abrasion etc
3.The Woven Style of stainless steel wire mesh
4.The Classification and specifications of stainless steel wire mesh
• Plain and Twill Weave wire mesh
Qunkun Wire Mesh can supply a wide range of this kind of wire mesh as follows,
Mesh/Inch | Wire diameter (Inch) | Wire diameter(MM) | Aperture(Inch) | Aperture(MM) | Open Area | Weight (LB) /100 Square Foot |
1*1 | 0.080 | 2.03 | 0.920 | 23.37 | 84.6 | 41.1 |
2*2 | 0.063 | 1.60 | 0.437 | 11.10 | 76.4 | 51.2 |
3*3 | 0.054 | 1.37 | 0.279 | 7.09 | 70.1 | 56.7 |
4*4 | 0.063 | 1.60 | 0.187 | 4.75 | 56.0 | 104.8 |
4*4 | 0.047 | 1.19 | 0.203 | 5.16 | 65.9 | 57.6 |
5*5 | 0.041 | 1.04 | 0.159 | 4.04 | 63.2 | 54.9 |
6*6 | 0.035 | 0.89 | 0.132 | 3.35 | 62.7 | 48.1 |
8*8 | 0.028 | 0.71 | 0.097 | 2.46 | 60.2 | 41.1 |
10*10 | 0.025 | 0.64 | 0.075 | 1.91 | 56.3 | 41.2 |
10*10 | 0.020 | 0.51 | 0.080 | 2.03 | 64.0 | 26.1 |
12*12 | 0.023 | 0.584 | 0.060 | 1.52 | 51.8 | 42.2 |
12*12 | 0.020 | 0.508 | 0.063 | 1.60 | 57.2 | 31.6 |
14*14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 | 49.8 |
14*14 | 0.020 | 0.508 | 0.051 | 1.30 | 51.0 | 37.2 |
16*16 | 0.018 | 0.457 | 0.0045 | 1.13 | 50.7 | 34.5 |
18*18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3 | 34.8 |
20*20 | 0.020 | 0.508 | 0.0300 | 0.76 | 36.0 | 55.2 |
20*20 | 0.016 | 0.406 | 0.0340 | 0.86 | 46.2 | 34.4 |
24*24 | 0.014 | 0.356 | 0.0277 | 0.70 | 44.2 | 31.8 |
30*30 | 0.013 | 0.330 | 0.0203 | 0.52 | 37.1 | 34.8 |
30*30 | 0.012 | 0.305 | 0.0213 | 0.54 | 40.8 | 29.4 |
30*30 | 0.009 | 0.229 | 0.0243 | 0.62 | 53.1 | 16.1 |
35*35 | 0.011 | 0.279 | 0.0176 | 0.45 | 37.9 | 29.0 |
40*40 | 0.010 | 0.254 | 0.0150 | 0.38 | 36.0 | 27.6 |
50*50 | 0.009 | 0.229 | 0.0110 | 0.28 | 30.3 | 28.4 |
50*50 | 0.008 | 0.203 | 0.0120 | 0.31 | 36.0 | 22.1 |
60*60 | 0.0075 | 0.191 | 0.0092 | 0.23 | 30.5 | 23.7 |
60*60 | 0.007 | 0.178 | 0.0097 | 0.25 | 33.9 | 20.4 |
70*70 | 0.0065 | 0.165 | 0.0078 | 0.20 | 29.8 | 20.8 |
80*80 | 0.0065 | 0.165 | 0.0060 | 0.15 | 23.0 | 23.2 |
80*80 | 0.0055 | 0.140 | 0.0070 | 0.18 | 31.4 | 16.9 |
90*90 | 0.005 | 0.127 | 0.0061 | 0.16 | 30.1 | 15.8 |
100*100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 | 14.2 |
100*100 | 0.004 | 0.102 | 0.0060 | 0.15 | 36.0 | 11.0 |
100*100 | 0.0035 | 0.089 | 0.0065 | 0.17 | 42.3 | 8.3 |
110*110 | 0.0040 | 0.1016 | 0.0051 | 0.1295 | 30.7 | 12.4 |
120*120 | 0.0037 | 0.0940 | 0.0064 | 0.1168 | 30.7 | 11.6 |
150*150 | 0.0026 | 0.0660 | 0.0041 | 0.1041 | 37.4 | 7.1 |
160*160 | 0.0025 | 0.0635 | 0.0038 | 0.0965 | 36.4 | 5.94 |
180*180 | 0.0023 | 0.0584 | 0.0033 | 0.0838 | 34.7 | 6.7 |
200*200 | 0.0021 | 0.0533 | 0.0029 | 0.0737 | 33.6 | 6.2 |
250*250 | 0.0016 | 0.0406 | 0.0024 | 0.0610 | 36.0 | 4.4 |
270*270 | 0.0016 | 0.0406 | 0.0021 | 0.0533 | 32.2 | 4.7 |
300*300 | 0.0051 | 0.0381 | 0.0018 | 0.0457 | 29.7 | 3.04 |
325*325 | 0.0014 | 0.0356 | 0.0017 | 0.0432 | 30.0 | 4.40 |
400*400 | 0.0010 | 0.0254 | 0.0015 | 0.0370 | 36.0 | 3.3 |
500*500 | 0.0010 | 0.0254 | 0.0010 | 0.0254 | 25.0 | 3.8 |
635*635 | 0.0008 | 0.0203 | 0.0008 | 0.0203 | 25.0 | 2.63 |
• Plain Dutch and Twill Dutch Weave stainless steel wire mesh
Plain Dutch Weave Wire Mesh
Mesh/Inch | Wire diameter | Absolute Filtration Finess µm | Nominal Filtration Finess µm |
8*85 | 0.014''*0.0126'' | 318-340 | 250-255 |
12*64 | 0.024''*0.0165'' | 270-280 | 200-205 |
14*88 | 0.020''*0.013'' | 225-245 | 150-155 |
20*150 | 0.0098''*0.007'' | 155-165 | 100-105 |
24*100 | 0.015''*0.010'' | 115-125 | 80-85 |
30*150 | 0.009''*0.007'' | 95-100 | 65-70 |
40*200 | 0.007''*0.0055'' | 65-70 | 55-60 |
50*250 | 0.0055''*0.0045'' | 55-60 | 40-45 |
80*400 | 0.0049''*0.0028'' | 43-48 | 35-40 |
Twill Duntch Weave Wire Mesh
Mesh/Inch | Wire diameter | Absolute Filtration Finess µm | Nominal Filtration Finess µm |
20*250 | 0.0098''*0.0079'' | 110-120 | 98-105 |
30*360 | 0.0098''*0.0060'' | 90-100 | 80-84 |
40*560 | 0.0070''*0.0040'' | 70-75 | 47-52 |
120*400 | 0.0040''*0.0025'' | 50-55 | 37-43 |
120*160 | 0.0040''*0.0025'' | 40-45 | 28-32 |
80*700 | 0.0040''*0.0030'' | 35-40 | 24-26 |
200*600 | 0.0024''*0.0018'' | 28-32 | 19-21 |
165*800 | 0.0028''*0.0020'' | 24-26 | 14-16 |
165*1400 | 0.0028''*0.0016'' | 16-18 | 9-11 |
200*1400 | 0.0028''*0.0016'' | 12-14 | 5-6 |
250*1400 | 0.0022''*0.0016'' | 11-12 | 3-4 |
325*1400 | 0.0015''*0.0010'' | 8-9 | 2-3 |
• Reverse Plain Dutch Weave & Twilled Reverse Dutch Weave
Standard Specifications:
•48x10 mesh RPD 400 nominal micron
•72x15 mesh TRD 250 nominal micron
•132x17 mesh TRD 200 nominal micron
•152x30 mesh TRD 115 nominal micron
•260x40 mesh TRD 75 nominal micron
5. Stainless steel wire mesh product show
close selvage of stainless steel wire mesh
Inspection of stainless steel wire and mesh
stainless steel wire mesh workshop
6. Stainless steel wire mesh Application
Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.
7. Stainless steel wire mesh Production process

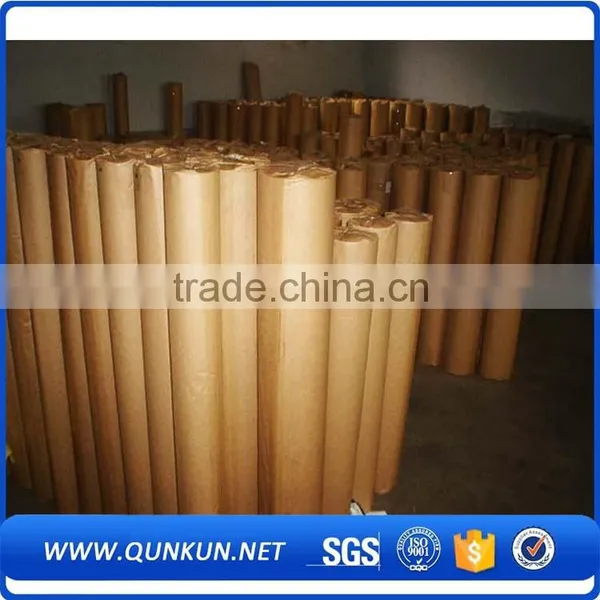

8. Stainless steel wire mesh packing details
9.Loading into container of stainless steel wire mesh
Hebei Qunkun Metal Product Co., Ltd is a premier manufacturer and supplier of wire mesh products located in Anping Town, the famous Wire Mesh Land of China. We have engaged in wire drawing, wire mesh weaving and metal fabricating for about ten years and have accumulated rich experiences in this field.
Our Products:
Qunkun offers the following products with complete specifications and good quality: Hexagonal wire netting, gabions, chain link fence, wire mesh fences, welded wire mesh, welded wire panels, expanded metal mesh, stainless steel wire mesh, Dutch woven wire cloth, galvanized square wire mesh, galvanized wire, insect screen, barbecue grill netting, razor wire, barbed wire and fencing accessories. Our products are widely used in petroleum, chemical, construction, textile, medicine, aviation, aerospace and other industries.
Qunkun has the expertise, the technical force, the advanced processing and inspection equipment, and the experience to establish good business relationship with world customers. Qunkun has adopted modern management system to ensure product quality and reasonable price.
Most of our wire mesh products are for export to Europe, the United States, the Middle East, Southeast Asia, and many other countries and regions. We can offer quality products at good price and timely delivery. Welcome to contact us.
