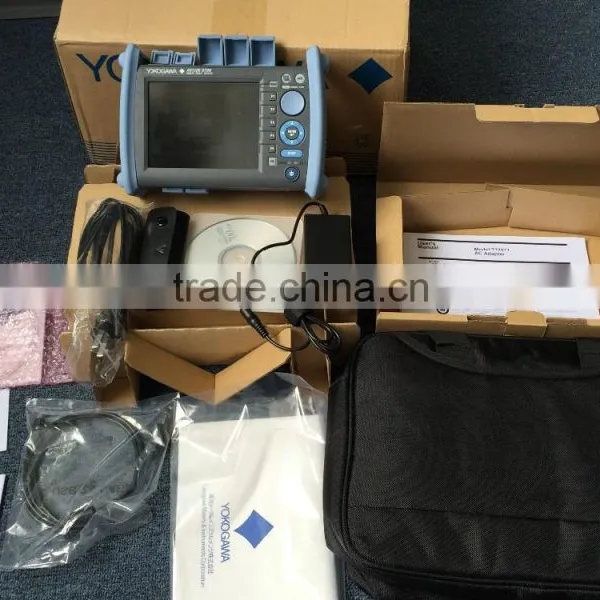

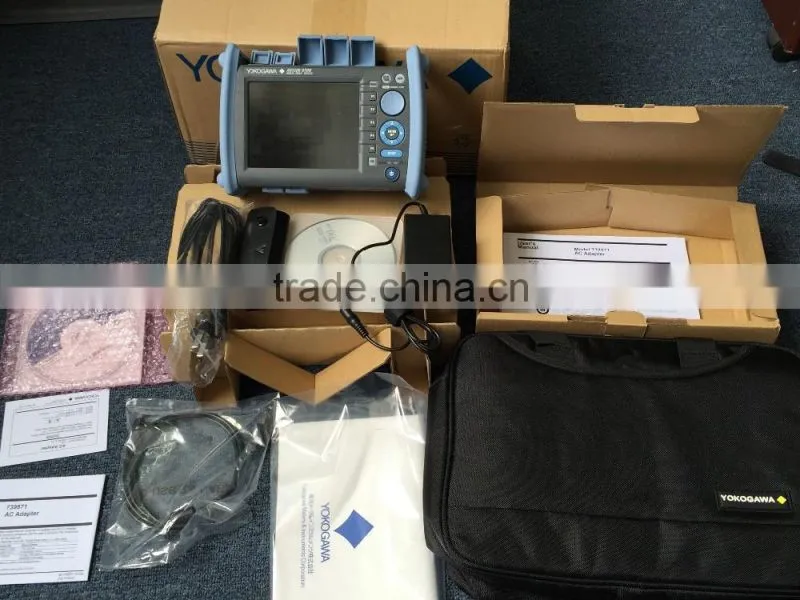

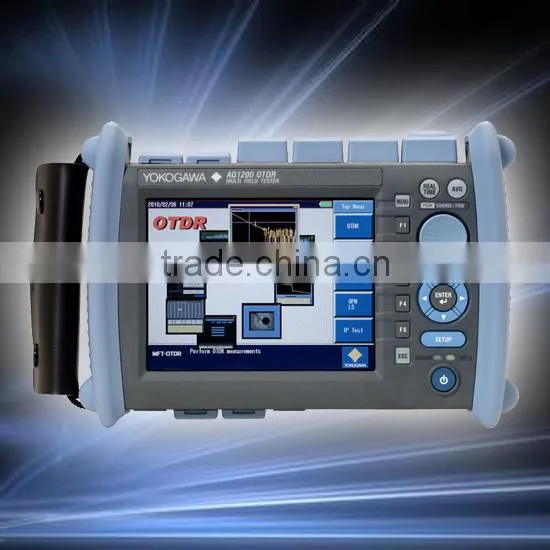

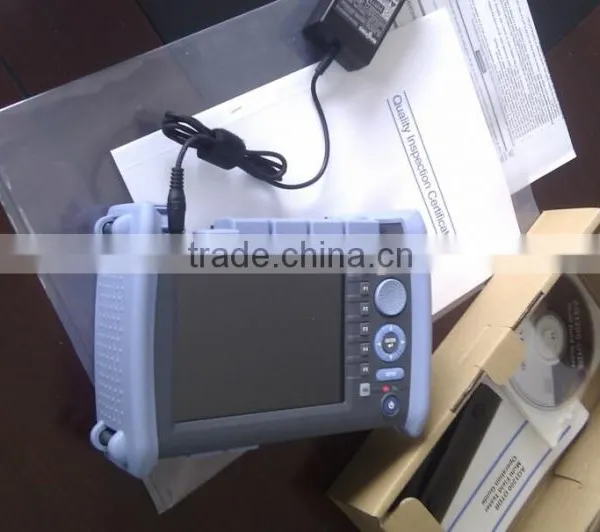

YOKOGAWA AQ1200A OTDR Optical Time Domain Reflectometer

Name: YOKOGAWA AQ1200A OTDR Optical Time Domain Reflectometer
Brand: YOKOGAWA, Yokogawa
Price: USD $3,300 - 3,600 / Unit

FOB Price

USD $3,300 - $3,600 / Unit

10 Units(Min.Order)

Supply Ability 10 Unit / Units per Month
Port HongKong
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Japan

Brand Name:

YOKOGAWA, Yokogawa

Model Number:

AQ1200, AQ1200

Packaging Details

standard packing

Product Description

Optical Time Domain Reflectometer YOKOGAWA AQ1200A OTDR PRICE

Contact information

Mobile: 0086-13728095480 Jim

Tel:+86-755-36934393

Fax: 0086-755-33503470

Website: www..hk

Skype: HONSERV

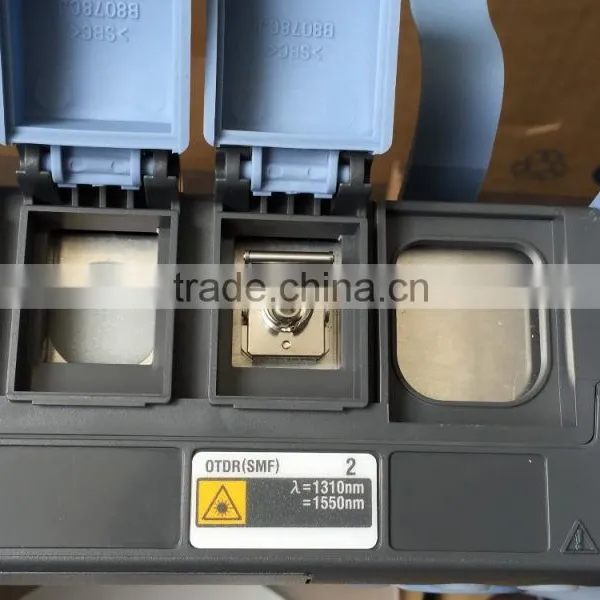

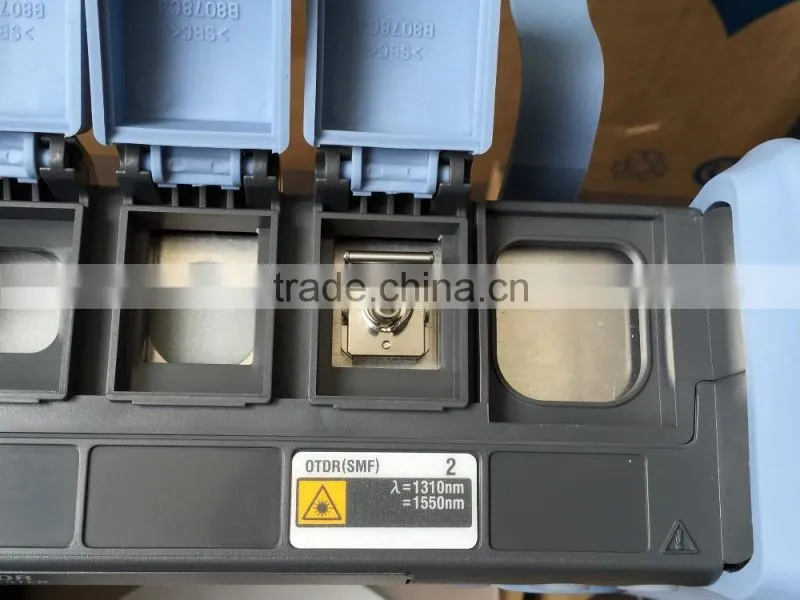

YOKOGAWA AQ1200A – is a single port model with the two most common wavelengths of 1310 nm and 1550 nm. In combination with the PN option it can display optical splitters in PON networks with division factor up to 64.

ANALYSIS TOOLS

Single Trace Analysis
- Nonuniformities analysis
- Auto pass/fail analysis
- Setting the new origin
- Nonuniformities editing
- Measurement by the two markers
- Measurement by the four markers
- Trace part analysis
Multi Trace Analysis
- Simultaneous display of multiple traces
- Two-way trace analysis
- Differential trace analysis

MEASUREMENTS

Distance: eight digital bits displayed with minimal readout resolution 0.01 m.
Attenuation: five digital bits displayed with minimal readout resolution of 0.001 dB.
Return loss: common optical return loss (ORL), as well as total reflection between any two points on the trace.
Measurement modes:
- Full auto
- Manual (expert)
- Several wavelengths
- PON measurement mode

TECHNICAL SPECIFICATIONS

Horizontal Axis Parameters
Sampling resolution	5 cm, 10 cm, 20 cm, 50 cm, 1 m, 2 m, 4 m, 8 m, 16 m, 32 m
Readout resolution (Min.)	1 cm
Number of sampled data	Up to 128,000 points (Firmware Rev2.01 or later)
Unit of distance	km, kf or miles
Distance measurement accuracy	±1 m + Measurement distance × 2 × 10 ^-5 ± sampling resolution
Vertical Axis Parameters
Vertical axis scale	0.2 dB/div, 0.5 dB/div, 1 dB/div, 2 dB/div, 5 dB/div, 7.5 dB/div
Readout resolution (Min.)	0.001 dB
Loss measurement accuracy	±0.05 dB/dB (When the measuring loss is 1 dB or less, the accuracy is within ±0.05 dB.)
System Parameters
Memory capacity	1000 measured waveforms and measurement conditions

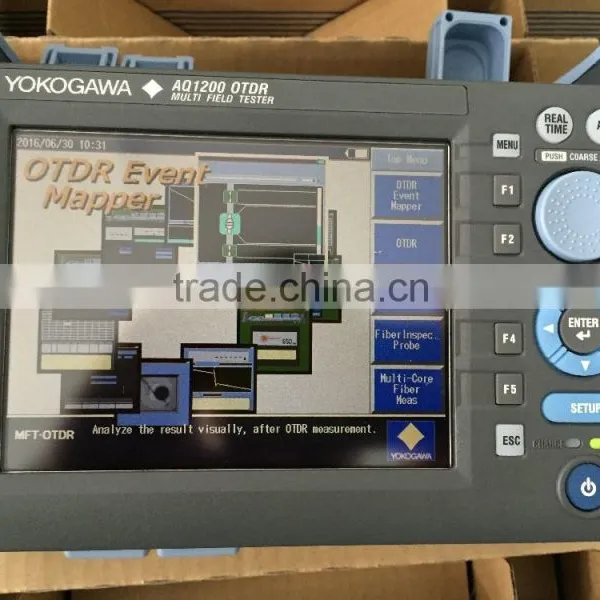

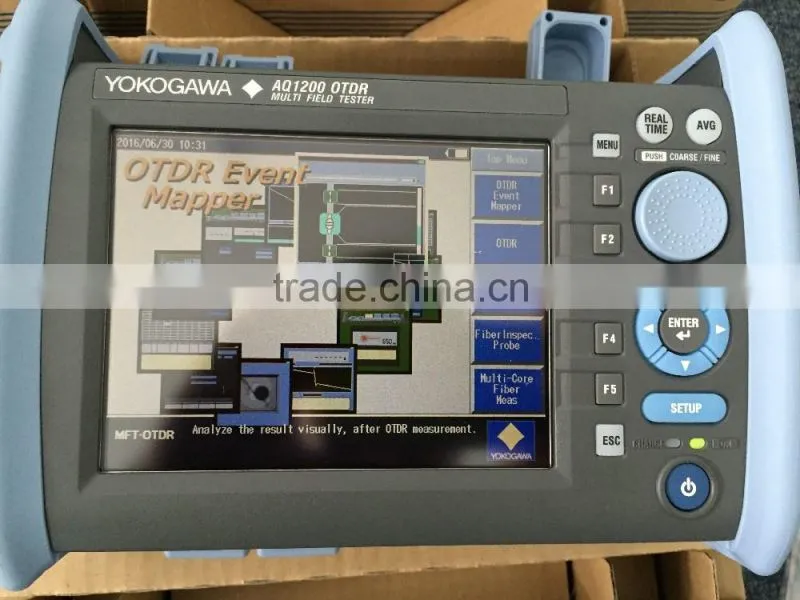

Display	5.7 inch color TFT LCD; 640 (horizontal) × 480 (vertical) pixels
External interfaces	USB 1.1 Type A: For external memory, external printer, and fiber inspection probe USB 1.1 Type B (mini): For connecting to an external PC for remote control or access to the OTDR's internal memory
File Formats	Read: SOR, SET Write: SOR (Telcordia), SET, CSV, BMP, JPG, PNG
General Specifications
Environmental conditions	Operating temperature: 0 to 45°C (0 to 40°C when AC adapter is being used); (0 to 35°C when battery is being charged) Humidity: 20 to 85% RH (no condensation)
Storage conditions	Storage temperature: -20 to 60°C Humidity: 20 to 85% RH (no condensation)
Power requirements	100 to 240 VAC, 50/60 Hz
Battery pack	Run time: 6 hours (measurement is performed for 30 seconds every 3 minutes, with no options installed, in power save mode (LCD brightness: Power save, Screen saving: ON) Recharge time: 5 hours at temperature of 23°C, power OFF
Dimensions	217.5 (W) × 157 (H) × 74 (D) mm, excluding projections
Weight	Approx. 1 kg, including battery pack
